C48 Open

Layout and Specifications

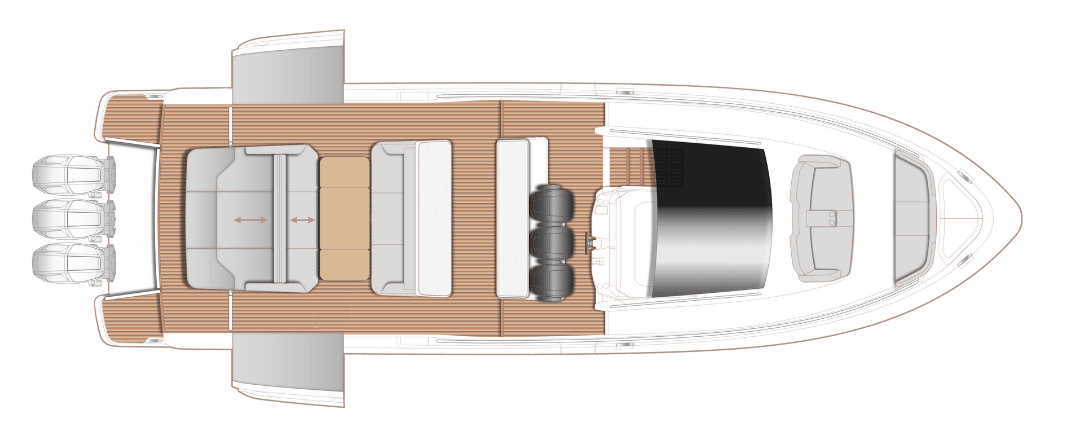

C48 Main Deck (Outboard)

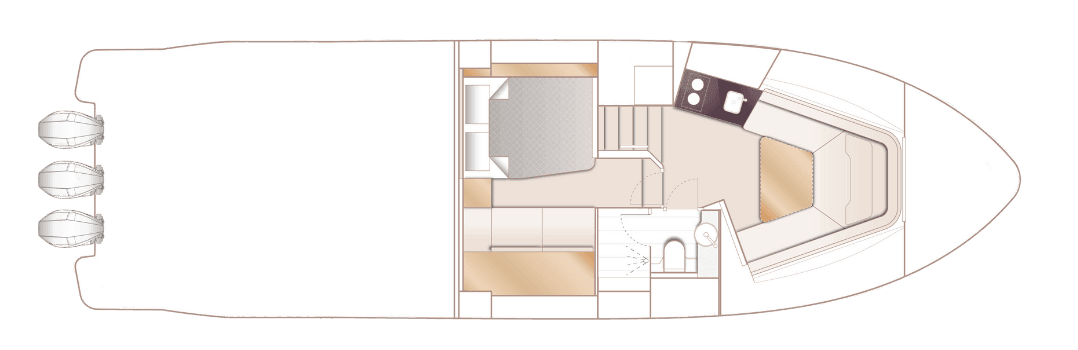

C48 Lower Deck

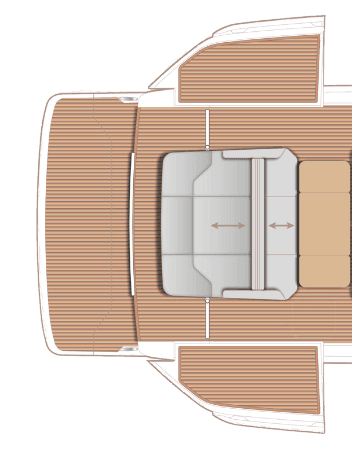

Inboard + drop balconies

Principal Dimensions Outboard

Length overall	48 ft 11 in / 14.91m
Length overall (outboards down)	50 ft 5 in / 15.38m‡
Length overall (outboards up)	52 ft 10 in / 16.11m‡
Beam	13 ft 8 in / 4.16m
Draft	4 ft 6 in / 1.36 m
Displacement approx.	13,279 kg / 29,275 lbs*
Fuel capacity	516 gal / 620 US gal / 2,346 l
Water capacity (excl. calorifier)	66 gal / 79 US gal / 300 l
Black water tank	33 gal / 40 US gal / 150 l

Engines - Petrol Outboard

Mercury V10 400HP Verado (3 x 400mhp)	Maximum speed range – 45-47 knots†
Mercury V12 600HP Verado (3 x 600mhp)	Maximum speed range – 51-53 knots†

Principal Dimensions Inboard

Length overall	48 ft 9 in / 14.85m
Beam	13 ft 8 in / 4.16m
Draft	3 ft 12 in / 1.21 m
Displacement approx.	14,010 kg / 30,887 lbs*
Fuel capacity	330 gal / 396 US gal / 1,500 l
Water capacity (excl. calorifier)	66 gal / 79 US gal / 300 l
Black water tank	33 gal / 40 US gal / 150 l

Engines - Diesel Inboard

Twin Volvo D6-480 (2 x 480mhp)

Maximum speed range – 33-35 knots†
