*C*48

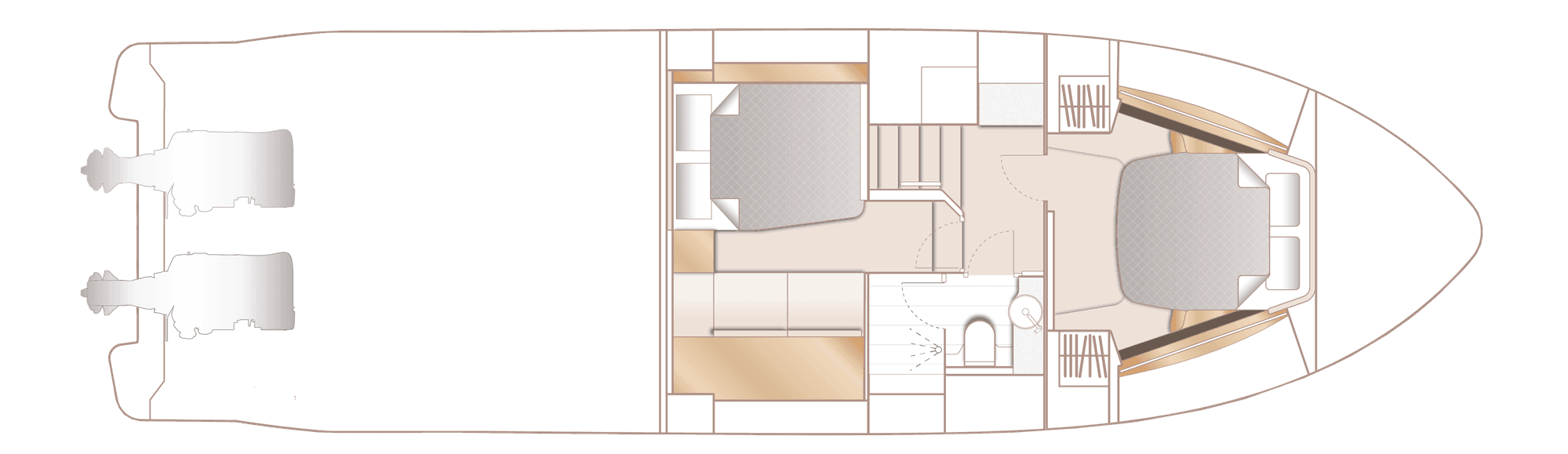

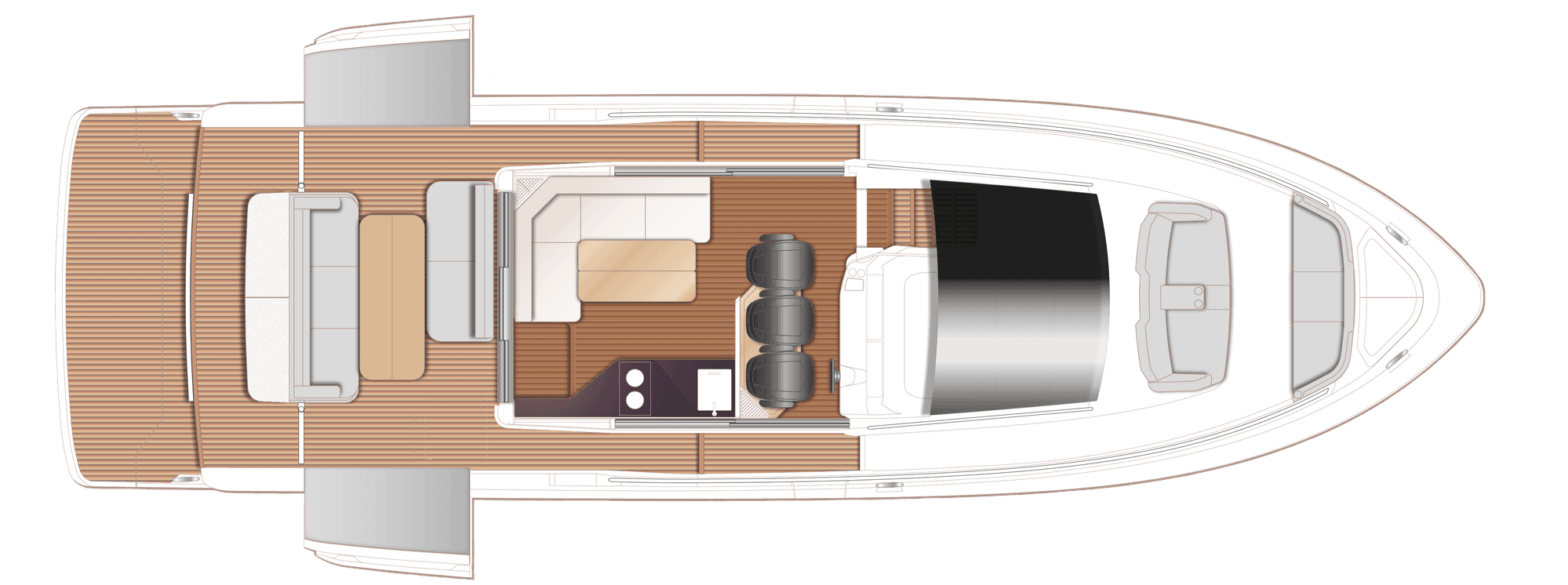

Layout and Specifications
Length overall
48 ft 11 in / 14.91m
Length overall (outboards down)
50 ft 5 in / 15.38m‡
Length overall (outboards up)
52 ft 10 in / 16.11m‡
Beam
13 ft 8 in / 4.16m
Draft
4 ft 6 in / 1.36 m
Displacement approx.
14,039 kg / 30,951 lbs*
Fuel capacity
516 gal / 620 US gal / 2,346 l
Water capacity (excl. calorifier)
66 gal / 79 US gal / 300 l
Black water tank
35 gal / 42 US gal / 160 l
Mercury V10 400HP Verado (3 x 400mhp)
Maximum speed range – 45-47 knots†
Mercury V12 600HP Verado (3 x 600mhp)
Maximum speed range – 51-53 knots†
48 ft 9 in / 14.85m
3 ft 12 in / 1.21 m
14,572 kg / 32,126 lbs*
330 gal / 396 US gal / 1,500 l
Twin Volvo D6-480 (2 x 480mhp)
Maximum speed range – 33-35 knots†
Synthetic teak-laid transom platform, transom steps, cockpit deck, and steps to side decks
Reversible electric anchor winch with foredeck and main helm controls
Self-stowing anchor system incorporating one 25kg/55lb galvanised steel anchor with flush pin shackle fitted and 40m 9.5/10mm galvanised anchor chain
Stemhead roller with automatic anchor launch and retrieve
Stainless steel bow, stern, and spring cleats
Rubbing band
Removable mast
Full set of IMO navigation lights
Lumitec Razor Light bar (3) fitted to canopy
Riding light
Twin electric horns
Fuel and water fillers (one per side)
Foredeck freshwater anchor / deck wash system
Deck hatch access to chain locker
Ensign socket
Black water holding tank dockside discharge connection
Forward facing seating area with central arm rest
Aft facing seating
Storage lockers under forward seats
Drinks holders (4)
Covers for exterior furniture
Single station instrument and controls console at helm- Single Garmin 17” MFD- Throttle - Power-assisted steering- Adjustable steering wheel- High-speed magnetic compass- Electronic engine controls- Electric anchor winch remote control- Autopilot- Speed and distance log- Echo sounder with alarm- VHF with DSC R/T with intercom- Horn button- Audible and visual alarm engine warning system- Audible and visual alarm for bilge pumps- Engine room fire extinguisher warning system- Bilge pump controls with visual pump running warnings
Triple upholstered helm seats with fore and aft adjustment to helmsman
Flip up arm rests to helmsman, port navigator, and starboard navigator seats (1 port, 1 starboard, and 2 shared)
Flip up/down bolster to helmsman, port navigator, and starboard navigator seats
Grab rails
Footrest
Console storage trays and overhead glovebox compartment
Drinks holders (2)
USB charging points (1 x USB-A and 1 x USB-C) (2)
Toughened glass screen (clear for night vision)
Windscreen wiper with freshwater windscreen wash
Exterior black mesh windscreen covers
Riding light, helm and navigation light control switches
LED overhead lighting (12V) and night lighting
Sliding doors to port and starboard side decks
Skylight to canopy roof
Pleated blinds to all windows and sliding doors (exc. windscreen)
Access stairway to lower deck

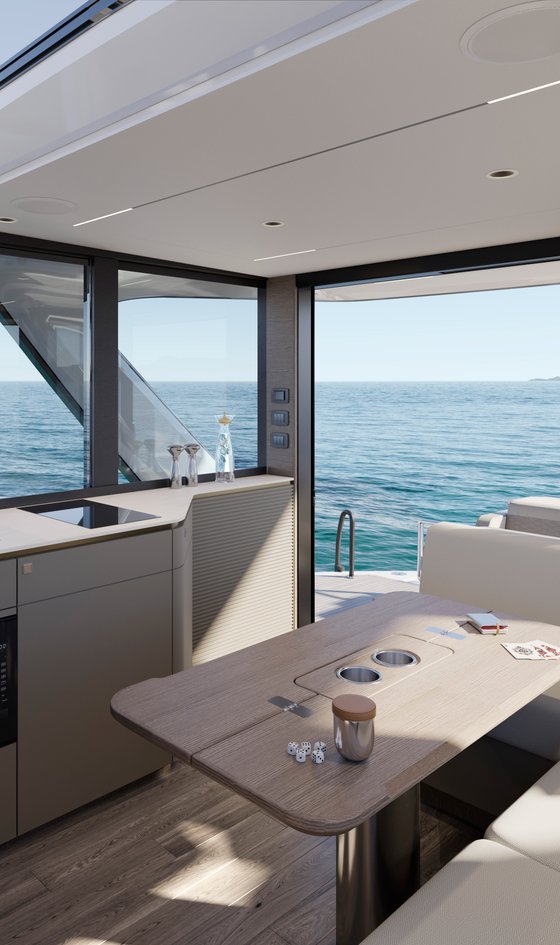

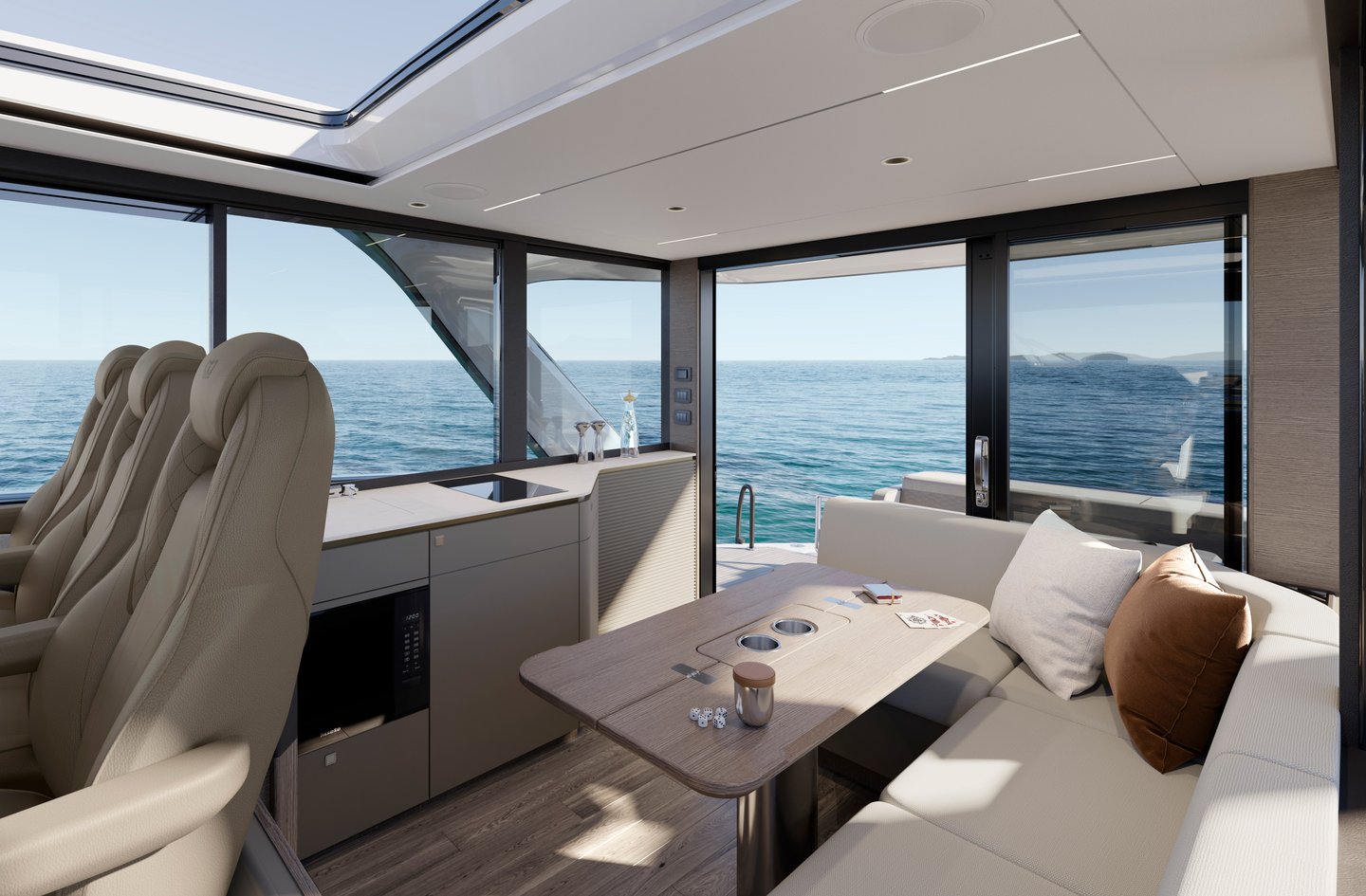

Timber floor
Port side L-shaped sofa with storage below
Folding dining table
Starboard galley featuring- Stainless steel sink with mixer tap and solid surface reversible chopping board- Waste bin- Refrigerator with freezer compartment (110 litre)- Storage
Fusion Apollo MS-RA800
Fusion 6” CL602 speakers (2)
LED overhead lighting (12V)
220/240v power outlets (2)
Tinted windows to port and starboard
Triple stainless-steel framed sliding patio door to cockpit
Pleated blinds to all windows/patio door
Aft facing, upholstered bench seat
Folding table
Forward facing bench seat with storage below
Drinks holders
Aft wetbar with insulated bin to port side and storage
Life raft storage locker under aft facing bench seat
Deck level storage locker to starboard side
Locker under aft facing bench seat containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Half-height manual drop folding seats to port and starboard side
LED overhead and deck level lighting
LED lighting to step faces
Twin transom gates to port and starboard
Hot and cold transom shower
Fixed transom platform
Swim ladder to transom platform
Aft safety railing
Splash well for outboard engines with safety railing (outboard variant only)
Lockable gas strut assisted hatch to engine room
220/240v shore support inlet in starboard side transom step
Access stairway (timber step treads)
Solid surface countertop
Storage
Skylight (tinted)
LED overhead and concealed lighting (12V)
12v and 240v electrical control panel
Large double bed with storage below
Wardrobes with shelves and hanging storage
Mirror
Storage lockers and drawers
Windows including opening portholes
Individual berth lights
220/240v outlets
Fitted carpet
Wash hand basin
Solid Surface vanity top
Shower compartment with automatic pump out
Electric freshwater toilet
Extractor fan
Window with opening porthole
Manual Venetian blind to window
240v shaver points
Bathroom accessories
Solid Surface flooring
Double berth to port side with storage drawers below
Bedside table
Seating to starboard side
Manual Venetian blinds to all windows
220/240v outlets (2)
USB charging points (4)
Fuel tank filler/s to be electrically bonded
Machinery space bulkhead integrally bonded
Machinery space lighting
Machinery space access from cockpit deck
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Outboard:
Sealed and ventilated petrol tank compartment
Power-assisted steering system
Electronic engine and gear shift controls
Active cathodic protection for outboards
Inboard:
Twin duo-prop stern drives
Engine beds integrally moulded with hull for strength and vibration absorption
Interceptors
Passive cathodic protection for sterngear
High volume air intakes
Engine room extractor fans with electronic time delay
Engines flexibly mounted
12 Volt:
4 x heavy duty auxiliary batteries
Remote battery isolator control switches at main switch panel position
Circuit breakers on all circuits
Princess Connect telemetry and maintenance system
1 x heavy duty batteries per engine for engine starting
All battery banks are charged using voltage sensitive relays that parallels battery banks when a charging source is present
50-amp 12V float battery charger
Battery link facility with remote control at helm position
220/240 Volt:
Automatic fire extinguisher situated in engine room
Polarity check system
Earth leakage safety trip
Cabins feature 220/240v power points and USB charging points
Bathroom features electric freshwater toilet and 240v shaver point
High-capacity fuel filters/water traps
Water in fuel warning sensors
Fuel fillers to port and starboard sides
Fuel tank with 2,330 litres / 512 gal / 615 US gal
Remote fuel cocks in cockpit locker
Fuel level gauges
Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 1,500 litres / 330 gal / 396 US gal capacity
Volvo fuel filters / water separator traps (one per engine) with water in fuel warning sensors
Twin water tanks giving a water capacity of 270 litres plus 30 litres hot water calorifier
Automatic water pump with filter
Water level gauge
Deck filler
Water heated by shore power only
Water heated by engines and shore power
Electric quiet flush toilet system linked to 150 litres / 33 gal / 40 US gal black water tank, content gauge and manual overboard discharge and dockside discharge system
Automatic/manual override electric bilge pumps in forward accommodation and engine room (4 total)
High-capacity manual bilge system with valve system and suction points in the same areas
Electric bilge pumps have controls and warning lights at main helm with audible alarm at helm
Automatic engine room fire extinguisher system (with manual override) and warning system at helm position providing automatic shutdown of engines and ventilation fans
Hand operated fire extinguishers (2) in lower accommodation and helm position
Individual covers to exterior furniture
Ensign staff
Fenders (6)
Mooring warps (4)
First Aid kit
Tool kit
Boat hook
Anchor winch back up handle
Owner’s manual and engine manual
Ship’s document case
Synthetic teak-laid transom platform, cockpit deck, and steps to side deck as standard
Timber-laid flooring (V-groove planked) to saloon and lower lobby
Fitted carpet to forward cabin and aft cabin
Furniture in Rovere oak satin finish as standard (Silver Oak satin finish, Ash satin finish or Walnut satin or gloss finish available as an option)
Bathroom floors in Solid Surface
Bathroom vanity tops in Solid Surface
Main deck galley and lower lobby counter tops in Solid Surface
Exterior upholstery in Comfort Exterior
Choice of high-quality carpets and upholstery fabrics from extensive range
Pleated blinds to all main deck windows and doors (exc. windscreen)
Manual Venetian blinds to all lower deck windows and portholes
