*F*54

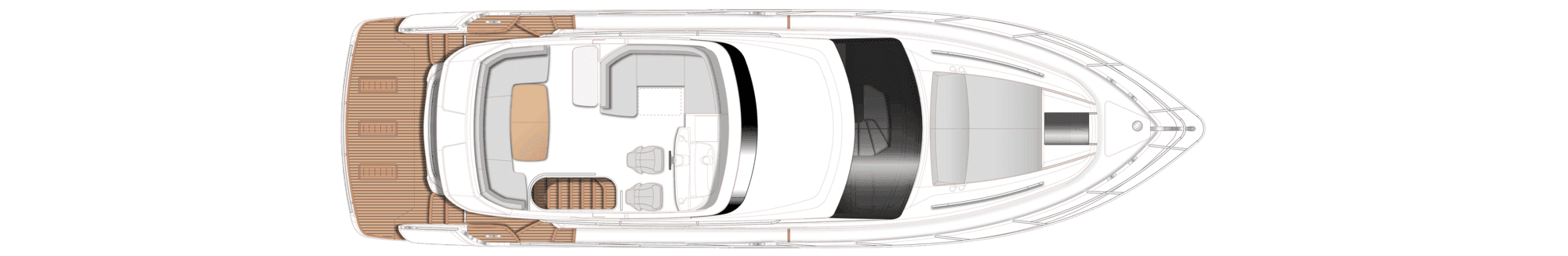

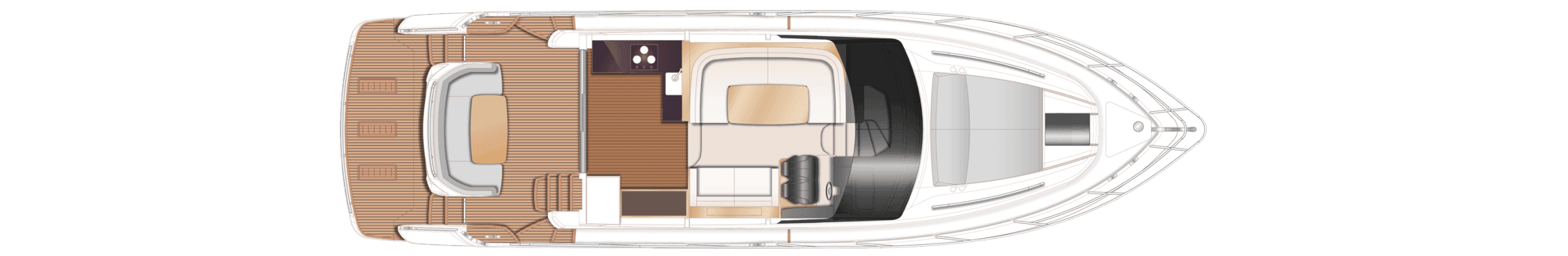

Layouts and Specifications
Length overall (incl. pulpit)
54 ft 4 in / 16.26m
Length overall (excl. pulpit)
53 ft 3 in / 16.24m
Beam
14 ft 9 in / 4.50m
Draft
4 ft 8 in / 1.41m
Displacement approx.
23,385 kg / 51,555 lbs*
Fuel capacity
462 gal / 555 US gal / 2,100 l
Water capacity (excl. calorifier)
114 gal / 137 US gal / 520 l
Black water tank
57 gal / 69 US gal / 260 l
Twin Volvo D11 725 (2x 725mhp)
Maximum speed – 27-29 knots†
Twin Volvo D13 900 (2 x 900mhp)
Maximum speed – 32-34 knots†
Deck Fittings
Teak-laid transom platform, transom steps, cockpit deck, flybridge stairway and steps to side deck
Reversible electric anchor winch with foredeck and main helm controls
Stemhead roller with automatic anchor launch and retrieve
Self-stowing anchor system incorporating one 25kg galvanised anchor with 40m of 9.5/10mm galvanised anchor chain
Deck hatch access to chain locker
Stainless steel forward fairleads (1 pair)
Stainless steel aft fairleads (1 pair)
Stainless steel bow fairleads (1 pair)
Stainless steel spring cleats, with chafing plates (1 pair)
Stainless steel stern cleats (1 pair)
Stainless steel transom cleats (1 pair)
Stainless steel pulpit and guard rails
PVC rubbing band with stainless steel insert
Illuminated crown logo on transom
Full set of IMO navigation lights
Riding light
Searchlight with remote controls
Loudhailer (connected to VHF)
Twin electric horns
Ensign socket
Fuel and water fillers (one per side)
Black water holding tank dockside discharge connection
Foredeck freshwater anchor / deck wash system in chain locker
Foredeck
Sunpad cushions
Escape hatch from forward cabin
Storage locker
Drinks holders (4)
Aft Cockpit and Bathing Platform
Self-draining
Fixed bathing platform
Upholstered U-shaped seating
Fixed teak dining table
Stainless steel handrails and aft balustrade
LED overhead and deck level lighting
LED lighting to step faces
Starboard side integral stairway to flybridge with teak-laid step treads
Access hatch to lazarette/opt. crew cabin to starboard
Lockable gas strut assisted hatch to engine room
Rope lockers to port and starboard bulwarks
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers below flybridge stairs
Life raft storage locker under cockpit seating (port side)
Twin transom gates leading to bathing platform
Hot and cold transom shower
220/240v shore support inlet
Wrap around cockpit cover
Flybridge
Dual station instrumentation and controls (see Lower Helm Position)
Power assisted electro-hydraulic steering with adjustable steering wheel
Wind deflector screens
Twin helm seats with manual fore and aft adjustment for helmsman
Audible and visual alarm for bilge pumps
Engine room fire extinguisher warning system
Clear view hatch to aft cockpit
Access stairway to aft cockpit
Stainless steel handrails
Stainless steel handrail around flybridge hatch
Forward U-shaped upholstered companion seating
Aft large U-shaped upholstered seating area
Folding teak dining table
Drink holders
Aft storage unit
Fusion MS-SRX400 audio system, paired with Fusion Signature 6.5” waterproof speakers (2)
LED deck level lighting
USB charging points
GRP radar arch
Twin matching whip aerials for VHF R/T and radio
Covers to console and exterior furniture where appropriate
Lower Helm
Twin upholstered seats with manual fore and aft adjustment for helmsman
Dual station instrument and controls console at lower helm
16” colour MFD incorporating GPS/chartplotter, log, echo-sounder
7” MFD screen displaying engine instrumentation (including fuel levels and fuel flow)
Power-assisted electro-hydraulic steering
Adjustable steering wheel
High-speed magnetic compass
Electronic engine controls
Trim tab controls with indicators
Bow thruster control
Electric anchor winch remote control
Autopilot
Speed and distance log
Echo sounder with alarm
VHF with DSC R/T with intercom
Remote control searchlight
Horn button (to operate twin electric horns)
Audible and visual alarm engine warning system
Footrest
Drink holders (2)
Glovebox to portside
Electric opening window (starboard)
Toughened glass screen (clear for night vision)
Windscreen wipers with freshwater windscreen wash
Exterior black mesh windscreen covers
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB charging points (2) (USB-A and USB-C)
LED overhead lighting (24V) and night lighting
Fitted carpet
Deck Saloon
U-shaped sofa (port)
Storage drawer under port side sofa
Coffee table
Starboard side sideboard with bottle, glassware storage, and drinks refrigerator
43” TV
Fusion MS-RA770 audio system, paired with Fusion 6” CL602 speakers (2)
Panoramic tinted toughened glass windows port and starboard
Manual Venetian blinds to all windows
LED overhead and concealed lighting (24V)
Access stairway to lower accommodation
Fitted carpet (including aft saloon steps)
Aft Galley
Galley counter top is Solid Surface (satin finish)
Bosch 4-zone ceramic hob
Hob extractor fan
Twin top lockers
Bosch combination microwave/convection oven with grill
Full height fridge/freezer
Sink is stainless steel with mixer tap
Chopping board in solid surface with cutting surface on underside
Waste bin
Drawers and storage cupboards
Top loading storage bin to corner of galley (lid is flush with countertop)
Manual Venetian blinds to windows
LED overhead lighting (24V)
220/240v power outlets (2)
Timber-laid flooring (V-groove planked)
Aft Dinette
Upholstered L-shaped sofa with storage drawers below (including dedicated crockery storage)
Folding table
Triple stainless-steel framed sliding door to cockpit
220/240v power outlets
Owner’s Stateroom
Large double bed with bedside tables and drawers below
Two-seater sofa to port
Wardrobe to starboard
Mirror
Sideboard unit
Panoramic windows including opening portholes
Individual berth lights
220/240v outlets
En-Suite Bathroom
Wash hand basin with Solid Surface vanity top
Storage lockers
Shower compartment with automatic pump out
Electric freshwater toilet
Extractor fan
Window with opening porthole
Manual Venetian blind to window
240v shaver points
Bathroom accessories (toilet roll holder, toilet brush/holder)
Solid Surface flooring
Forward Stateroom
Large double bed with drawers below
Storage lockers and drawers
Vanity to portside
Windows with opening portholes
Manual Venetian blind to all windows
Deck escape hatch
En-Suite/Day Head
Accessible from both the lobby/passage way and forward stateroom
Starboard Guest Cabin
Two single beds with storage below
Bedside table
Wardrobe
Top lockers
220/240v outlet
Lower Lobby / Passageway Area
Storage for laundry equipment under passageway stairs (accessed via the owner’s stateroom)
LED Overhead Lighting (24V)
Starboard Side Lazarette
Forward athwartships bulkhead
Starboard divisional bulkhead
Deck access hatch with ladder
LED overhead lighting
Power And Drive Systems
Propeller shafts
5-bladed propellers in nickel aluminium bronze
High speed balanced rudders
Power-assisted steering system
Bowthruster (130kgF)
Trim tabs with indicators
Cathodic protection for sterngear
Sterngear, engines, fuel tank fillers, etc all electrically bonded
Forward and aft engine room bulkheads and engine room headlining to be integrally bonded
High volume air intakes
Engine room extractor fan with electronic time delay
Engine exhaust silencers and water-cooled exhausts
Engines flexibly mounted
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Engine room lighting
Engine room access hatch and ladder
Electronic engine and gear shift controls
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical Systems
24 Volt:
4 x heavy duty batteries for engine starting
4 x heavy duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
40-amp 24v float battery charger
Remote battery isolator control switches at main switch panel position
Circuit breakers on all circuits
12v voltage dropper/converters for certain navigation and radio circuits
Princess Connect telemetry and maintenance system
220/240 Volt:
European specification: 11 kW @ 50Hz diesel generator, in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel
Automatic fire extinguisher situated in engine room
Shore power/generator change over control operated from main control panel
Polarity check system
Earth leakage safety trip
All cabins feature 220/240v power points and USB charging points
All bathrooms feature electric freshwater toilets and 240v shaver points
Fuel System
Twin fuel tanks in NS8 marine grade alloy with interconnection system 462 gal / 555 US gal / 2100 l capacity
Fuel fillers to port and starboard decks
High-capacity duplex fuel filters/water traps with integral changeover valves
Water warning sensors connected to warning lights at main helm position
Remote fuel isolation controls in cockpit locker for main engines and generator
Fuel gauges displayed on MFDs at both helm consoles
Water System
Water tanks giving a water capacity (excl. calorifier) of 114 gal / 137 US gal / 520 l capacity plus 73 litres hot water calorifier
Water heated by engines and 3kW immersion heater
Automatic water pump with filter
Main circuit breaker at main switch panel
Water level gauge
Deck filler
Electric quiet flush toilet system linked to 57 gal / 69 US gal / 260 l black water tank, content gauge and manual overboard discharge, with macerator backup system as well as dockside discharge system
Bilge Pumps
Automatic/manual override electric bilge pumps in engine room (2) and forward accommodation (2) (4 in total)
High-capacity manual bilge system with valve system and suction points in the same areas
Electric bilge pumps have controls and warning lights at main helm with audible alarm at flybridge helm
Extinguishers / Fire Control Systems
Automatic engine room fire extinguisher system (with manual override) and warning system at main and flybridge helm positions providing automatic shutdown of engines, generators and ventilation fans
Automatic fire extinguisher system under main helm
Hand operated fire extinguishers (5) in owner’s stateroom, forward and starboard guest cabin, galley and main helm position
Additional extinguisher fitted when optional crew cabin is specified
Other Standard Equipment
Ensign staff
Fenders (6)
Mooring warps (4)
Tool kit
Boat hook
Anchor winch back up handle
First Aid kit
Bed covers supplied to all cabins (except optional crew cabin)
Owner’s manual and engine manual
Ship’s document case
Finishes
Timber-laid flooring (V-groove planked) to galley and aft dinette
Furniture in Rovere oak satin finish as standard (Silver Oak satin finish, Ash satin finish or Walnut satin or gloss finish available as an option)
Solid Surface floors in all bathroom suites in guest accommodation
Solid Surface vanity tops in all bathroom suites in guest accommodation
Galley counter top in Solid Surface
Exterior upholstery in white vinyl as standard, with optional upgrade to Comfort Exterior available
Choice of high-quality carpets and upholstery fabrics from extensive range
Manual Venetian blinds to all windows and portholes (except crew porthole)
