Layouts and Specification
Length overall (incl. pulpit)
59 ft 8 in / 18.20m
Length overall (excl. pulpit)
58 ft 4 in / 17.77m
Beam
16 ft 1 in / 4.90m
Draft
5 ft 0 in / 1.53m
Displacement approx.
32,318 kg / 71,248 lbs*
Fuel capacity
726 gal / 872 US gal / 3,300 l
Water capacity (excl. calorifier)
139 gal / 166 US gal / 630 l
Black water tank
69 gal / 83 US gal / 315 l
Twin MAN V8-1000 (2 x 1,000mhp)
Maximum speed range – 29-31 knots†
Twin MAN V8-1200 (2 x 1,200mhp)
Maximum speed range – 33-35 knots†
Deck fittings
Teak-laid transom platform, transom steps, cockpit deck, flybridge stairway and steps to side deck
Reversible electric anchor winch with foredeck and main helm controls
Stemhead roller with automatic anchor launch and retrieve
Self-stowing anchor system incorporating one 32kg galvanised Lewmar Delta anchor with 40m of 9.5mm galvanised anchor chain
Deck hatch access to chain locker – 2 lockers forward
Stainless steel fairleads, with chafing plates (1 pair)
Stainless steel bow, stern and spring cleats, with chafing plates (4 pairs)
Stainless steel pulpit and guard rails
PVC rubbing band with stainless steel insert
LED deck level lighting
Illuminated crown logo on transom
Full set of IMO navigation lights
Riding light
Searchlight with remote controls
Loudhailer (connected to VHF)
Twin electric horns
Ensign socket
Fuel and water fillers (one per side)
Black water holding tank dockside discharge connection
Foredeck escape hatch
Foredeck seating area with fender storage and drink holders (2)
Foredeck sunbathing area incorporating fixed twin sunpads with integrated storage and drink holders (4)
Foredeck sunpad covers
Portside fender storage locker
Cockpit and bathing platform
Self-draining
Fixed bathing platform
Upholstered U-shaped seating
Folding teak dining table with cup holders (4)
Stainless steel handrails
LED overhead and deck level lighting
Integral stairway to flybridge with teak-laid step treads
LED lighting to step faces
Life raft storage locker under flybridge stairs
Rope storage
Lockable gas strut assisted hatch to lazarette/engine room
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Transom top locker
Twin transom gates leading to bathing platform
Hot and cold flatwash transom shower
220/240v shore support inlet
Cockpit cover

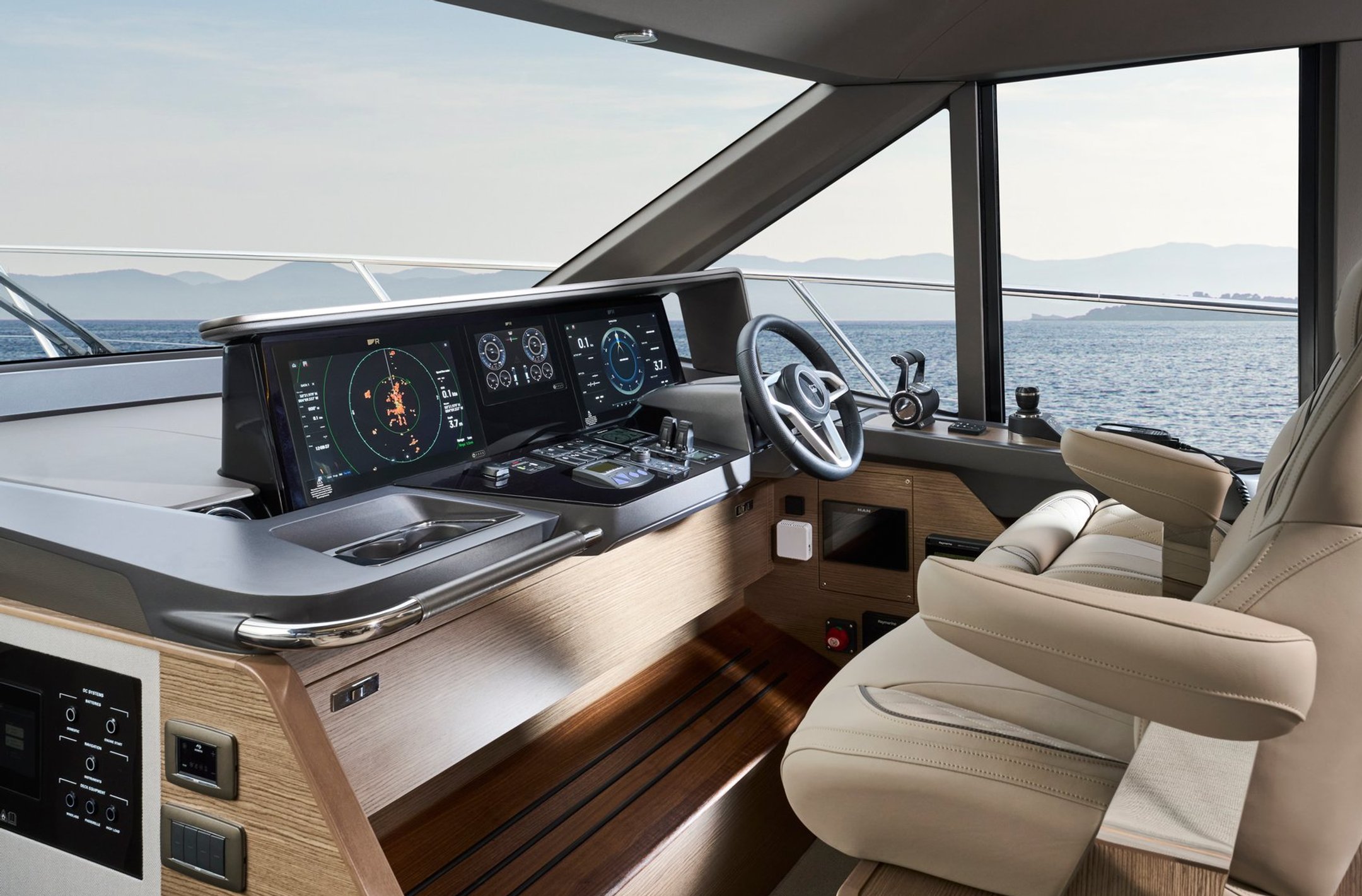

Lower helm
Twin leather upholstered manual seat with fore and aft adjustment for helmsman
Instrument console with controls incorporating engine instruments and fuel gauges
Dual station instrument and controls console at lower helm- 16” colour MFD incorporating GPS/chartplotter, log, echo-sounder- 9” MFD screen displaying engine instrumentation (including fuel levels and fuel flow)- Power-assisted electro-hydraulic steering- Adjustable steering wheel- High-speed magnetic compass- Electronic engine controls- Trim tab controls with indicators- Bow thruster control- Electric anchor winch remote control- Autopilot- Speed and distance log- Echo sounder with alarm- VHF with DSC R/T with intercom- Remote control searchlight- Horn button (to operate twin electric horns)- Audible and visual alarm engine warning system- Audible and visual alarm for bilge pumps- Engine room fire extinguisher warning system- Footrest
Drink holders (3)
Electric drop window (starboard)
Toughened glass screen (clear for night vision)
Windscreen wipers with freshwater windscreen wash
Glove box to portside dash
Exterior black mesh windscreen covers
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB charging points (2) (USB-A and USB-C)
LED overhead lighting (24v) and night lighting
Fitted carpet
Flybridge
Dual station instrumentation and controls (see Lower Helm Position)
Power assisted electro-hydraulic steering with adjustable steering wheel
Wind deflector screens
Twin manual helm seats with fore and aft adjustment for helmsman
Audible and visual alarm for bilge pumps
Engine room fire extinguisher warning system
Clear view hatch to aft cockpit
Access stairway to aft cockpit
Stainless steel handrail around flybridge hatch
Top loading cool box in navigators pedestal moulding
Small U-shaped seat (starboard), with conversion to sunpad
U-shaped upholstered seating area (starboard)
Drink holders (8)
Folding teak table with drink holders (4)
Servery with sink, storage, electric barbecue and bin
Fusion MS-SRX400 audio system, paired with Fusion Signature 7.7” waterproof speakers (2)
USB-A charging points (2)
GRP radar arch
Twin matching whip aerials for VHF R/T and radio
Covers to console and exterior furniture where appropriate
Deck saloon
U-shaped sofa (port) with storage drawers below
Coffee table
Electric drop window (port)
Crockery storage drawer
Sideboard unit with bottle and glass storage and refrigerator
50” LED TV on rise and fall
Fusion MS-RA770 audio system, paired with Focal 100 ICW6 speakers (2)
Panoramic tinted toughened glass windows port and starboard
Manual Venetian blinds to all windows
LED overhead and concealed lighting (24v)
Access stairway to lower accommodation
Dining area
L-shape sofa to starboard
Folding dining table
Stainless steel framed sliding door to cockpit. Three panes with integrated hinging window aft of galley (one fixed pane, two sliding panes, one flip up window)
220/240v power outlets (1)
LED overhead and concealed (24v)
Manual Venetian blinds to windows
Manual blind to door
Galley
Galley counter top is Solid Surface in White (satin finish)
4-zone ceramic hob
Hob extractor fan
Twin top lockers
Combination microwave/convection oven with grill
Full height fridge/freezer (270l)
Sink is stainless steel with mixer tap
Waste bin
Drawers and storage cupboards
Corner galley storage bin (top loading) with work top lid
220/240v power outlets (4)
Timber-laid flooring (V-groove planked)
Accommodation
All cabins and bathrooms feature opening portholes
All cabins feature 220/240v power points and USB charging points
All bathrooms feature electric freshwater toilets and 240v shaver points
Owner’s stateroom
Large double bed with bedside tables and drawers below
Two-seater sofa to port, with cupboard storage
Walk-in wardrobe to starboard with shelves and mirror
Sideboard unit to starboard
Pull out mirror to vanity draw in sideboard unit
Fusion Apollo MS-RA670 audio system paired with Focal 100 ICW6 speakers (2)
Panoramic windows including opening portholes
Individual berth lights
220/240v outlets (2)
USB charging points (4) (2x USB-A and 2x USB-C)
En-suite bathroom
Solid Surface vanity top and thermoformed sink
Mirror with medicine cabinet unit
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Window with opening porthole
Manual Venetian blind to window
Bathroom accessories (toilet roll holder, toilet brush and holder, soap dispenser, toothbrush tumbler and robe hooks)
Solid Surface flooring
Forward cabin
Large double bed with drawers below
Half height mirror above sideliner, with storage behind (port)
Wardrobe with shelves and mirror
Top lockers
Windows with opening portholes
Manual Venetian blind to all windows
Deck escape hatch
USB charging points (4) – two per side (2x USB-A and 2x USB-C)
Accessible from both the lobby/passage way and forward cabin
Mirror with storage
Starboard guest cabin
Two single beds with drawers below
Bedside table
Window with opening portholes
220/240v outlet (1)
Lower lobby / passageway area
Storage for detergent and laundry equipment
Under-stair storage locker
Double height storage locker
LED overhead lighting (24v)
Power and drive systems
Propeller shafts in Marinemet
5-bladed propellers in nickel aluminium bronze
Bow thruster 170kgF with dual-station controls
High speed balanced rudders
Power-assisted steering system
Trim tabs with indicators
Cathodic protection for sterngear
Sterngear, engines, fuel tank fillers, etc all electrically bonded
Forward and aft engine room bulkheads and engine room headlining to be integrally bonded including insulation with acoustafoam layers
High volume air intakes
Engine room extractor fan with electronic time delay
Engine exhaust silencers and water-cooled exhausts
Engine beds integrally moulded with hull for strength and vibration absorption
Engines flexibly mounted
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Engine room lighting
Engine room access hatch and ladder
Electronic engine and gear shift controls
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical systems
24 Volt:
4 x heavy duty batteries for engine starting
4 x heavy duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
60-amp 24v float battery charger
Remote battery isolator control switches at main switch panel position
Circuit breakers on all circuits
12v voltage dropper/converters for certain navigation and radio circuits
Princess Connect telemetry and maintenance system
220/240 Volt:
European specification: 11kW @ 50Hz diesel generator, in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel
USA specification: 11.5kW @ 60Hz diesel generator in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel
Automatic fire extinguisher situated in engine room
Shore power/generator change over control operated from main control panel
Polarity check system
Earth leakage safety trip
Fuel system
Twin fuel tanks in NS8 marine grade alloy with interconnection system 726 gal / 872 US gal / 3300 l capacity
Fuel fillers to port and starboard decks
High capacity duplex fuel filters/water traps with integral changeover valves
Water warning sensors connected to warning lights at main helm position
Remote fuel isolation controls in cockpit locker for main engines and generator
Fuel gauges displayed on MFDs at both helm consoles
Water system
Water tanks giving a water capacity (excl. calorifier) of 139 gal / 166 US gal / 630 l capacity plus 73 litres hot water calorifier
Water heated by engines and 3kW immersion heater
Automatic water pump with filter
Main circuit breaker at main switch panel
Water level gauge
Deck filler
Electric quiet flush toilet system linked to 69 gal / 83 US gal / 315 l black water tank, content gauge and manual overboard discharge, with macerator backup system as well as dockside discharge system
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2), lazarette (2) and forward accommodation (6 in total)
High capacity manual bilge system with valve system and suction points in the same areas
Electric bilge pumps have controls and warning lights at main helm with audible alarm at flybridge helm
Extinguishers / fire control systems
Automatic engine room fire extinguisher system (with manual override) and warning system at main and flybridge helm positions providing automatic shutdown of engines, generators and ventilation fans
Automatic fire extinguisher system under main helm
Hand operated fire extinguishers (5) in owner’s stateroom, forward and starboard guest cabin, galley and main helm position
Additional extinguisher fitted when optional crew cabin is specified
Other standard equipment
Ensign staff
Fenders (6)
Mooring warps (4)
Tool kit
Boat hook
Anchor winch back up handle
First Aid kit
Bed covers supplied to all cabins (except optional crew cabin)
Owner’s manual and engine manual
Ship’s document case
Finishes
Timber-laid flooring (V-groove planked) to galley
Furniture in Rovere oak satin finish as standard (Silver oak satin finish, Ash satin finish or Walnut in satin or gloss finish available as an option)
Solid Surface floors in all bathroom suites in guest accommodation
Solid Surface wash basin vanity tops in all bathroom suites in guest accommodation
Galley counter top in Solid Surface
Exterior upholstery in white vinyl as standard, with optional upgrade to Comfort Exterior available
Choice of high-quality carpets and upholstery fabrics from extensive range
Manual blinds to all windows and portholes (except crew porthole)
Optional crew cabin to have furniture in specified boat timber with fitted carpet. Crew bathrooms have Solid Surface vanity tops and GRP floors with tracking
