V50 Open

Layout and Specifications

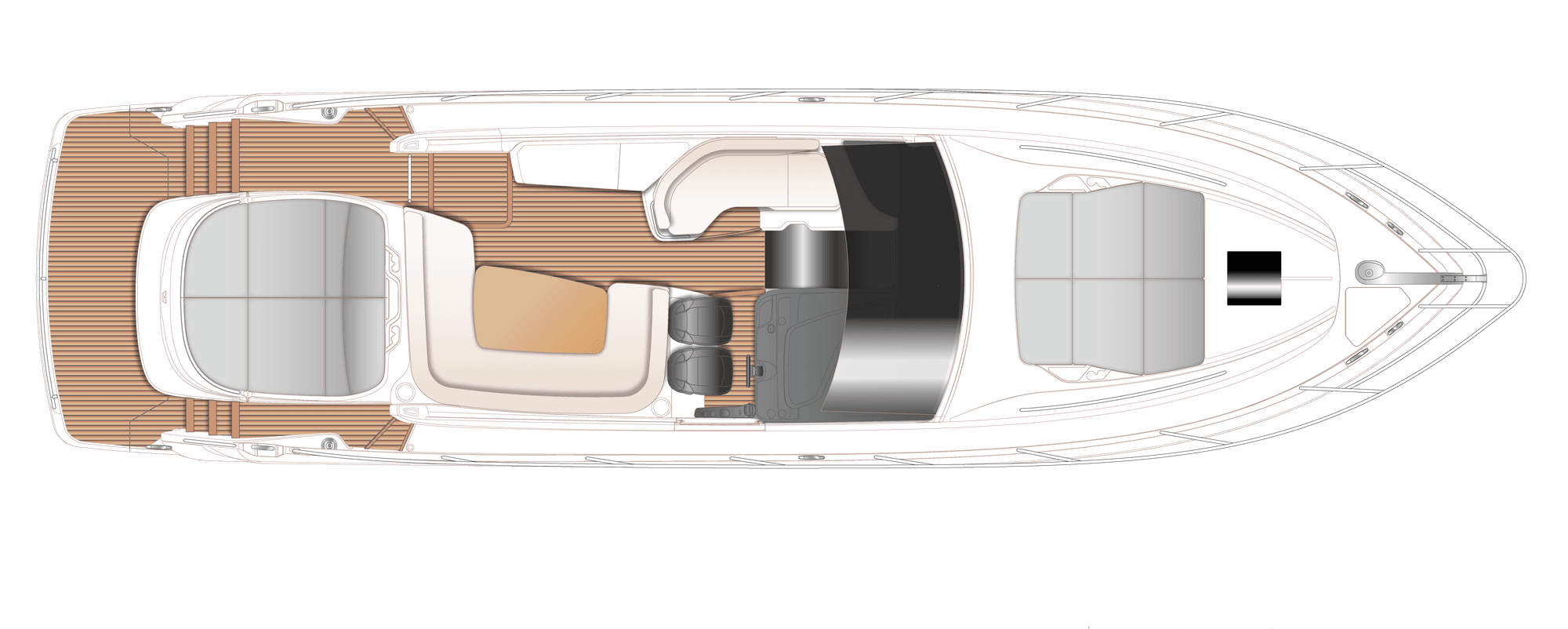

V50 Main Deck

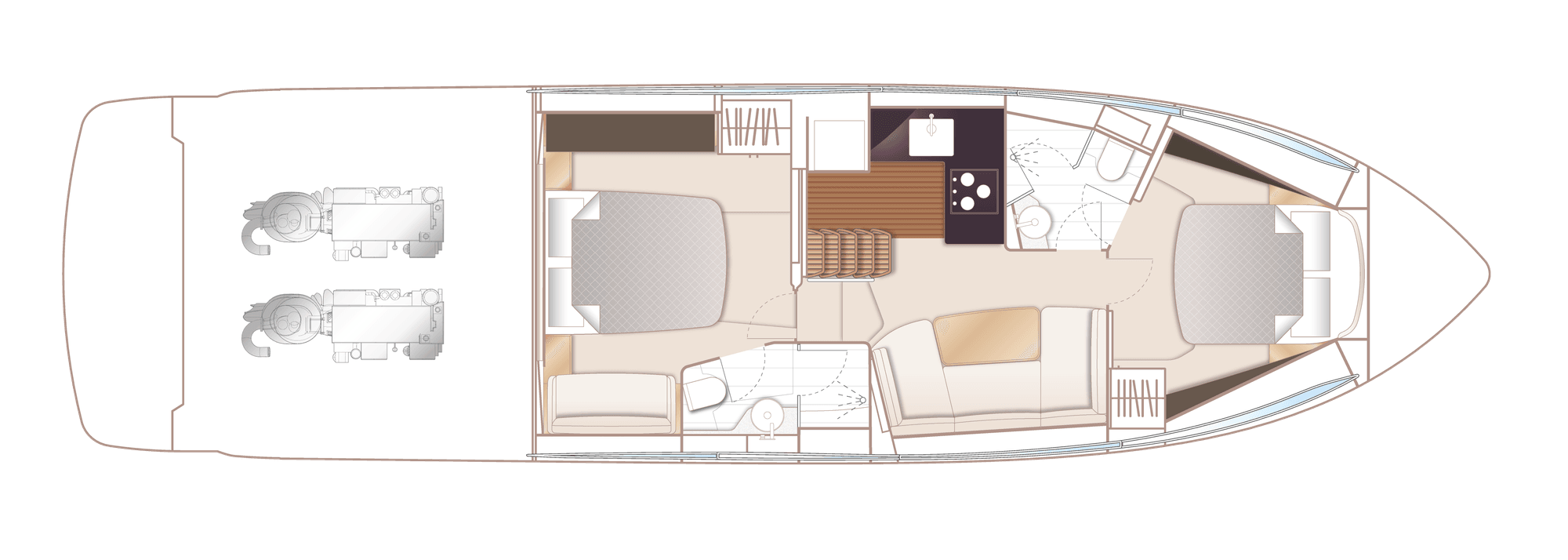

V50 Lower Deck

Principal Dimensions

Length overall (incl. pulpit)	52 ft 7 in / 16.02m
Length overall (excl. pulpit)	50 ft 4 in / 15.35m
Beam	13 ft 4 in / 4.08m
Draft	3 ft 8 in / 1.11m
Displacement approx.	17,781 kg / 39,200 lbs*
Fuel capacity	341 gal / 410 US gal / 1,550 l
Water capacity (excl. calorifier)	76 gal / 91 US gal / 345 l
Black water tank	37 gal / 44 US gal / 170 l

Engines - Diesel

Twin Volvo IPS 650 (2 x 480mhp)

Maximum speed range – 28-30 knots†

Full Specification

Deck fittings

6mm teak-laid transom platform, cockpit deck and steps to side deck

Lewmar Reversible electric anchor winch with foredeck and helm position controls

Self-stowing anchor system incorporating one 20kg/44lb Lewmar Delta galvanised steel anchor with flush pin shackle fitted and 40m galvanised 9.5mm chain

Stemhead roller with automatic anchor launch and retrieve

Stainless-steel bow, stern and spring cleats

Stainless-steel bow fairleads

Stainless-steel pulpit and guardrails

Stainless-steel coach roof handrails

PVC rubbing band with stainless-steel insert

Illuminated crown logo to transom

Full set of IMCO navigation lights

Riding light

Remote control searchlight

Single electric horn

Fuel and water fillers

Holding tank dockside discharge connection

Deck hatch access to chain locker with fender stowage rack

Foredeck escape hatch

Foredeck drinks holders (4)

Ensign socket

Cockpit and bathing platform

Self-draining

Upholstered U-shaped seating/dining area

Fixed teak dining table

LED overhead (dimmable) and deck level lighting

Cockpit cover

Stainless-steel handrails

Wet bar with sink, storage, refrigerated coolbox

Lockable access hatch to engine room

220/240v shore support inlet in locker

Life raft stowage locker

Transom platform with integrated swimming ladder (with electro-hydraulic raise/lower mechanism)

Transom steps to access stern from bathing platform when in lowered position

Aft sunbed with drinks holders (4)

Tender garage with electro-hydraulic door and electric winch for tender up to 3.25m

Transom door leading to bathing platform

New style hot and cold transom shower

Storage lockers

Waterproof speakers linked to saloon Fusion Apollo MS-RA670 sound system

Fender stowage rack in engine room/lazarette

Cockpit locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguisher

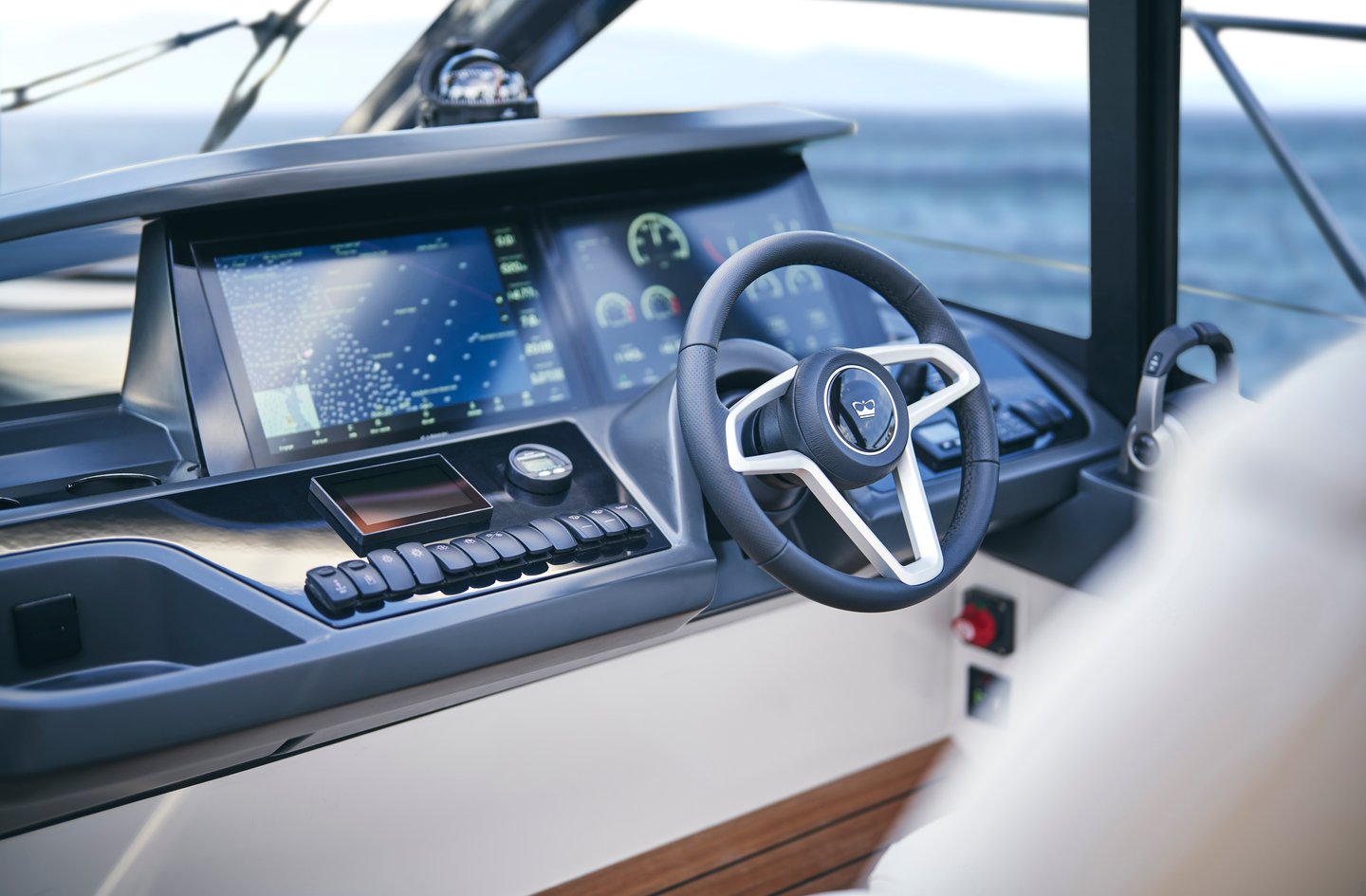

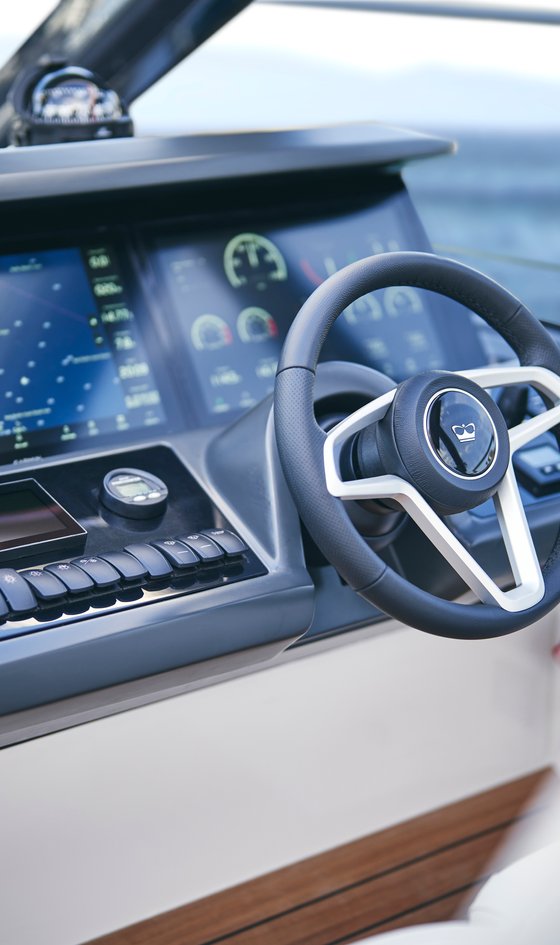

Helm

Twin upholstered seats, manually adjustable helm seat (fore/aft) with sit/stand facility, fixed position navigator seat

J-shaped companionway seating with drinks holders (2)

Instrument console incorporating engine instruments and fuel gauges

Instruments and controls at helm position include:
- Power-assisted steering
- Adjustable steering wheel
- High speed magnetic compass
- Electronic engine controls with integrated trim control
- Joystick manoeuvring control
- Electric anchor winch with remote control
- Volvo/Garmin 16” MFD, incorporating GPS chart plotter, engine instrumentation, alarm warning system, autopilot control, fuel gauges, speed and distance log, echo sounder & steering angle indicator
- VHF with DSC R/T with intercom
- Single remote-control searchlight
- Horn button to operate single electric horn

Twin windscreen wipers

Windscreen freshwater pressure wash

Bilge pump controls with audible and visual alarm for bilge pumps (3)

Electric drop window to starboard side

Engine room fire extinguisher warning system

Drinks holder (2) at console, with additional drink holder (1) at base of navigator seat

Toughened un-tinted glass screen

Black mesh sunscreens for exterior use

USB charging points

Riding light, helm and nav light control switches

6mm teak-laid flooring

Power-assisted steering

Adjustable steering wheel

High speed magnetic compass

Electronic engine controls with integrated trim control

Joystick manoeuvring control

Electric anchor winch with remote control

Volvo/Garmin 16” MFD, incorporating GPS chart plotter, engine instrumentation, alarm warning system, autopilot control, fuel gauges, speed and distance log, echo sounder & steering angle indicator

VHF with DSC R/T with intercom

Single remote-control searchlight

Horn button to operate single electric horn

Lower saloon

U-shaped sofa with single drawer and top loading storage (top loading storage is occupied by A/C unit when option is specified)

Table

Storage lockers

LED overhead downlighters

24/240v main electrical control panel with battery isolation switches

Skylight

Fusion Apollo MS-RA670 audio unit (with external USB connection) with Fusion 6” CL602 (2) speakers

Window with opening portlight (1)

Manual tension venetian blinds

Thermal heat alarm

220/240v outlets (1)

USB charging points (2)

Galley

White Solid Surface worktop

2 zone ceramic hob

White Solid Surface sink with Monobloc mixer tap (sink remains White Solid Surface for all options)

Combination microwave/convection oven with grill

Full height 270lt fridge/freezer

Waste bin

High/low storage cupboards, drawers and lockers

Timber-laid flooring

Under floor storage bin

Window with opening portlight

Manual tension venetian blind

Hob extractor fan

Cutlery and crockery storage

Chopping board

220/240v power outlets (4)

LED overhead task lighting (24v), concealed light and night lighting

Storage bin under galley sole

Accommodation

All cabins and bathrooms feature opening portholes

All cabins feature 220/240v power points

All bathrooms feature electric freshwater toilets and 240v shaver points

Owner’s stateroom

Large double bed with bedside tables drawers below

Wardrobe with shelves and full-length mirror

Drawers and storage lockers

Sideboard

LED overhead and individual berth lights (24v)

Starboard side sofa

Panoramic windows in toughened glass with opening ports

Manual tension venetian blinds

Fitted carpet

220/240v outlets (2)

USB charging points (4)

En-suite bathroom

Solid Surface worktop

Wash basin with Monobloc mixer tap

Separate stall shower with extractor fan and auto pump out

Mirror

LED overhead and concealed lighting (24v)

Storage locker

Windows with opening portlight

Manual tension venetian blind

Solid Surface flooring

Bathroom accessories

220/240v shaver socket

Forward stateroom

Large double bed with drawers below (option of scissor berths)

Wardrobe with full length mirror

Deck hatch

Storage lockers

LED overhead (24v)

Window with opening portlights

Manual tension venetian blinds

220/240v outlets (1)

USB charging points (2)

Fitted carpets

En-suite bathroom

Solid Surface worktop

Wash basin with Monobloc mixer tap

Separate stall shower with extractor fan and automatic pump out

Mirror

LED overhead and concealed lighting (24v)

Storage locker

Window with opening portlight

Manual tension venetian blinds

Solid Surface flooring

Bathroom accessories

220/240v shaver socket

Power and drive systems

Twin Volvo IPS engines (driving contra rotating propellers via pod drive)

Power-assisted steering (electrical)

Electronic engine controls

Joystick manoeuvring system

Volvo active corrosion protection system for pod drive

Engine room extractor fans with electronic time delay

Volvo interceptor trim system integrated into Volvo engine system (integrated into Volvo/Garmin display)

Engine room lighting

Access from cockpit hatch

Fresh water supply point in engine room

High volume air intakes

Engine beds integrally moulded with hull for strength and vibration absorption

Bulkheads integrally bonded

Engines flexibly mounted

Automatic fire extinguisher with remote override

Automatic/manual bilge pumps

Electrical systems24 Volt:

4 x heavy-duty batteries for engine starting

4 x heavy-duty auxiliary batteries

Engine alternators charge via split charge relays to isolate engine start batteries from auxiliaries and ensure efficient charging of both battery banks.

40-amp 24v float battery charger

Battery paralleling system (for engine start back-up)

Remote battery master switches with control switch at main panel

Circuit breakers on all circuits

Galvanic isolation system

12v voltage dropper for certain navigation and radio circuits

Princess Connect telemetry and maintenance system

220/240 Volt:

Automatic fire extinguisher situated by generator

Shore support inlet (32A)

Power points in owner’s stateroom, forward guest cabin, galley and lower saloon

Generator/ shore support change-over switch

Polarity check system

Earth leakage safety trip

Shaver points in both bathrooms

4kW generator

12v battery charger

Fuel system

Twin fuel tanks (in NS8 marine grade alloy) with interconnection system

Fuel fillers on both side decks

High-capacity duplex fuel filters with water traps with change-over valves, water contamination warning integrated into Volvo/Garmin display (integrated into Volvo/Garmin display)

Remote fuel cocks in cockpit locker for main engines and generator

Fuel gauges integrated into Volvo/Garmin display

WATER SYSTEM

Water capacity totalling 80 gal / 96 US gal / 364 l plus 11 gal / 13 US gal / 50 l hot water calorifier

Water heated by engine and 240v immersion heater

Automatic water pump with filter

Pump main circuit breaker at AC/DC switch panel

Water level gauge

Deck filler

Electric quiet flush freshwater WC system with holding tank, content gauge and low noise manual overboard discharge, as well as dockside discharge

Fire extinguishers

Automatic fire extinguisher in engine room and generator space

Hand-operated fire extinguishers (4) in: owner’s stateroom, forward guest cabin, galley & upper saloon

Bilge pumps

Automatic electric bilge pumps with manual override (3 in all)

High-capacity manual bilge pump in cockpit locker with valve system and suction points in engine room and accommodation space

Electric bilge pumps to have controls, warning lights with audible alarm and “pump out” isolation at helm

Other standard equipment

Fenders (6)

Mooring warps (4)

Ensign staff

First aid kit

Boathook

Functional fitted bed covers as standard for both cabins

Tool kit

Owner’s manual and engine manual

Anchor winch backup handle

Ships document case

Finishes

Furniture finished in a choice of Rovere Oak and Alba Oak in satin finish as standard. Silver Oak or Walnut in satin or gloss finish available as an option

Galley countertops in Solid Surface

Galley units and under stair storage in matte Taupe Grey HPL

Timber-laid floors to galley, saloon & helm

Bathroom vanity tops in Solid Surface

Bathroom floors in Solid Surface

Venetian blinds to all windows and portholes

Choice of high-quality carpets and upholstery from extensive range
