V40

Layout and Specifications

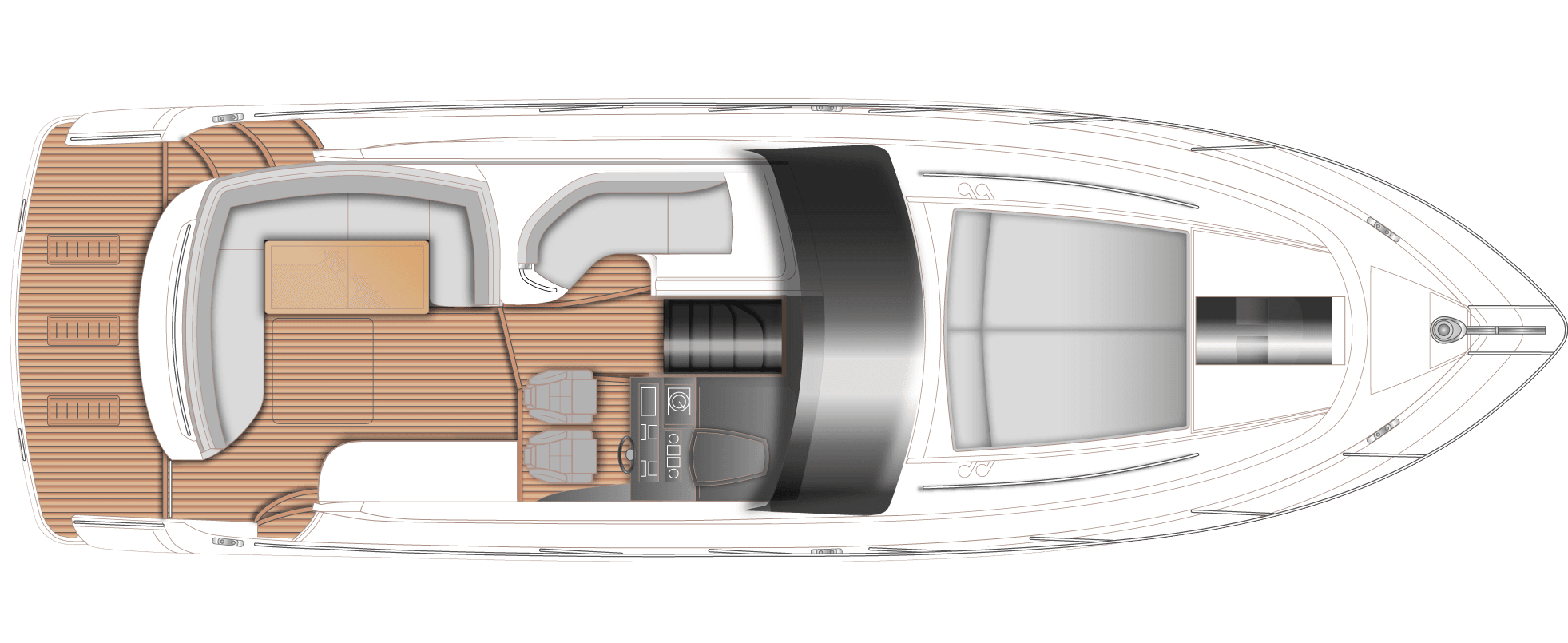

V40 Main Deck

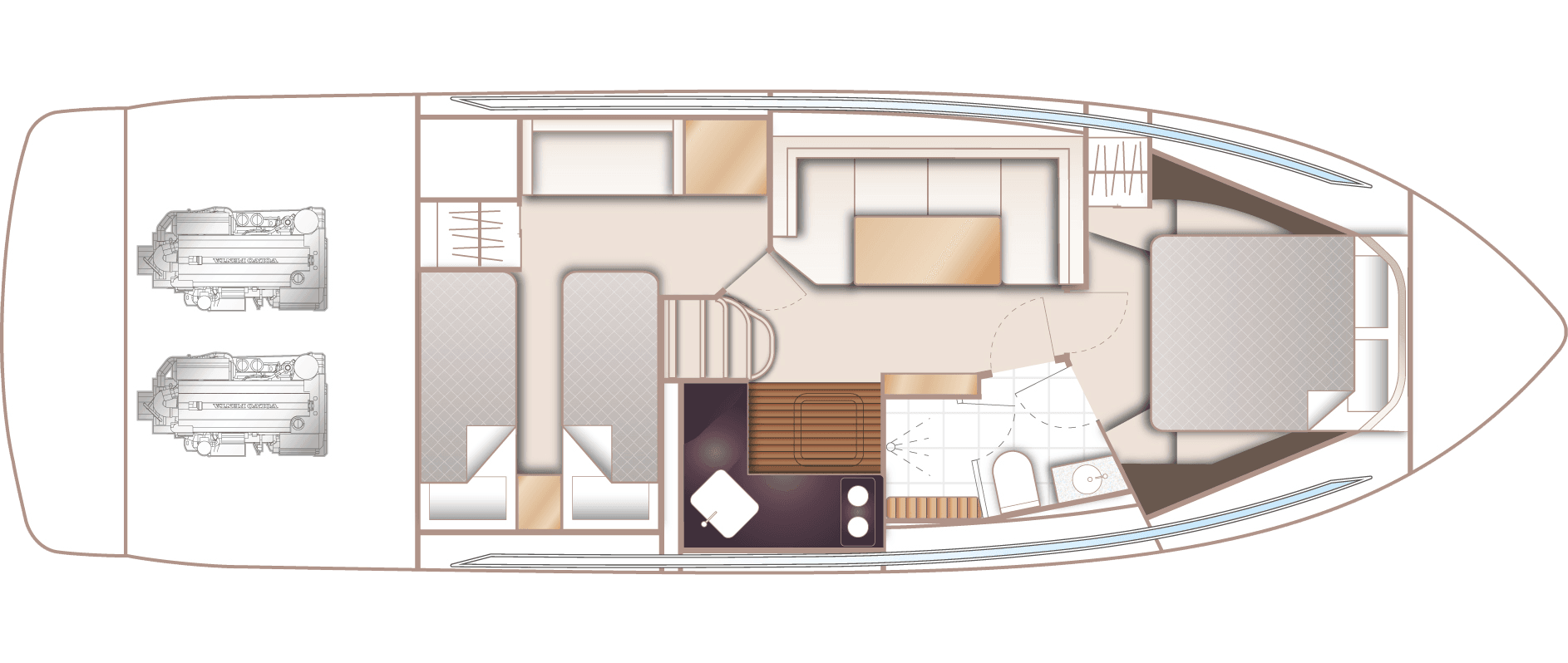

V40 Lower Deck

Principal Dimensions

Length overall (incl. pulpit)	42 ft 6 in / 12.98m
Length overall (excl. pulpit)	40 ft 6 in / 12.35m
Beam	12 ft 5 in / 3.81m
Draft (drives raised)	1 ft 10 in / 0.56m
Draft (drives lowered)	3 ft 4 in / 1.02m
Displacement approx.	9,592 kg / 21,147 lbs*
Fuel capacity	161 gal / 193 US gal / 730 l
Water capacity (excl. calorifier)	63 gal / 76 US gal / 288 l
Black water tank	19 gal / 22 US gal / 85 l

Engines - Diesel

Twin Volvo D6-340 DP (2 x 340mhp)

Maximum speed range – 34-36 knots†

Full Specification

Deck fittings

Teak laid transom platform, cockpit deck and steps to side decks

Reversible electric anchor winch with helm position controls

Self-stowing (16 kg/35 lbs) Delta anchor with 30m of chain

Stemhead roller with automatic anchor launch and retrieve

Chain locker with stowage for 4 fenders (stowage for an additional 2 fenders in engine room)

Stainless steel bow, stern and spring cleats

Bow fairleads

Stainless steel pulpit and guardrails

Foredeck hatch with integrated skylight

Rubbing band with stainless steel insert

Full set of IMCO navigation lights

Riding light

Remote control searchlight

Twin electric horns

Fuel and water fillers

Cockpit

Self draining

L-shaped seat opposite helm position

U-shaped seating/dining area

Teak table (with optional conversion to double sunbed)

Cockpit lighting

Audio unit linked to saloon with local control, paired with Fusion 6" FR-602 speakers (2)

Sliding sun roof (electrically operated) within fixed GRP structure and integrated radar arch

Aft tonneau canvas cover

Stainless steel grabrails

Wetbar with sink, top loading cool box and optional electric barbecue

Locker with remote fuel cocks

220/240v shore support inlet

Life raft storage locker

Engine access hatch with gas strut support and storage for 2 fenders

Transom gate leading to integral bathing platform

Teak laid bath platform with retractable swimming ladder (manual), hot and cold transom shower, and space for tender

Large transom storage locker with access via transom doors and hatch in stern seat (will accept deflated dinghy and outboard engine)

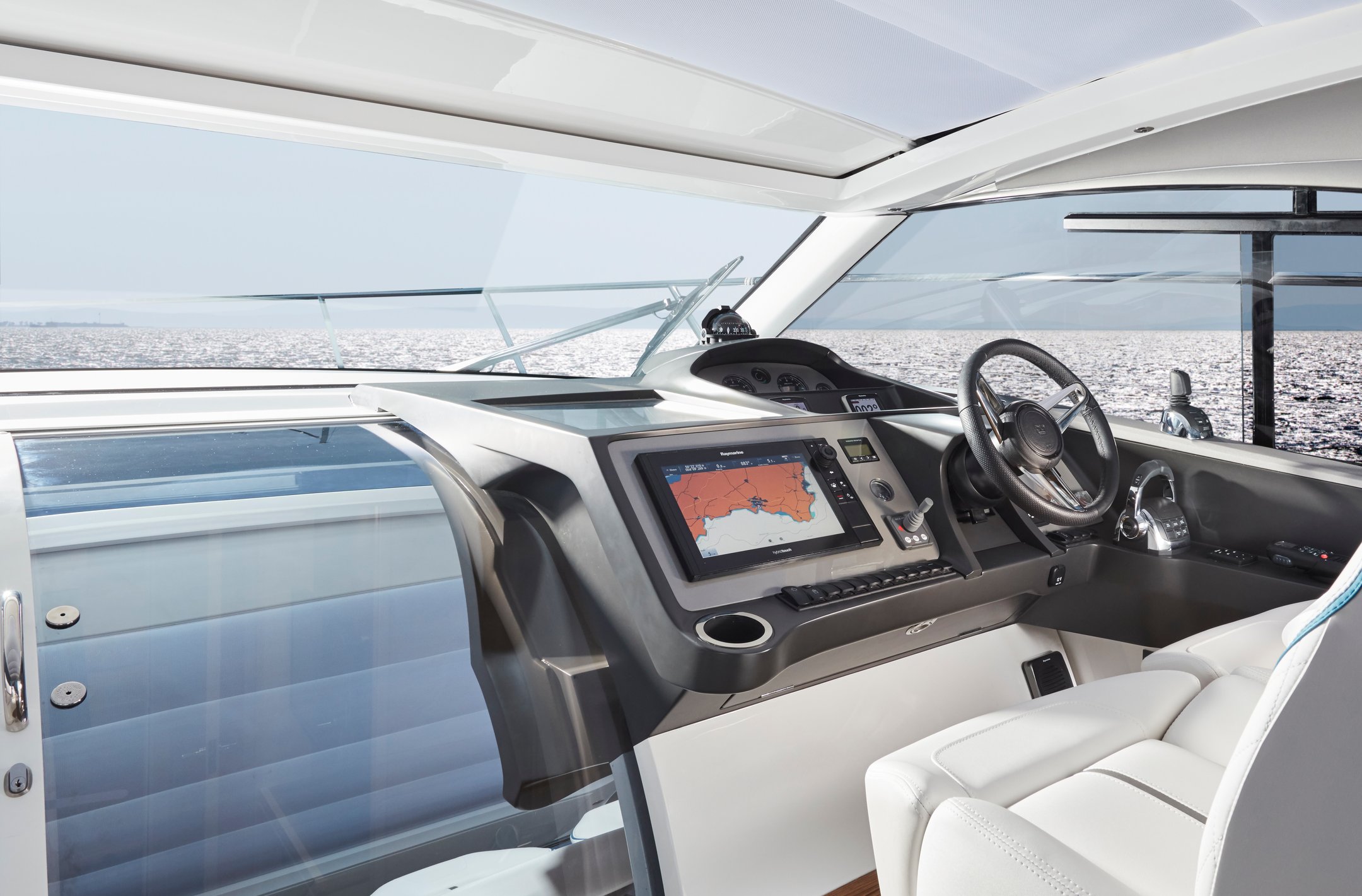

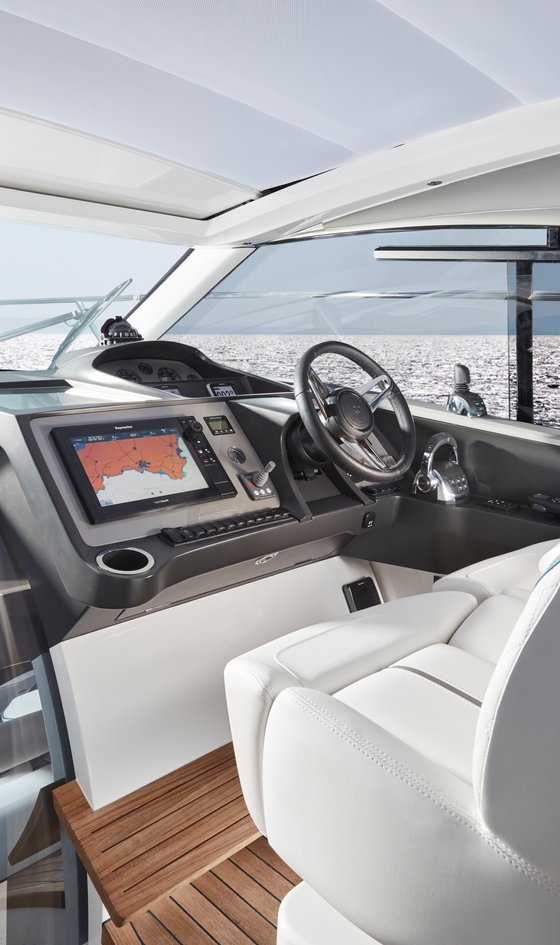

Helm position

Double helm seat with sit/stand facility

Instrument console incorporating engine instruments and fuel gauges

Instruments and controls at helm position:
- Power-assisted electro-hydraulic steering
- Adjustable steering wheel
- Electric anchor winch remote control
- Trim tab controls with indicators
- Sterndrive trim controls
- VHF with DSC R/T
- Speed and distance log (with sea temperature)
- Echo sounder with alarm
- Remote control searchlight
- High-speed compass
- Horn button

Chart table

Windscreen wipers (2 speed)

Freshwater windscreen wash

Bilge pump controls with visual ‘pump running’ warnings

Saloon

U-shaped sofa, converting to double berth with built in stowage for infill cushions

Dining table

Cocktail cabinet

Cupboards and lockers

Fusion Apollo RA-670 audio unit with WiFi and Bluetooth connected to saloon Fusion 6" CL602 speakers and cockpit speakers (2)

Window with opening porthole

Manual tension venetian blind

LED overhead and concealed lighting (12v)

Access stairway to lower accommodation

Fitted carpet

Galley

Solid surface worktop

2-zone gas hob with flame-failure device

Combination microwave/conventional oven with grill

Stainless steel sink with mixer tap

Chopping board

Waste bin

Drawers and storage cupboards

Refrigerator with freezer compartment

Window with opening porthole

Manual tension venetian blind

LED overhead and task lighting (12v)

220/240v outlets (4)

Timber flooring

Accommodation

All cabins and bathrooms feature opening portholes

All cabins feature 220/240v power points

All bathrooms feature electric freshwater toilets and 240v shaver points

Owner's cabin

Large double bed with drawers below

Wardrobe with shelves

Dressing table

Mirror

Storage lockers and drawers

Window with opening porthole

Manual tension venetian blind

Deck hatch with integrated skylight and blind

LED overhead and concealed lighting (12v)

Individual berth lights

220/240v outlets (2)

Fitted carpet

En-suite bathroom

Wash basin with solid surface worktop

Mirror

Storage lockers

Shower compartment with automatic pump out

Window with opening porthole

Manual tension venetian blind

LED overhead and concealed lighting (12v)

Bathroom accessories

Solid surface flooring

Guest cabin

Two single berths

Wardrobe with shelves

Mirror

Storage lockers

Panoramic with opening porthole

Manual tension venetian blind

LED overhead and concealed lighting (12v)

Individual berth lights

220/240v outlets (2)

Fitted carpet

Gas

Overboard vented and drained locker for 2 gas bottles

Copper gas line sheathed in PVC

Gas regulator

Gas low/system test meter

Power and drive systems

Twin duo-prop stern drives

Engine room lighting

Engine room access hatch and ladder

Power-assisted electro-hydraulic steering system

Trim tabs with indicators

Electronic engine and gear shift controls

Engine room extraction

Electrical systems12 Volt:

2 x heavy duty batteries for engine starting

2 x heavy duty auxiliary batteries

Battery link facility with remote control at helm position

Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present

75-amp 12v float battery charger

Remote battery master switches with control switch at main switch panel

Circuit breakers on all circuits

12v voltage dropper for certain navigation and radio circuits

Princess Connect telemetry and maintenance system

220/240 Volt:

Automatic fire extinguisher

30-amp shore support inlet

Polarity check system

Earth leakage safety trip

Circuit breakers on all circuits

Power points in: owner’s cabin, guest cabin, galley and saloon area

Shaver point in bathroom

Fuel system

Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 160 gal / 192 US gal / 730l capacity

Fuel fillers on port and starboard side decks

Volvo fuel filter/ water separator (one per engine) with water warning sensors connected to warning lights at helm position

Remote fuel cocks in cockpit locker

Fuel gauges at main helm console

Water system

Water tanks totalling 64 gal / 77 US gal / 290l plus 7 gal / 8.5 US gal / 32l hot water calorifier

Water heated by engines and 240v immersion heater

Automatic water pump with filter

Main circuit breaker at switch panel

Water level gauge

Deck filler

Fire extinguishers

Automatic/manual override fire extinguishers in engine room with warning system at helm position

Hand-operated fire extinguishers (4) in owner’s cabin, guest cabin, galley and helm position

Bilge pumps

Automatic/manual override electric bilge pumps in engine room (2), rudder area, lazarette and forward accommodation (6 in all)

High-capacity manual bilge pump with valve system and suction points in same areas

Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at flybridge helm

Other standard equipment

Ensign staff

Fenders (6)

Mooring warps (4)

Boat hook

First-aid kit

Tool kit

Owner’s manual and engine manual

Quilted bedspreads supplied to both cabins

Ship’s document case

Anchor winch back up handle

Finishes

Teak-laid decks to transom platform, cockpit deck and steps to side decks

Timber-laid floor to galley area

Furniture in Rovere oak with satin finish as standard. Optional finishes include ash or silver oak with a satin finish or walnut wood in a satin or gloss finish

Tiled floor in bathroom suite in guest accommodation

Solid surface wash basin counter tops in bathroom suite in guest accommodation

Galley worktop in solid surface finish

Choice of high-quality carpet and upholstery fabric from extensive range

Blinds or sunscreens to all windows and portholes
