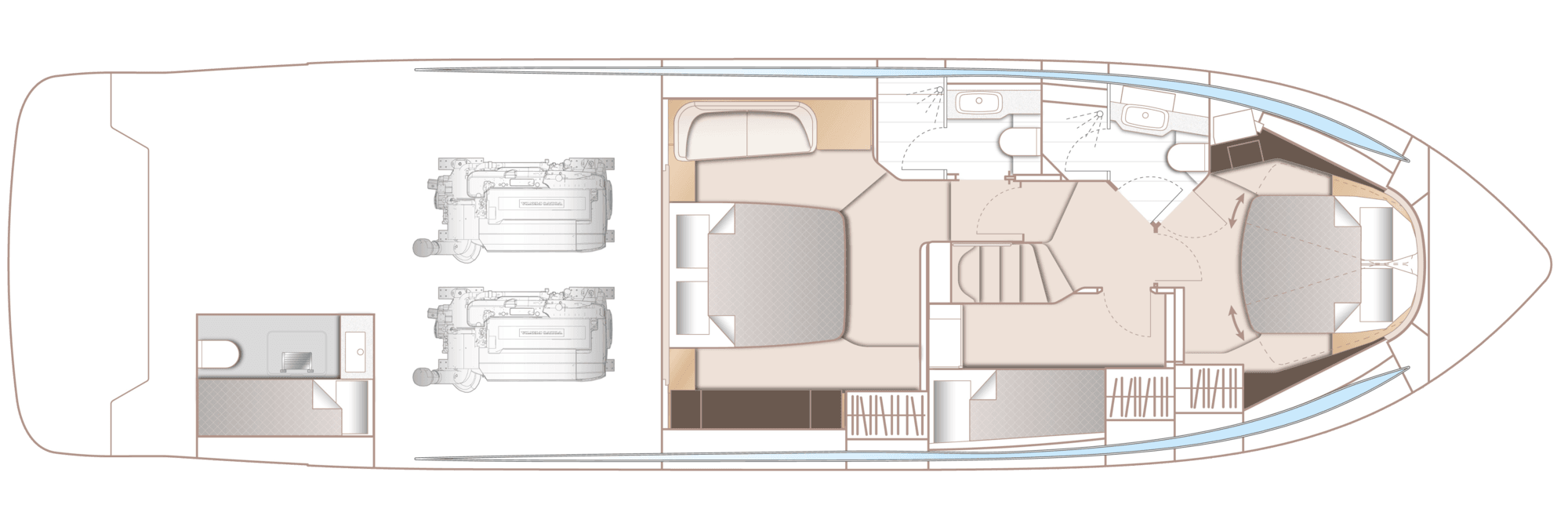

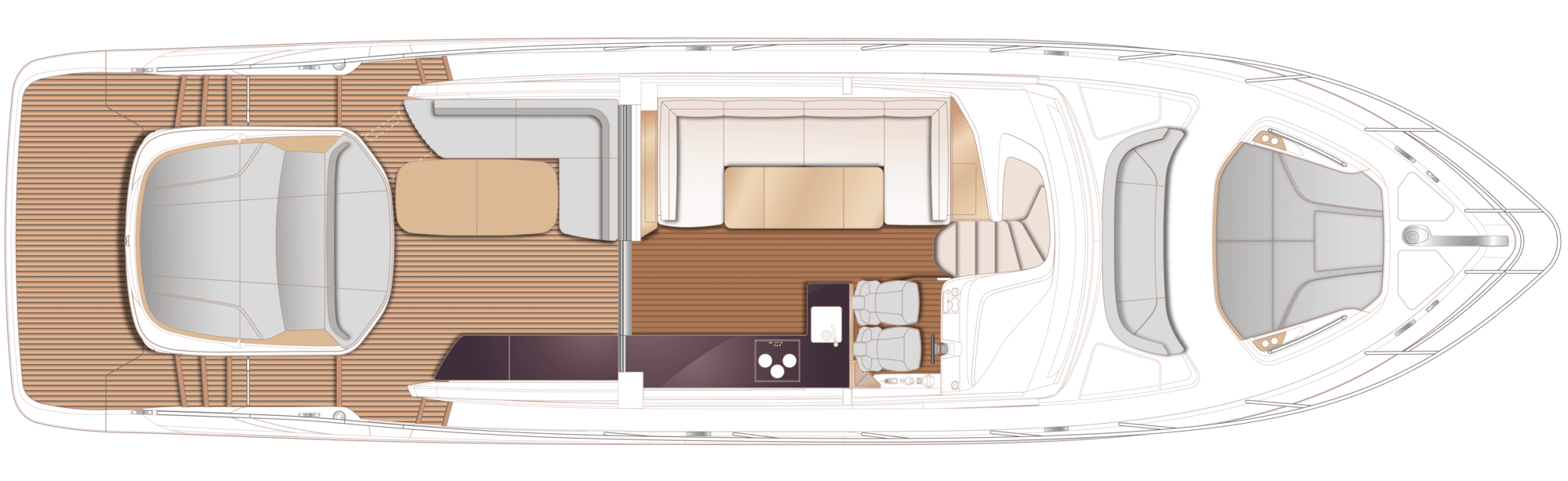

Layout and Specifications
Length overall (incl. pulpit)
58 ft 5 in / 17.81m
Length overall (excl. pulpit)
56 ft 9 in / 17.29m
Beam
15 ft 3 in / 4.65m
Draft
4 ft 9 in / 1.44m
Displacement approx.
28,589 kg / 63,028 lbs*
Fuel capacity
550 gal / 660 US gal / 2,500 l
Water capacity (excl. calorifier)
103 gal / 123 US gal / 466 l
Black water tank
66 gal / 79 US gal / 300 l
Twin Volvo D13-1000 (2 x 1,000mhp)
Maximum speed range – 33-35 knots†
Deck fittings
Teak-laid transom platform, cockpit deck and steps to side deck
Reversible electric anchor winch with foredeck and helm position controls
Stemhead roller with automatic anchor launch and retrieve
Self-stowing (32kg/70lb) Delta anchor with 40m of chain (9.5mm)
Bow rope storage locker
Freshwater deck/anchor wash
Walk through coachroof seating area
Deck storage locker for fenders
Princess stainless steel bow, stern and spring cleats (8)
Stainless steel pulpit and guardrails
Stainless steel coachroof handrails
Foredeck hatch
PVC rubbing band with stainless steel insert
LED deck level lighting
Illuminated crown logo to transom
Full set of IMCO navigation lights
Riding light
Searchlight with remote control
Twin electric horns
Fuel and water fillers
V55 badges, 1 per side, aft canopy
Cockpit and bathing platform
Patio door with lift up section to starboard with locking gas strut. Moving panel slides to port and retracts forming large open section.
Self-draining
L-shaped seating/dining area, folding teak table with cushion infill to extend seating into U- shaped configuration
Aft sunbed
Wetbar with barbecue, drawer fridge and storage
LED overhead and deck level lighting
Hand holds moulded into GRP inboard faces of the aft buttresses.
Garage(to take tender up to 3.45m) with electro-hydraulic door and tender launch system with electric winch
Liferaft stowage locker
Lockable gas strut assisted hatch to port lazarette
Lockable gas strut assisted hatch to lazarette/optional crew cabin
Lockable gas strut assisted hatch to engine room
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Twin transom gates leading to bathing platform
Electro-hydraulic raise/lower teak laid bathing platform (450Kg SWL)
Retractable bathing ladder (manual) in side of hydraulic platform
Transom steps to access stern from bathing platform when in lowered position
Hot and cold transom shower
Fusion Signature 6.5” speakers waterproof speakers (2) linked to saloon sound system
with local control (Fusion Apollo ERX-400) (additional x 2 speakers - optional)
220/240v shore support inlet in locker
Tonneau cover
Helm position
Twin helm seats with fore and aft adjustment for helmsman
Instrument console with 10” colour mfd screen incorporating engine instrumentation and fuel gauges and rudder indicator
16” brilliant colour mfd incorporating GPS/chartplotter, log and echo sounder
Instruments and controls at Helm Position:- power-assisted electro-hydraulic steering- adjustable steering wheel (new style Isotta steering wheel)- rudder position indicator- high-speed magnetic compass- electronic engine controls and joystick control- trim tab controls with indicators- bow thruster control- electric anchor winch remote control- autopilot- VHF with DSC R/T with intercom- remote control searchlight - horn button
Drinks holders
Toughened glass screen (clear for night vision)
Windscreen wipers with freshwater windscreen wash
Black mesh sunscreens
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB connection point
LED overhead lighting (24v) and night lighting
Electric drop window to starboard side
Timber flooring (V groove planked)

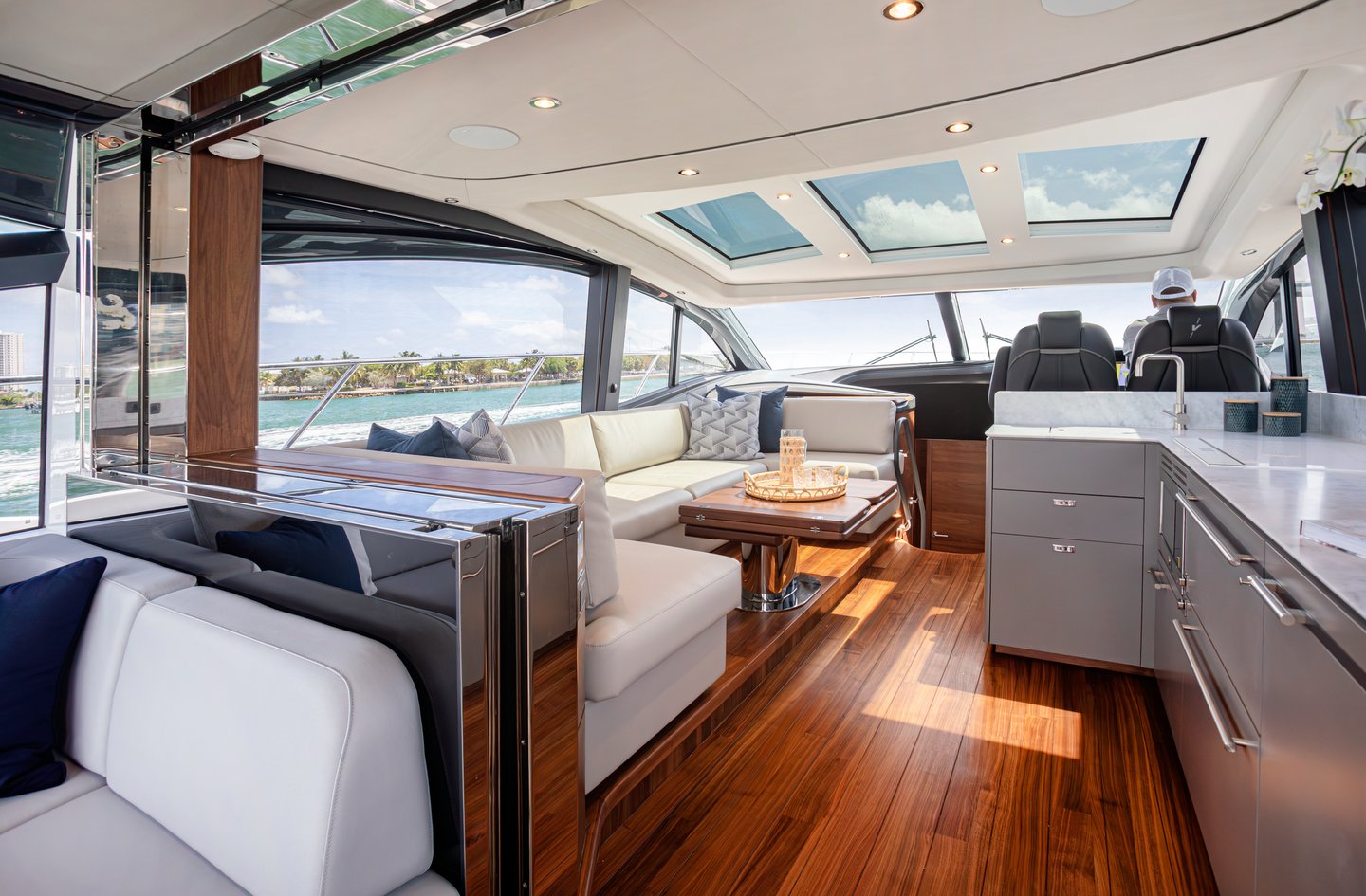

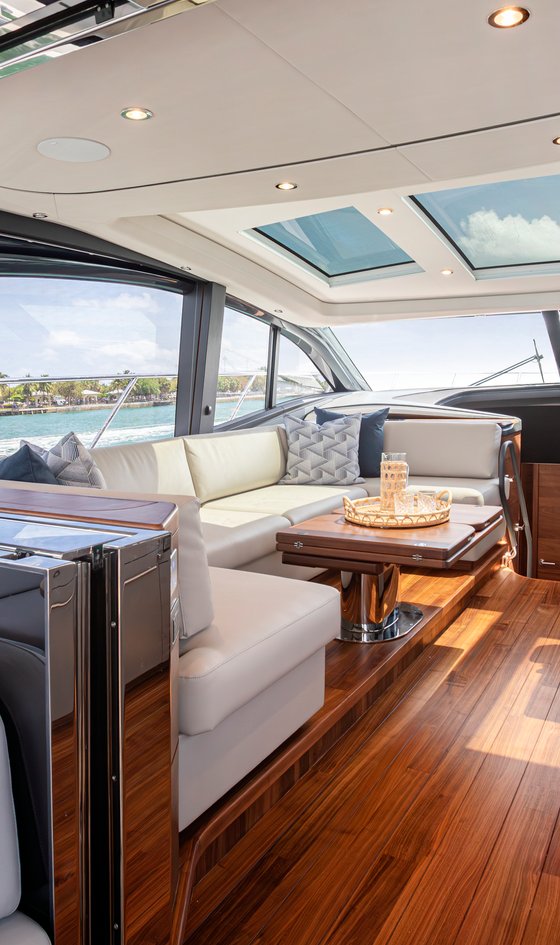

Saloon
U-shaped sofa with crockery storage below
Folding dining table or coffee table with integrated storage
50” UHD LED TV on rise and fall with Sony BDP-S3700 Blu-Ray player
Fusion Apollo MS-RA770 audio system paired with Focal 100 ICW6 speakers (2)
Blinds or sunscreens to all windows and doors
Dimmable LED overhead and concealed lighting (24v)
Access stairway to lower accommodation
Electric opening roof with integrated blinds
Galley
Sylmar white (satin finish) solid surface worktop
Ceramic 4-zone hob (De Dietrich hob, white)
Hob extractor
Under-counter fridge freezer
Combination microwave/convection oven with grill
Stainless steel sink with mixer tap
Waste bin
Drawers and storage cupboards in taupe grey soft touch finish
Stainless steel framed drop down patio door to cockpit with hinge up window over wetbar
Blinds to all windows and doors
Dimmable LED overhead and task lighting (24v)
220/240v outlets (4)
Accommodation
All cabins and bathrooms feature opening portholes
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
Owner’s stateroom
Large double bed
Twin bedside tables
Wardrobe with hanging and shelf storage
Mirror
2-seater sofa to port
Storage lockers and drawers
Sideboard unit to starboard with storage lockers and drawers and integrated dressing table
43” UHD LED TV
Audio system with Apollo RA-670 with DAB and external USB, Sony BDP-S3700 Blu-ray player. Paired with Focal 100 ICW6 speakers (2)
Panoramic windows including opening porthole with venetian blinds
Individual berth lights
220/240v outlets (2)
Double USB charging points (2)
Fitted carpet
En-suite bathroom
Wash basin and worktop in thermoformed solid surface in Sylmar White (satin finish)
Storage lockers
Shower compartment with automatic pump out
Extractor fan
Windows with opening portholes and venetian blind
LED overhead and concealed lighting (24v)
Bathroom accessories
Flooring in Koko White (satin finish) solid surface
Forward stateroom
Large double bed with option of scissor berths
Wardrobe with shelves
Dressing table
Window with opening porthole and venetian blind
Deck hatch
Starboard guest cabin
Two single bunk beds with drawers below
Storage lockers with shelves
Window with opening portholes and venetian blind
220/240v outlets (1)
Optional crew cabin (in place of aft lazarette)
Single bed with storage below
Storage locker
Opening porthole
LED overhead lighting (24v)
Individual berth light
220/240v outlet (1)
Non-slip safety flooring
Washbasin with solid surface worktop
Electric freshwater toilet
Power and drive systems
5-bladed propellers in nickel aluminium bronze
Bow thruster (210kgf/463lbf) with controls
Engine room lighting
Engine room access hatch and ladder
Volvo electric power assisted steering “joystick ready” as standard
Trim tabs with indicators
Electronic engine and gear shift controls
Engine room extractor fan with electronic time delay
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical systems
24 Volt:
4 x heavy duty batteries for engine starting
4 x heavy duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
60 amp battery charger charges both banks of batteries via an automatic switch charging system
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
Princess Connect Telemetry and maintenance
220/240 Volt:
9.5Kw diesel generator in own sound shield with water cooled specially silenced exhaust
Automatic fire extinguisher
50 amp shore support inlet
Generator/shore support change-over switch
Polarity check system
Earth leakage safety trip
Power points in: Owner’s stateroom, guest cabins, galley and saloon area
Shaver points in all bathrooms
Fuel system
Twin fuel tanks (in NS8 marine grade alloy) with interconnection system giving 484 gal / 581 US gal / 2,200l
Fuel fillers on port and starboard side decks
High-capacity duplex fuel filters with water traps with change-over valves, water warning sensors connected to warning lights at helm
Remote fuel cocks in cockpit locker
Fuel gauges at helm console
Water system
Water tanks totalling 105 gal / 126 US gal / 477l plus 16 gallons/19 US gal / 73l / hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric freshwater toilet system with 66 gal / 79 US gal / 300l holding tank, content gauge and low noise manual overboard discharge with dockside discharge system
Fire extinguishers
Automatic/manual override fire extinguisher in engine room with warning system at helm position
Hand-operated fire extinguishers (5) in owner’s stateroom, forward and starboard guest
cabins, galley and helm position
Additional extinguisher fitted when optional aft cabin is specified
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2), rudder area, lazarette and forward accommodation (6 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at helm and warning light with audible alarm at helm
Other standard equipment
Ensign staff
Fenders (6)
Mooring warps (4)
Boat hook
First Aid kit
Tool kit
Owner’s manual and engine manual
Quilted bedspreads supplied to all cabins (except optional crew cabin)
Anchor winch back up handle
Storage locker in lower lobby
Finishes
Teak-laid decks to transom platform, cockpit deck and steps to side decks
Timber flooring (V groove planked) to galley, saloon and helm
Furniture in Rovere oak with satin finish as standard. Optional finishes include ash or silver oak with a satin finish or walnut wood in a satin or gloss finish
Upper accommodation furniture with finish and materials to complement the exterior living spaces
Solid surface floors, counter tops and sinks in all bathrooms
Galley worktop in solid surface
Choice of high-quality carpet and upholstery fabric from extensive range
Blinds or sunscreens to all windows and portholes
Optional crew cabin has non slip safety flooring, crew bathroom has white solid surface countertops
