Layouts and Specification
Length overall (incl. pulpit)
82 ft 5 in / 25.11m
Length overall (excl. pulpit)
Beam
19 ft 11 in / 6.07m
Draft
6 ft 0 in / 1.83m
Displacement approx.
70,314 kg / 155,016 lbs*
Fuel capacity
1,540 gal / 1,849 US gal / 7,000 l
Water capacity (excl. calorifier)
326 gal / 391 US gal / 1,480 l
Black water tank
119 gal / 143 US gal / 540 l
Twin MAN V12-1650 (2 x 1,650mhp)
Maximum speed range – 25-27 knots†
Deck fittings
Teak-laid transom platform, transom steps, cockpit deck, stairway to flybridge, side decks, steps to foredeck, flybridge aft sun deck and foredeck seating walkthrough areas
Reversible hydraulic anchor winches with foredeck and main helm controls
Stemhead roller with manual anchor launch and retrieve
Twin anchor system incorporating a primary anchor - 80kg galvanised Lewmar claw anchor with 100m of 14mm galvanised chain and a secondary anchor – 50kg galvanised Lewmar claw anchor with 70m of 14mm galvanised chain
Twin electric stern line mooring winches
Deck hatch access to chain locker, rope locker and engine room
Freshwater deck/anchor wash (with both fore and aft deck outlets)
Stainless steel bow and stern fairleads
Stainless steel bow spring cleats (1 pair, port and starboard)
Stainless steel stern spring cleats (1 pair, port and starboard)
Stainless steel guard rails to foredecks
Stainless steel flybridge handrails with glazed panel
Stainless steel handrails to main deck side decks
Foredeck escape hatch
Foredeck U-shaped seating area with removable coffee table
Drinks holders (12)
Twin coach roof lockers for storage of fenders, ropes and cushions
PVC rubbing band with stainless steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Twin beam searchlight with remote controls
Stern docking lights
Twin electric horns
Fuel and water fillers
Cockpit and bathing platform
Self-draining
Upholstered U-shaped seating with storage below (for life-rafts)
Teak folding dining table
LED overhead and deck level lighting
Stainless-steel handrails
Stern docking (second) station controls portside including engine controls, thruster controls, windlass controls and emergency engine stop
Remote control 4.5m telescopic passerelle with automatic folding handrails (1.2m overhang)
Watertight pantograph door giving access from bathing platform into crew area/engine room
Engine room to cockpit escape hatch
Stern lazarette and central transom locker with provision storage and charging for optional SEABOBs (2 max.) to accommodate F5/F5S/F5SR models.
Wash basin with mixer tap to portside
Starboard locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Integral stairway to flybridge with teak step treads
Twin transom gates leading to bathing platform
Electro-hydraulic teak-laid raise/lower bathing platform (550kg SWL)
Retractable bathing ladder (manual) in side of bathing platform
Hot and cold transom shower
220/240v shore support inlet
Canvas cockpit cover and table cover

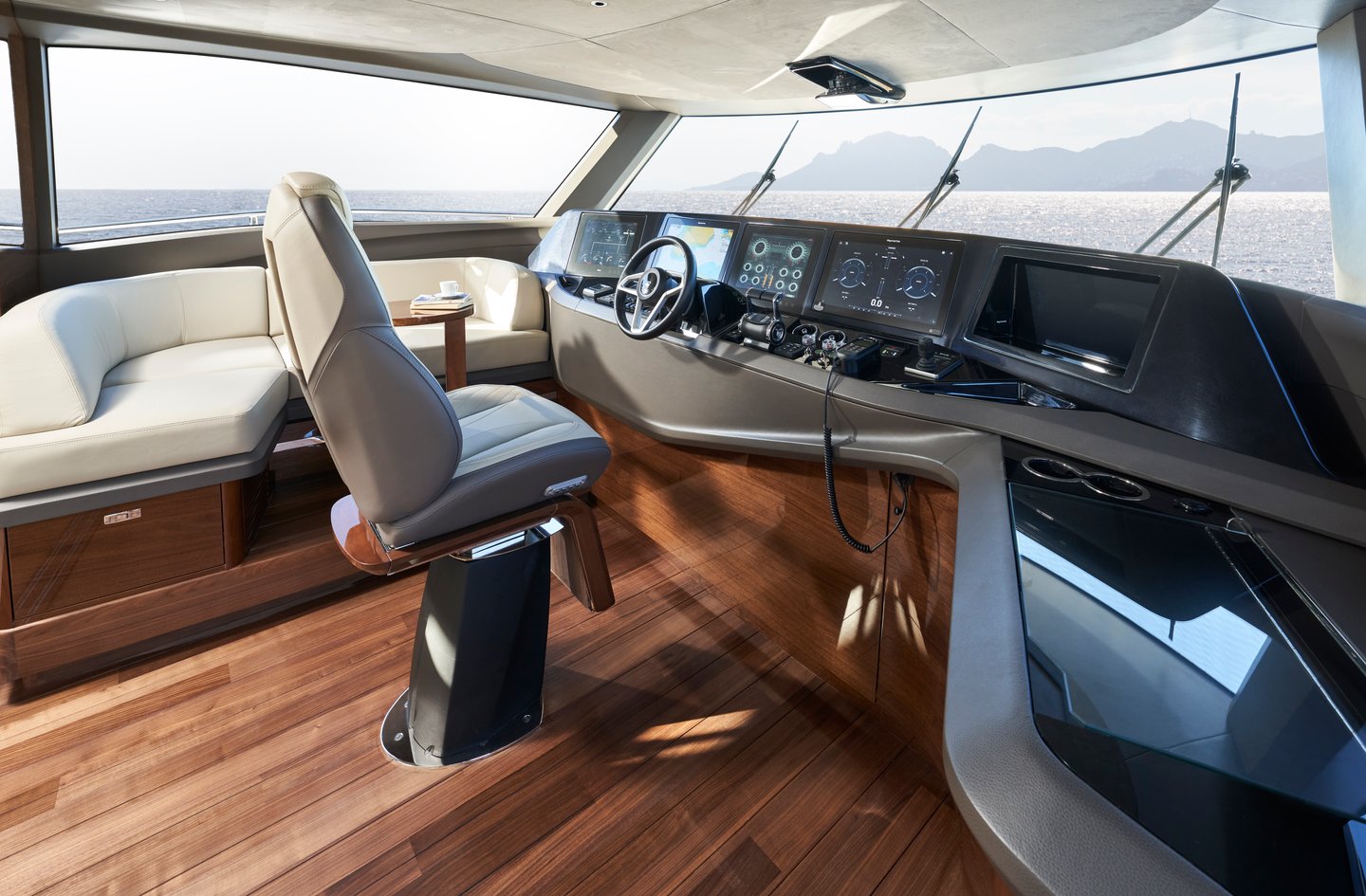

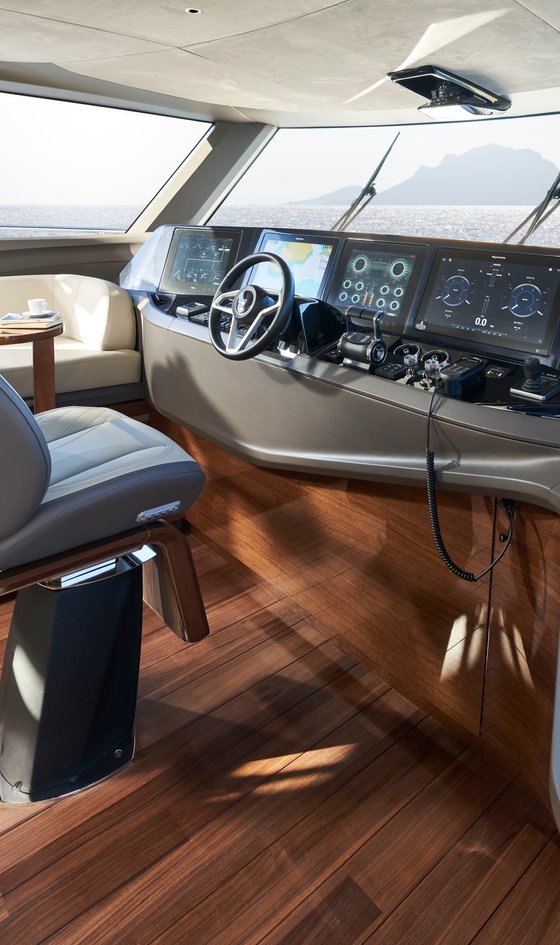

Helm
Enclosed pilot house (via sliding doors) with central leather upholstered seat with fore, aft adjustment
L-shaped companion seating to port (with deployable side table) and optional navigator seat to starboard
2-stage sliding doors to fully enclose or open helm to sky lounge area
Instrument console with LCD display incorporating engine instruments, optional CCTV linked to Böning screen, fuel gauges, alarms and rudder position indicator
Helm position instrument and controls console including:- power-assisted electro-hydraulic steering (SeaStar)- adjustable steering wheel - high-speed magnetic compass- electronic engine controls- bow thruster control- anchor winch remote control- colour radar (with scanner) and GPS/chart plotter (twin 15.6” displays)- Single 15” Böning display- autopilot- speed and distance log- echo sounder with alarm- VHF with DSC R/T with intercom- remote control dual searchlight- horn button (to operate twin electric horns)- audible and visual alarm for bilge pumps- engine room fire extinguisher warning system
Automatic fog horn with loudhailer
Chart storage
Drink holders
Toughened glass screen (clear for night vision) with windscreen de-mist system
Windscreen wipers with freshwater windscreen wash
Exterior black mesh windscreen covers
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
Dimmable LED overhead/concealed lighting (24v) and night lighting with scene selection
Watertight pantograph door giving direct access to starboard side foredeck walkthrough area
Timber flooring (V groove planked)
220/240v outlets (1)
USB charging points (2)
Skylounge
Sofa and coffee table
Naim Uniti Atom audio system with Focal 100 ICW6 speakers (2)
Sideboard with fridge and storage
Access stairway to main deck
Stainless steel opening glass patio doors to aft deck area
USB connection points (2)
Dimmable LED overhead/concealed lighting (24v) with scene selection
Tinted panoramic toughened side windows
Glazed roof panels with powered blinds
Manual roller blinds to all side windows
Manual curtains to aft door, stowed to port
Timber flooring (V groove planked) with rug inlay

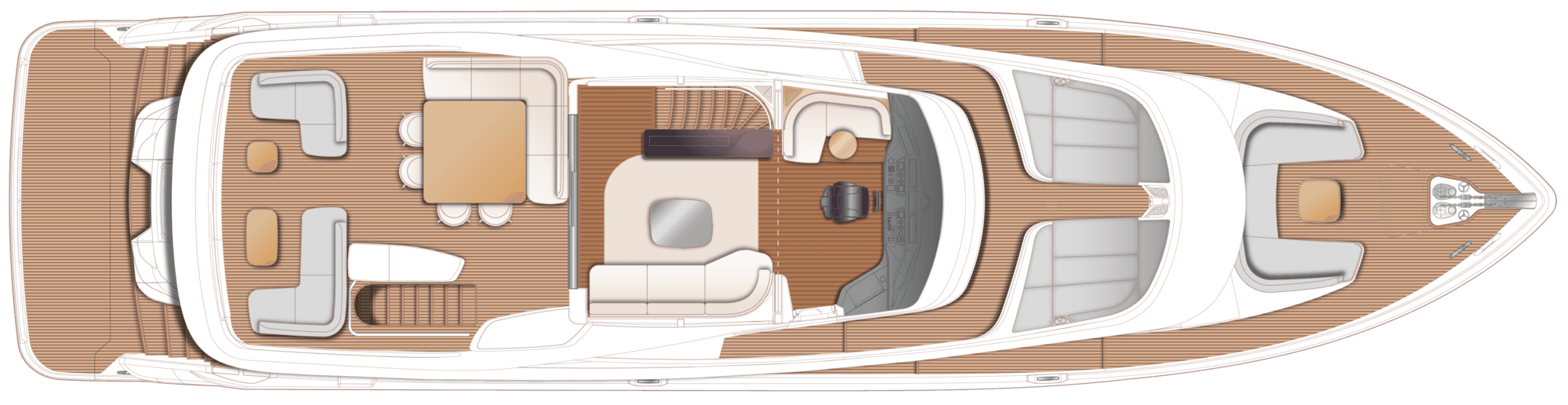

Flybridge and flybridge foredeck
Flybridge foredeck with twin sunpads
Flybridge aft deck area with twin L-shaped sofas and coffee tables (2). Port side sofa can be adjusted to face forward or aft.
Dining table with chairs to accommodate 8 persons (10 for optional 5 cabin layout)
Naim Uniti Atom audio system with waterproof JL Audio M6-650X-L speakers (2) to aft end of flybridge
Clear view hatch to aft cockpit
Access stairway to aft cockpit
Stainless-steel handrails with glass balustrade to aft of flybridge deck
Storage lockers port/starboard
Aft wet bar unit with electric barbecue, sink and tap, waste bin and storage with solid surface counter top.
Radar mast
Twin matching whip aerials for VHF R/T and radio
Covers to exterior furniture, (cockpit cover, cockpit table cover, flybridge table cover (includes zip in chair covers), flybridge wetbar cover (2), flybridge L-shaped sofa covers (2), flybridge coffee table covers (2), flybridge dining area sofa, flybridge forward sunpad covers (2), foredeck seating cover and foredeck coffee table cover)
Saloon
Large L-shaped sofa to port with storage below
Sofa to starboard with storage below
Coffee table
55” 4K UHD LED TV on rise and fall.
Naim Uniti Atom audio system with Focal 100 ICW6 speakers (2) and Focal Cub Evo subwoofer
Servery unit with integrated drinks refrigerator
Glasses storage sideboard
Panoramic tinted toughened glass windows port and starboard
Triple stainless-steel framed cockpit doors
Access stairway to lower accommodation
Access stairway to skylounge
220/240v outlets (2)
USB charging points (4)
Manual roller blinds to all outboard windows
Manual curtains on wave track to aft patio doors, stowed to port
Fitted carpet
Onboard ethernet router and 4G/5G internet modem
Galley
Granite/quartz counter top
Open bar/servery layout with powered electric screen to fully enclose galley and sliding door
Miele 4-zone induction hob
Hob extractor
Miele combination microwave/convection oven with grill
1.5-bowl stainless-steel sink with mixer tap
Chopping board and storage
Full height refrigerator/deep freezer
Dishwasher
Icemaker
Waste bin
Drawers and storage cupboards
Manual roller blinds to window
Pantograph door to starboard side deck
Dimmable LED overhead and task lighting (24v)
220/240v outlets (4)
Access to deck saloon via sliding door
Access to dining area via sliding door
Dining area
Dining table with aft facing fixed seating and dining chairs (4)
Upholstered leather sideboard unit with crockery, glassware and general storage
Entertainment unit with Naim Uniti Atom audio system and Focal 100 ICW6 speakers (2)
220/240v power outlets (2)
Full-height panoramic tinted toughened glass port window
Opening porthole (2) (3 with optional main deck Owner's stateroom)
Manual roller blinds to outboard and forward windows
Day head
Electric freshwater toilet
Wash basin and counter top in thermoformed solid surface
Storage cupboard
Manual tension venetian blind
Solid surface flooring

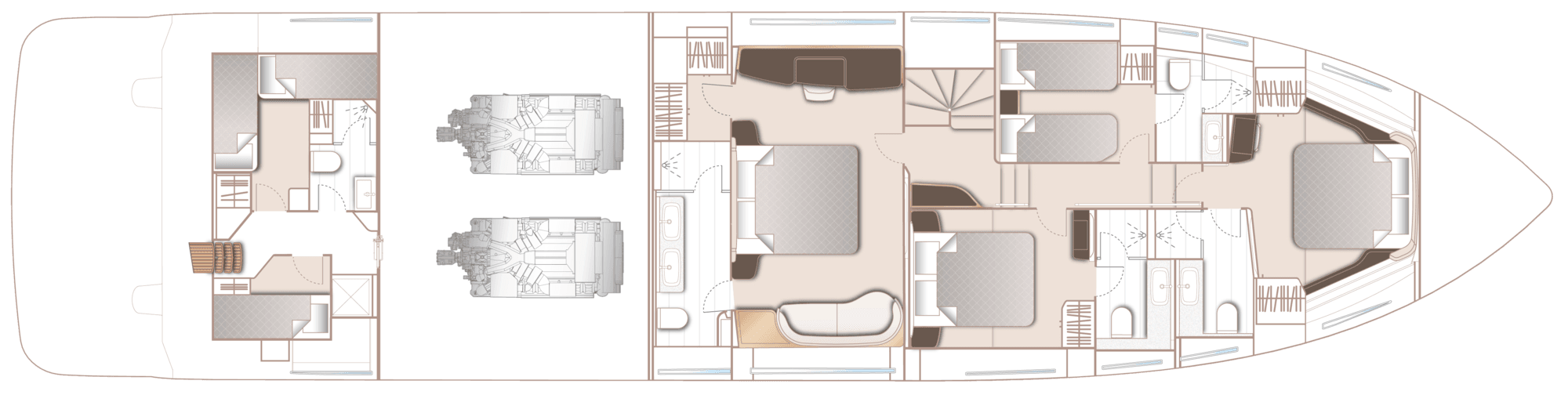

Accommodation
All cabins and bathrooms feature opening portholes and air conditioning
All cabins feature 220/240v power points
All en-suites feature 240v shaver points
Owner's stateroom
Large double bed with bedside tables and drawers below
Dressing area with full length mirror, hanging, shelf and drawer storage
Built-in safe
Port side dressing table with integrated mirror, chair, storage drawers and cupboards
Starboard side sofa with storage drawers to forward bulkhead
55” 4K UHD LED TV
Panoramic windows including opening portholes
Roman blinds to hull windows
En-suite bathroom
Twin washbasins and vanity top in thermoformed solid surface
Mirror
Storage lockers
Electric freshwater toilet and option of separate bidet
Shower compartment with automatic pump out
Extractor fan
Heated towel rail
Window with opening porthole
LED overhead and concealed lighting (24v)
Bathroom accessories
Solid surface flooring, with synthetic teak accents (weathered finish) applied to feature shower bulkheads and shower floor
Forward stateroom
Twin double wardrobes
Port side dressing table with integrated mirror, stool and storage drawers
43” 4K UHD LED TV
Washbasin and vanity top in thermoformed solid surface
Starboard guest cabin
Double bed with drawers below
Bedside table
Dressing table with stool
Wardrobe with shelves
Window with opening portholes
Roman blind
Individual berth lights
USB charging point (2)
Port guest cabin
Two single beds with drawers below
Windows with opening portholes
Lower accommodation lobby
Linen cupboard below companionway stairs
Top-loading storage unit outboard in window side liner
Sideboard with mirror above
Space for optional combination washer/dryer below companionway stairs
LED overhead/concealed lighting (24v) with scene selection
Manual roller blind to window
Crew quarters
All lower crew furniture is in white laminate, with Koko White solid surface (satin finish) bathroom vanity unit tops and Koko White solid surface (satin finish) bathroom floors
Crew cabin
Twin single beds with storage below
Wardrobe with shelf
Opening porthole (2, port and aft) and venetian blinds
LED overhead lighting (24v)
Individual berth light
Non-slip safety flooring
Starboard crew cabin
Single bed with storage below
Wardrobe
Storage locker
Opening porthole and venetian blind
Crew bathroom
Washbasin with Koko white (satin finish) solid surface vanity top
Solid surface flooring in Koko white (satin finish)
Crew area
Access from transom door
Access to engine room
Washing machine and separate tumble dryer (stacked)
Power and drive systems
High volume air intakes
Engine room extractor fan with electronic time delay
Engine exhaust silencers and water-cooled exhausts
Forward and aft engine room bulkheads and engine room deck head to be integrally bonded including insulation with acoustafoam layers
Engines flexibly mounted
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Propeller shafts in Marinemet
5-bladed propellers in nickel aluminium bronze
High speed balanced rudders
Cathodic protection for stern gear
Stern gear, engines, fuel tank fillers, all electrically bonded
LED engine room lighting
Engine room access from transom (via crew) and cockpit deck hatch
Power-assisted electro-hydraulic steering system
Electronic engine and gear shift controls
Bow thruster with dual-station controls (340kgF)
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical systems24 Volt:
4 x heavy duty batteries for engine starting
6 x heavy duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
1 x 100 amp charger, 1x 100 amp -3500W charger/inverter and 1x 6 amp charger (for generator battery)
Remote battery isolator control switches at main switch panel position
Circuit breakers on all circuits
24v to 12v converters for certain navigation and radio circuits
24v to 240v/50Hz inverter for saloon A/V, galley fridge and optional telephone system
Galvanic isolation system
Princess Connect telemetry and maintenance system
220/240 Volt:
European specification: Up to 2 x 28kW @ 50Hz diesel generators in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel (single generator as standard)
USA specification: Up to 2 x 32kW @ 60Hz diesel generators in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel (single generator as standard)
220/240v shore power inlet (2 x 63 amp single phase)
Shore power/generator change over control operated from main control panel
Polarity check system
Earth leakage safety trip, circuit breakers on all circuits
Power points (240v) in all cabins and living areas, helm position and galley
240v shaver points in washrooms
3kW 2kW immersion heater for fresh water (2)
Fuel system
Main fuel tank with a total 7,000l litres of fuel capacity (8,800l if long range fuel tank is specified).
Fuel fillers to port and starboard
High capacity duplex fuel filters/water traps with integral changeover valves and water sensors connected to alarms at helm position
Remote fuel isolation controls in cockpit locker for main engines and generators
Fuel gauges at helm position
Air conditioning system
Air conditioning/heating reverse cycle 270,000 BTU fan capacity with 216,000 BTU chiller capacity suitable for temperatures to 40°C (tropical)
Windscreen demist facility
Outlets in all areas
Water systems
Fresh water tanks giving 1,500l capacity plus 205l hot water calorifier
Automatic water pump with filter (80l/min)
Water level gauge
Deck filler
Pump control at main helm station
Electric freshwater toilet system linked to 540l holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
Bilge pumps
Automatic/manual override electric bilge pumps in engine room, rudder area and forward accommodation
High capacity manual bilge system with suction points in the same areas
Electric bilge pumps have controls and warning lights with audible alarm at helm position
Fire extinguishers
Automatic engine room fire extinguisher system (with manual override) and warning system at helm position providing automatic shutdown of engines, generators and ventilation fans
Hand operated fire extinguishers in all guest cabins, galley, crew quarters and flybridge
Other standard equipment
Ensign staff
Fenders (8)
Mooring warps (4)
First aid kit
Set of towels (8 large, 8 hand) (10 for optional 5 cabin layout)
Bed cover supplied to all cabins (except crew cabin)
Complete set of Lucrezia crystal glassware (8 settings consisting of tumbler, highball and wine glasses) (10 settings for optional 5 cabin layout)
Set of Sous Le Soleil crockery (8 settings consisting of plate, cake plate, dessert plate, bowl, cup and saucer) (10 settings with for optional 5 cabin layout)
Set of stainless steel cutlery (8 settings of David Mellor “Paris” cutlery 7 pieces) (10 settings for optional 5 cabin layout)
Tool kit
Boat hook
Owner’s manual and engine manual
Ship’s document case
Finishes
Teak-laid decks to all external deck areas (including flybridge)
Timber flooring (V grooved planked) to galley, skylounge and wheelhouse
Furniture in Rovere oak satin finish as standard (Silver oak satin finish, Ash satin finish or Walnut in satin or gloss finish are available as an option)
Solid surface floors in all bathroom suites in guest accommodation (including day head)
Thermoformed solid surface wash basin counter tops in all bathroom suites and day head
Synthetic teak accents (weathered finish) applied to bulkheads/shower linings in all guest ensuites
Galley counter top in granite or quartz
Choice of high-quality carpets and fabrics from extensive range
Curtains, blinds or sunscreens to all windows and portholes (excludes helm and pantograph doors)
Crew cabins have fitted carpet, Crew bathrooms have solid surface floors and countertops
Non-slip safety flooring to crew mess and passageway
