6mm teak-laid transom platform, transom steps, cockpit deck, stairway to flybridge, side decks, steps to foredeck, flybridge aft sun deck and foredeck lounge walkthrough areas
Reversible hydraulic anchor winches with bridge controls (Lewmar V8)
Anchor pockets with anchor launch and retrieve
Twin anchor system incorporating two 125kg galvanised kedge anchor with 100m of 14mm galvanised chain
Deck chain stoppers (2)
Mooring bollards forward (4)
Mooring bollards aft (4)
Mooring bollards on platform cheeks (2)
Mooring bollards mid-ship (1 per side)
Twin electric sternline mooring winches (Lewmar C6)
Deck hatch access to chain, Bosuns and fender storage locker (non-locking, with access ladder)
Freshwater deck/anchor wash (with both fore and aft deck outlets) (under bow seat, starboard side outboard of transom steps) (quick release bayonet fitting)
Stainless steel bow and stern fairleads
Stainless-steel foredeck guard rails
Stainless steel flybridge handrails
Stainless gates (with glazing) to restrict access to the foredeck area
PVC rubbing band with stainless-steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Twin beam searchlight with remote controls (located on mast)
Loudhailer (located on hardtop)
Stern docking lights (on underside of canopy/flybridge overhang)
Twin electric horns (located on mast)
Fuel and water fillers (fuel: main deck, port and starboard, water: port side)
Self-draining
Upholstered U-shaped seating with storage below (non-locking)
Teak dining table with removable central leaf section paired with 2 dining chairs
LED overhead and deck level lighting
Stainless-steel handrails (round top profile)
Stern docking station controls portside including thruster controls and emergency engine stop, Rexroth control as standard
Remote control 5.47m telescopic passarelle with folding handrails
Watertight (double D sealed) hinged locking door giving access from transom into garage / optional beach club area
Engine room to cockpit escape hatch
Crew area escape hatch to cockpit
Garage (to take wetbike up to 3.05m) with electro-hydraulic door with additional storage for optional SEABOBs (2 max, starboard bulkhead mounted rack)
Rope storage locker (non-locking)
Wash basin with mixer tap to portside
Starboard locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Integral stairway to flybridge with teak step treads
Twin glazed transom gates leading to bathing platform
Electro-hydraulic teak-laid transformer bathing platform (1,000kg SWL)
Retractable bathing ladder (manual) in side of bathing platform
Hot and cold transom shower
Three phase shore support inlet (380v-415v / 42kVa @50Hz) with Glendinning cablemaster (15m/50ft) and a single phase shore power inlet (220-240v / 15kVa @ 50Hz. Both shore supports with isolation transformers. (US Spec single phase 2 x 100A)
Seat and table covers
Port side deck lockable access and stairway to crew accommodation

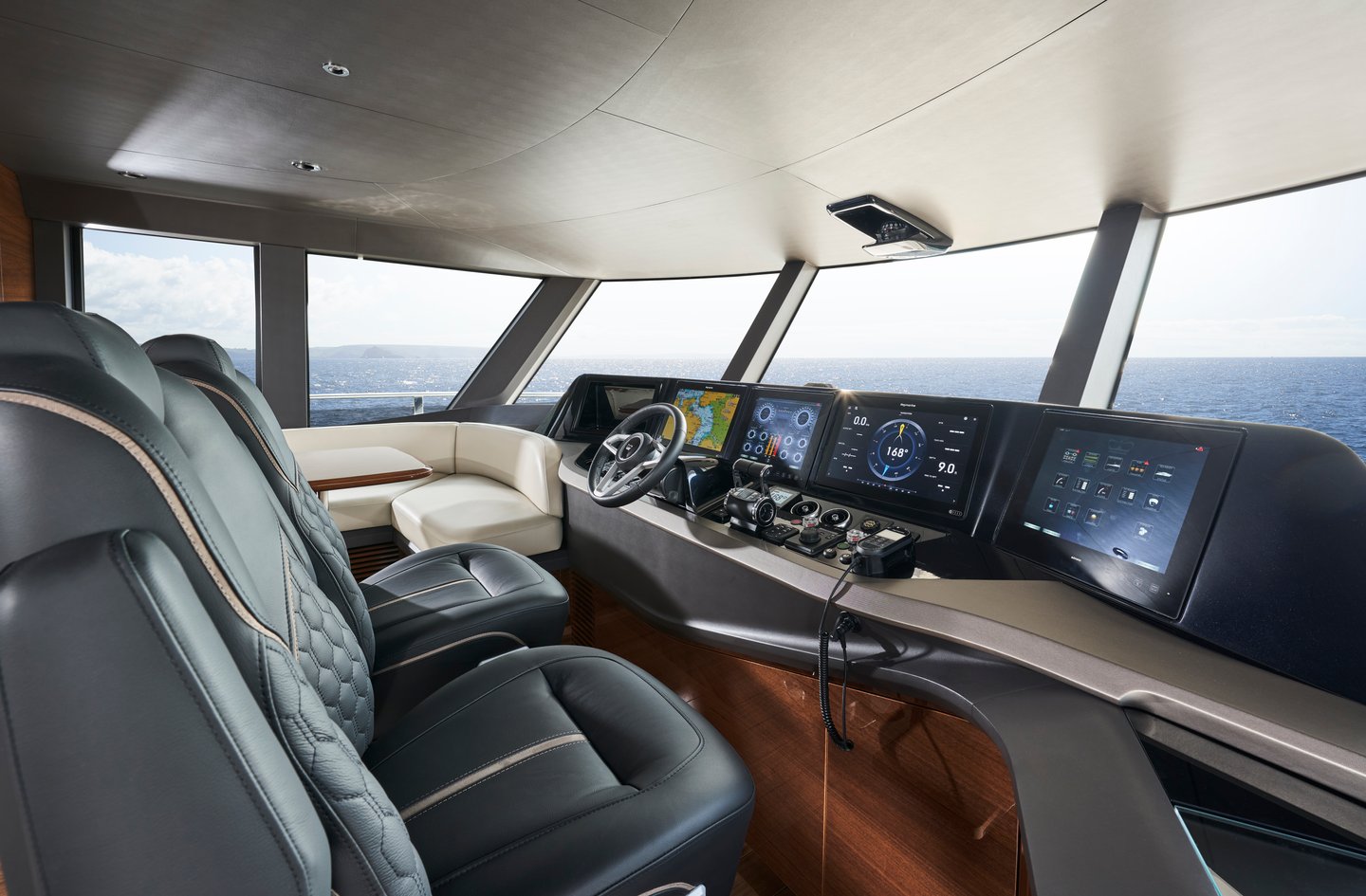

Enclosed pilot house with central leather upholstered electric seat with fore, aft and height adjustment
U-shaped companion seating to port with table
Sliding doors to fully enclose or open helm to skylounge area
Instrument console with LED display incorporating engine instruments, CCTV linked to Böning screens, fuel gauges, alarms and rudder position indicator

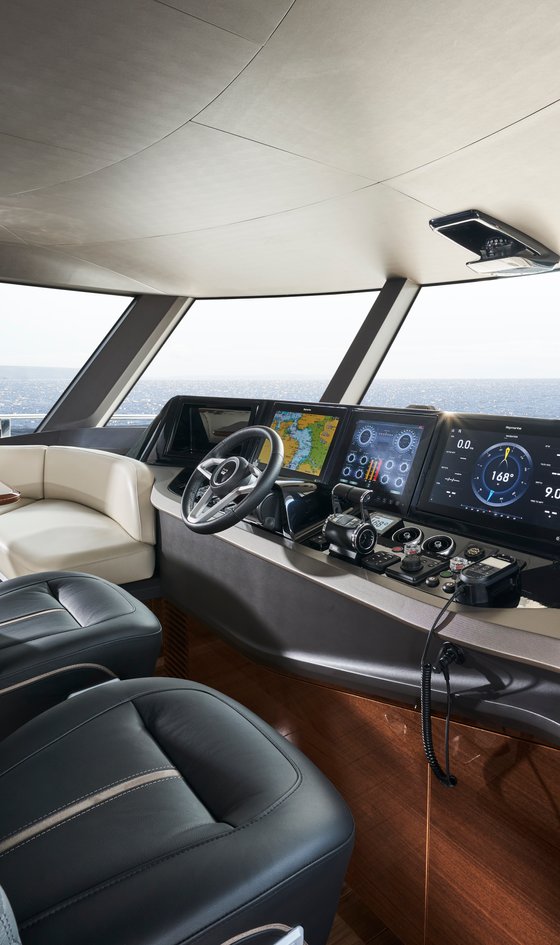

Helm position instrument and controls console including:
- power-assisted electro-hydraulic steering (SeaStar)
- adjustable steering wheel
- high-speed magnetic compass
- electronic engine controls
- bow thruster control
- hydraulic anchor winch remote control
- colour radar (with scanner) and GPS/chart plotter (twin 19” displays)
-autopilot
- speed and distance log
-echo sounder with alarm
- VHF with DSC R/T with intercom
- remote control dual searchlight
- horn button (to operate twin electric horns)
- audible and visual alarm for bilge pumps
- engine room fire extinguisher warning system
Automatic fog horn with loudhailer
Chart storage
Drink holders
Toughened glass screen (clear for night vision) with windscreen de-mist system
Windscreen wipers with freshwater windscreen wash
Exterior black mesh windscreen covers
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB charging points (2)
Dimmable LED overhead, concealed (24v) and night lighting with scene selection
Watertight pantograph door giving direct access from starboard side deck
Electric drop window to port
Timber flooring (V groove planked)
L-shaped sofa, coffee table and pouf
55” 4K UHD LED TV on rise and fall
DVD Blu-ray system with Naim Uniti Atom audio system speakers (2)
Sideboard with fridge and storage
Access stairway to main deck
Stainless steel opening glass doors to aft deck area
USB charging points (2)
Dimmable LED overhead and concealed lighting (24v) with scene selection
Tinted panoramic toughened side windows
Glazed roof panels with powered blinds
Electric blinds to all side windows
Timber flooring (V groove planked) with rug inlay
Foredeck area with U-shaped seating, and storage locker
Foredeck to incorporate glazed panels to allow light through to galley / dining area or optional main deck owner's stateroom below
Sunbathing area with integrated adjustable teak headrests and storage, converts to aft facing u-shaped seating area.
Flybridge aft deck area with free standing furniture
Dining table with chairs to accommodate 8 persons (10 for optional 5 cabin layout)
Naim Uniti Atom audio system with waterproof speakers (2) to flybridge
Clear view hatch to aft cockpit
Access stairway to aft cockpit
Stainless-steel handrails with glass balustrade to aft and sides of flybridge deck
Starboard storage/servery unit, incorporating liferaft stowage and deck wash outlet
Port storage/servery unit with sink and tap, incorporating liferaft stowage
LED overhead and deck level lighting
Radar mast
Twin matching whip aerials for VHF R/T and radio
Covers to exterior furniture
Large curved sofa to port with storage below
Curved sofa to starboard with storage below
Coffee table with pouf
65” 4K UHD LED TV on rise and fall.
Naim audio system with speakers (4) and subwoofer
Servery unit with integrated drinks refrigerator, bottle storage and icemaker (located on port side forward of saloon)
Occasional coffee table with four armchairs to starboard
Full height glazing port and starboard in way of servery unit/bar and starboard free standing seating areas
Panoramic tinted toughened glass windows port and starboard
Triple stainless steel framed cockpit doors
Watertight side hinge door to starboard side deck
Access stairway to lower accommodation
Access stairway to skylounge
Dimmable LED overhead and concealed lighting with scene selection
220/240v outlets (4)
USB charging points (2)
Electric roller blinds to outboard windows
Manual curtains on wave track to aft patio doors
Fitted carpet
Open layout / country kitchen with forward dining area
Galley and island unit counter top in choice of granite or quartz
Miele 5 zone induction hob
900mm wide conventional oven
Miele Combination convection/microwave oven with grill
Twin full height refrigeration units with deep freeze drawers
Island unit/breakfast bar with triple stainless steel sinks, 12 place dishwasher, storage and space for optional drawer fridge
Barstools (3)
Chopping board
Waste bin
High and low level storage cupboards and drawers
Extractor fan
Space for optional wine cooler
Access to deck saloon
Watertight pantograph access door to port side deck (in forward saloon)
220/240v power outlets (4)
Dimmable LED overhead and concealed lighting with scene selection
Electric blinds to windows
Timber flooring (V groove planked)
Dining table with aft facing fixed seating and dining chairs (5)
Port sideboard bench unit with upholstered top
Sideboard units (2) with crockery, glassware and general storage
Entertainment unit with Naim Uniti Atom audio system and speakers (2)
Ice maker
Cutlery and crockery storage (in port side staircase unit)
220/240v power outlets (2)
USB charging points (4)
Dimmable LED overhead and concealed lighting (24v) with scene selection
Panoramic tinted toughened glass windows port and starboard
Powered blind to forward glazing
Electric roller blinds to windows
Timber flooring (V groove planked)
Large double bed with bedside tables and drawers below
Dressing area with full length mirror, hanging, shelf and drawer storage
Built-in safe
Starboard dressing table with integrated mirror, chair, storage drawers and cupboards
Portside sofa with storage below and coffee table
55” 4K UHD LED TV
Naim audio system with speakers (2) and subwoofer
Panoramic windows including opening portholes
Electric roman blinds to hull windows, with out-board manual sheer roller blind
Dimmable LED overhead and concealed lighting (24v) with scene selection
Wall lights (2)
220/240v outlets (4)
USB connection points (4)
Fitted carpet
Engine room soundproofed
High volume air intakes
Engine room extractor fan with electronic time delay
Engine exhaust silencers and water-cooled exhausts
Engine beds integrally moulded with hull for strength and vibration absorption
Forward and aft engine room bulkheads integrally bonded including acoustafoam layers
Engines flexibly mounted
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Propeller shafts in Marinemet
5-bladed propellers in nickel aluminium bronze
High speed balanced rudders
Cathodic protection for sterngear
Sterngear, engines, fuel tank fillers, all electrically bonded
LED engine room lighting
Engine room access from port side deck via crew area and from cockpit deck
Power-assisted electro-hydraulic steering system
Electronic engine and gear shift controls
Bow thruster with dual-station controls ( 550kgF)
Fresh water supply point in engine room
Dripless self-aligning shaft seals
4 x heavy duty batteries for engine starting
6 x heavy duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
1 x 100 amp charger, 1x 100 amp-3500W charger/inverter & 1x 25 amp charger (for generator battery).
Remote battery isolator control switches at main switch panel position
Circuit breakers on all circuits
24v to 12v converters for certain navigation and radio circuits
Galvanic isolation system
CCTV system with camera in aft cockpit and two fixed cameras in engine room linked to Böning system
Princess Connect telemetry and maintenance
European specification: 2 x 40kW @ 50Hz Onan diesel generators in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel
USA specification: 2 x 40kW @ 60Hz Onan diesel generators in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel
Three phase shore inlet (380v-415v / 42kvA @50Hz) with Glendinning cablemaster (15m/50ft) and a single phase shore power inlet (220-240v / 15kvA @ 50Hz. Both shore supports with isolation transformers. (US Spec single phase 2 x 100 amp)
Shore power/generator change over control operated from main control panel
Polarity check system
Earth leakage safety trip, circuit breakers on all circuits
Power points (240v) in all cabins and living areas, helm position and galley
240v shaver points in washrooms
3kW immersion heater for fresh water (2)
Ensign staff
Fenders (8)
Mooring warps (4)
First aid kit
Set of towels (8 large, 8 hand) (10 sets for optional 5 cabin layout)
Quilted bed covers supplied to all cabins (except crew cabin)
Complete set of Lucrezia crystal glassware (8 settings consisting of tumbler, highball and wine glasses) (10 settings for optional 5 cabin layout)
Set of Sous Le Soleil crockery (8 settings consisting of plate, cake plate, dessert plate, bowl, cup and saucer) (10 settings for optional 5 cabin layout)
Set of stainless steel cutlery (8 settings of David Mellor “Paris” cutlery 7 pieces) (10 settings for optional 5 cabin layout)
Tool kit
Boat hook
Owner’s manual and engine manual
Ship’s document case
Dynamat applied in the following locations
Crews aft engine room bulkhead
Crew deck head
Forward main deck owner's stateroom/dining area deck head
Teak-laid decks to all external deck areas (including flybridge)
Timber flooring (V groove planked) to galley, skylounge, wheelhouse and forward dining area (wheelhouse in Newport oak as standard)
Furniture in Rovere oak with satin finish as standard. Optional finishes include ash or silver oak with a satin finish or walnut wood in a satin or gloss finish
Marble, quartz or granite floors in all bathroom suites in guest accommodation (including day head)
Thermo-formed solid surface wash hand basin counter-tops in all bathroom suites and day head
Galley counter top in granite or quartz as standard (some options carry additional premiums)
Choice of high quality carpets and fabrics from extensive range
Curtains, blinds or sunscreens to all windows and portholes (excludes pantograph doors and wheelhouse)
Crew cabins have fitted carpet
Crew bathrooms have solid surface floors and countertops
Non-slip safety flooring to crew mess and passageway
