Y80

Layouts and Specifications

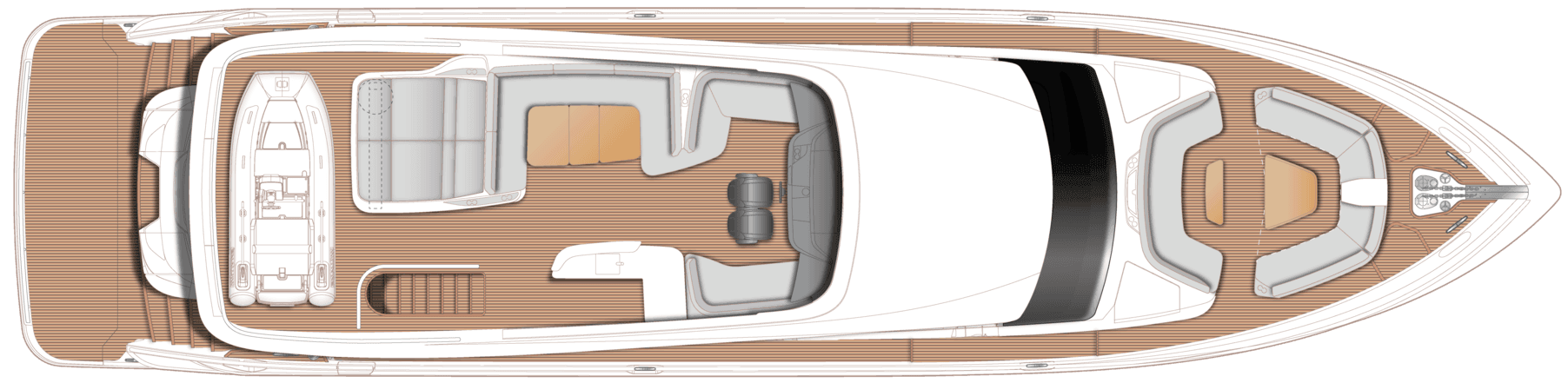

Y80 Flybridge

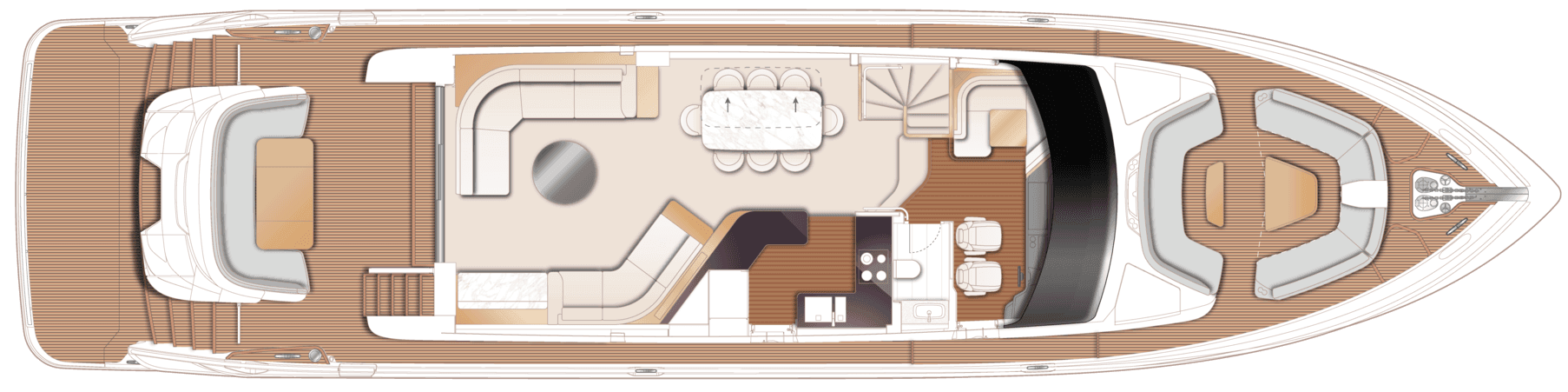

Y80 Main Deck

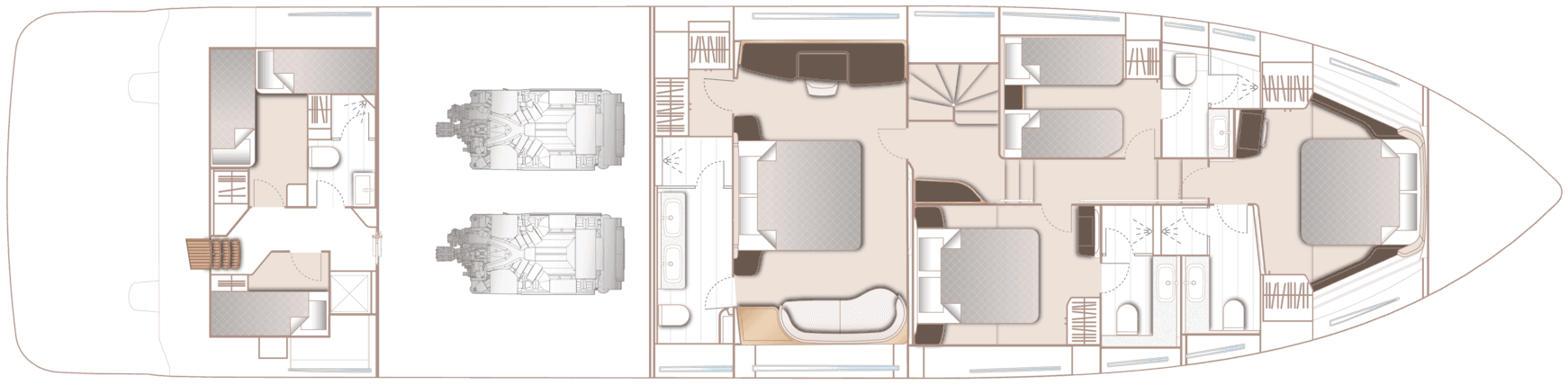

Y80 Lower Deck

Principal Dimensions

Length overall (incl. pulpit)	83 ft 8 in / 25.50m
Length overall (excl. pulpit)	82 ft 5 in / 25.11m
Beam	19 ft 11 in / 6.07m
Draft	5 ft 10 in / 1.80m
Displacement approx.	61,547 kg / 135,688 lbs*
Fuel capacity	1,540 gal / 1,849 US gal / 7,000 l
Water capacity (excl. calorifier)	326 gal / 391 US gal / 1,480 l
Black water tank	119 gal / 143 US gal / 540 l

Engines - Diesel

Twin MAN V12-1800 (2 x 1,800mhp)	Maximum speed range – 30-32 knots†
Twin MAN V12-1900 (2 x 1,900mhp)	Maximum speed range – 31-33 knots†

Full Specification

Deck fittings

6mm teak-laid decking to transom platform, transom steps, cockpit deck, stairway to flybridge, side decks, foredeck & flybridge areas

Princess logo in bathing platform teak

Reversible hydraulic anchor winches with foredeck, main helm and flybridge controls

Stemhead roller with automatic anchor launch and retrieve

Twin anchor system incorporating:

Primary anchor - 80kg galvanised Lewmar Claw anchor, with stainless steel Lewmar swivel and 100m of 14mm galvanised anchor chain

Secondary anchor - 50kg galvanised Lewmar Claw anchor, with stainless steel Lewmar swivel and 70m of 14mm galvanised anchor chain

Deck chain stoppers

Twin electric stern line mooring winches

Deck hatch access to chain locker, rope locker and engine room

Freshwater deck/anchor wash (with both fore and aft deck outlets)

Stainless steel bow and stern fairleads

Stainless-steel bow spring cleats (1 pair, port & starboard)

Stainless-steel stern spring cleats (1 pair, port & starboard)

Stainless-steel guard rails to foredeck

Stainless steel handrails to main deck side decks

Foredeck escape hatch

Foredeck forward-facing U-shaped seating area

Foredeck aft-facing U-shaped seating area with storage unit and standard coffee table

Twin coach roof lockers for storage of fenders, ropes and cushions

PVC rubbing band with stainless-steel insert

LED deck level lighting

Full set of IMCO navigation lights

Riding light

Twin beam searchlight with remote controls

Stern docking lights

Twin electric horns

Fuel and water fillers

Loudhailer

Ensign socket and pole

Holding tank dockside discharge connection

Aft cockpit and bathing platform

Self-draining

Upholstered U-shaped seating with storage below

Teak folding dining table with drink holders (4)

LED overhead and deck level lighting

Stainless-steel oval handrails

Remote control 4.5m telescopic passerelle with automatic folding handrails (1.2m overhang)

Watertight pantograph door giving access from bathing platform into crew area/engine room

Engine room to cockpit escape hatch

Stern lazarette

Starboard locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers

Integral stairway to flybridge with teak step treads

Twin transom gates leading to bathing platform

Electro-hydraulic teak laid raise/lower bathing platform (550kg SWL) with Princess logo in bathing platform teak

Retractable bathing ladder (manual) in side of bathing platform

Hot and cold transom shower

220/240v shore support inlet

Canvas cockpit cover

Swim platform transom seat in teak

Dinghy chock system stainless steel keyway plates for later fitting of tender on bathing platform

Illuminated crown logo on transom

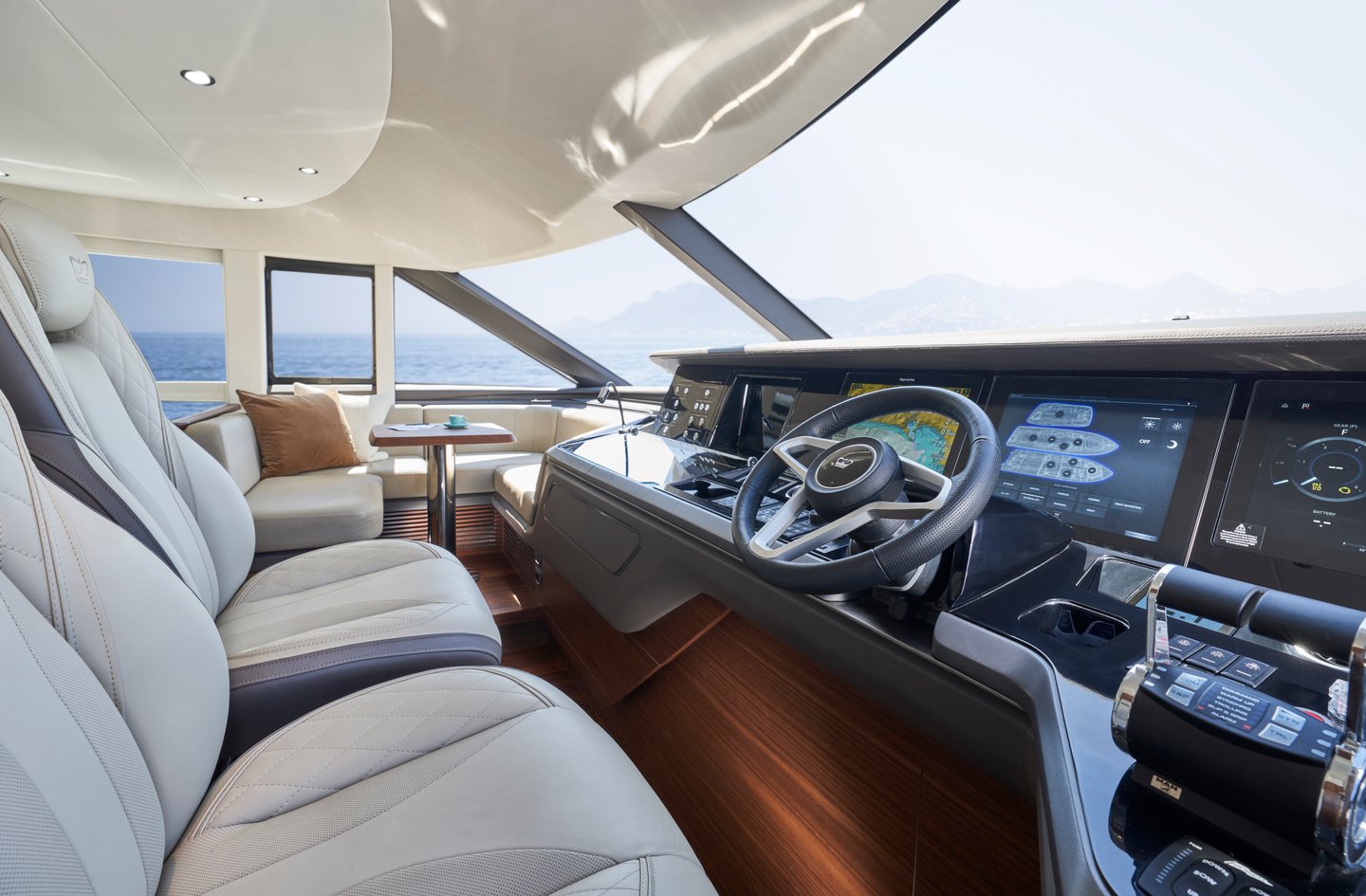

Lower helm

Leather upholstered seat with manual height adjustment and manual fore and aft adjustment.

Fixed navigator’s seat - manual fore and aft

Helm seats incorporate manual fold down foot rest

U-shaped companion seating to port with dining-height table

Instrument console with display incorporating engine instruments, optional CCTV, fuel gauges, alarms and rudder position indicator

Dual station instrument and controls console at wheelhouse/flybridge:
- power-assisted electro-hydraulic steering (Seastar)
- adjustable Pininfarina steering wheel
- high-speed magnetic compass
- electronic engine controls
- bow thruster control
- hydraulic anchor winch remote control
- colour radar (with scanner) and GPS/chart plotter (twin 15.6” displays)
- 1x 15” Böning display
- audible and visual alarm engine warning system
- autopilot
- speed and distance log
- echo sounder with alarm
- VHF with DSC R/T with intercom
- remote control dual searchlight
- horn button (to operate twin electric horns)
- audible and visual alarm for bilge pumps
(via Böning)
- engine room fire extinguisher warning system

Automatic fog horn with loudhailer

Chart storage

Drink holders (2)

Toughened glass screen (clear for night vision) with windscreen de-mist system

Windscreen wipers with freshwater windscreen wash

Black mesh sunscreens

Bilge pump controls with visual pump running warnings

24v and 240v electrical control panel

Riding light, helm and navigation light control switches

Dimmable LED overhead/concealed lighting (24V) with night lighting & scene selection

220/240v outlets (1)

USB charging points (4) (2x USB-A and 2x USB-C)

Watertight pantograph door giving direct access from starboard side deck

Electric drop window to port

V-groove planked timber-laid flooring

Flybridge (and upper helm)

Dual station instruments and controls (see lower helm position)

Helm position

Drinks holders (2)

Port forward L-shaped seating (with infill panel and cushion)

Large portside U-shaped upholstered seating

Aft sunpad with drinks holders (2) (with storage forward and storage aft suitable for optional crane)

Starboard forward seating/individual sunpad

Dining table (teak, triple panel with removable central section)

Wetbar with single electric barbecue/100 litre refrigerator/sink/storage/bin

Naim Uniti Atom audio system with JL Audio M6-650X-L waterproof speakers (2)

Clear view hatch to aft cockpit (in-house)

Wind deflector screens

Access stairway to aft cockpit

Stainless-steel oval handrails with glass balustrade & teak capping to aft of flybridge deck

Life raft stowage in baskets on flybridge aft rails

LED overhead and deck level lighting

Wireless waterproof phone charger

GRP forward facing radar arch

Radar mast

Twin matching whip aerials for VHF R/T and radio

Covers to console/exterior furniture

Deck saloon

Large L-shaped curved sofa to portside, with storage below

Sofa to starboard with storage below

Coffee table

55” LED TV on rise and fall.

Naim Uniti Atom audio system. Paired with Focal 100 ICW6 speakers (2) and Focal Cub Evo subwoofer

Panoramic tinted toughened glass windows port and starboard

Triple stainless-steel framed cockpit doors

Dimmable LED overhead/concealed lighting (24V) with scene selection

220/240v outlets (2)

USB charging points (4) (2x USB-A and 2x USB-C)

Onboard ethernet router & 4G internet modem

Sideboard unit to starboard with integrated drinks refrigerator, glassware storage & top down bottle storage. Sideboard unit has a warm grey porcelain top

Crockery storage (beneath starboard sofa)

Manual sheer roller blinds to all outboard windows

Manual curtains on wave track to aft patio doors, stowed to port

Fitted carpet

Dining area

Electric sliding dining table with 8 dining chairs. Dining table has a warm grey porcelain top.

Full-height window to port

Manual sheer roller blind to window

Dimmable LED overhead/ concealed (24V) with scene selection

Access stairway to lower accommodation

Fitted carpet

Galley

Granite/quartz counter top

Galley units in HPL

Miele 4-zone induction hob

Hob extractor fan

Miele combination convection oven with grill/microwave

Sub-zero single full height refrigeration units with deep freeze drawers

Slimline dishwasher

1.5 bowl stainless-steel sink with mixer tap

Chopping board & storage

Waste bin

High and low-level storage cupboards and drawers

Cutlery storage

Watertight pantograph access door to starboard side deck

220/240v power outlets (4)

Dimmable LED overhead & task lighting (24V)

Manual roller blinds to windows

V-groove planked timber-laid flooring

Day head

Electric freshwater toilet

Wash basin and vanity top in thermoformed Solid Surface

Storage cupboard

Manual tension Venetian blind

Solid Surface flooring

Accommodation

All cabins and bathrooms feature opening portholes and air conditioning

All cabins feature 220/240v power points

All en-suites feature 240v shaver points

Owner's stateroom

Large double bed with bedside tables and drawers below

Dressing area with full length mirror, hanging, shelf and drawer storage

Built-in safe

Port side dressing table with integrated mirror, chair, storage drawers and cupboards

Starboard side sofa with storage drawers to forward bulkhead (As per X80)

55” LED TV

Naim Uniti Atom audio system. Paired with Focal 100 ICW6 speakers (2) and Focal Cub Evo subwoofer

Panoramic windows including opening portholes

Manual roman blinds to hull windows

Dimmable LED overhead/concealed lighting (24V) with scene selection

220/240v outlets (2)

USB charging points (4) (2x USB-A and 2x USB-C)

Fitted carpet

En-suite bathroom

Twin wash basins and vanity top in thermoformed Solid Surface

Mirror

Storage lockers

Electric freshwater Toilet

Shower compartment with automatic pump out

Extractor fan

Heated towel rail

Window with opening porthole

Manual tension Venetian blind

LED overhead and concealed lighting (24V)

Bathroom accessories

Solid Surface flooring, with synthetic teak accents (weathered) applied to feature shower bulkheads and shower floor

Forward stateroom

Large double bed with bedside tables and drawers below

Built-in safe

Twin double wardrobes

Port side dressing table with integrated mirror, stool & storage drawers

43” LED TV

Naim Uniti Atom audio system. Paired with Focal 100 ICW6 speakers (2)

Panoramic windows including opening portholes

Manual Roman blinds to hull windows

Dimmable LED overhead/concealed lighting (24V) with scene selection

220/240v outlets (2)

USB charging points (4) (2x USB-A and 2x USB-C)

Fitted carpet

En-suite bathroom

Wash basin and vanity top in thermoformed Solid Surface

Mirror

Storage lockers

Electric freshwater Toilet

Shower compartment with automatic pump out

Extractor fan

Window with opening porthole

Manual tension Venetian blind

LED overhead and concealed lighting (24V)

Bathroom accessories

Solid Surface flooring, with synthetic teak accents (weathered) applied to feature shower bulkheads and shower floor

Starboard guest cabin

Double bed with drawers below

Bedside table

Dressing table with stool

Wardrobe with shelves

Mirror

Storage lockers

Window with opening portholes

Manual Roman blinds to hull window

Dimmable LED overhead/concealed lighting (24V) with scene selection

Individual berth lights

220/240v outlets (1)

USB charging points (2) (1x USB-A and 1x
USB-C)

Fitted carpet

En-suite bathroom

Electric freshwater toilet

Wash basin and vanity top in thermoformed Solid Surface

Mirror

Storage lockers

Shower compartment with automatic pump out

Extractor fan

Windows with opening porthole

Manual tension Venetian blind

LED overhead and concealed lighting (24V)

Bathroom accessories

Solid Surface flooring, with synthetic teak accents (weathered) applied to feature shower bulkheads and shower floor

Port guest cabin

Two single beds with drawers below

Bedside table

Wardrobe with shelves

Mirror

Storage lockers

Window with opening portholes

Manual Roman blinds to hull window

Dimmable LED overhead/concealed lighting (24V) with scene selection

Individual berth lights

220/240v outlets (1)

USB charging points (2) (1x USB-A and 1x
USB-C)

Fitted carpet

En-suite bathroom

Electric freshwater toilet

Wash basin and vanity top in thermoformed Solid Surface

Mirror

Storage lockers

Shower compartment with automatic pump out

Extractor fan

Windows with opening porthole

Manual tension Venetian blind

LED overhead and concealed lighting (24V)

Bathroom accessories

Solid Surface flooring, with synthetic teak accents (weathered) applied to feature shower bulkheads and shower floor

Lobby / passageway area

Linen cupboard below companionway stairs

Top-loading storage unit outboard in window side liner

Sideboard with mirror above

Space for optional combination washer/dryer below companionway stairs

LED overhead/concealed lighting (24V)

Fitted carpet

Manual roller blind to window

Crew quarters

N.B. All lower crew furniture is in gloss white laminate, with Koko White Solid Surface (gloss finish) bathroom vanity tops and Koko White Solid Surface (satin finish) bathroom floors

Crew cabin port

Twin single beds with storage below

Wardrobe with shelf

Mirror

Storage lockers

Opening portholes (2, port and aft)

Mono-command Venetian blinds

LED overhead lighting (24V)

Individual berth light

220/240v outlets (1)

USB charging points (2) (1x USB-A and 1x
USB-C)

Non-slip safety flooring

Crew cabin starboard

Single bed with storage below

Wardrobe

Mirror

Storage locker

Opening porthole

Mono-command Venetian blind

LED overhead lighting (24V)

Individual berth light

220/240v outlets (1)

USB charging points (2) (1x USB-A and 1x
USB-C)

Non-slip safety flooring

Crew bathroom

Electric freshwater toilet

Wash basin with Koko White (gloss finish) Solid Surface vanity top

Mirror

Storage lockers

Shower compartment with automatic pump out

Extractor fan

LED overhead lighting (24V)

Bathroom accessories

Solid Surface flooring in Koko white (satin finish)

Crew area

Access from transom door

Access to engine room

Washing machine and separate tumble dryer (stacked)

LED overhead lighting (24V)

Non-slip safety flooring

Power and drive systems

Forward and aft engine room bulkheads and engine room deck head to be integrally bonded including insulation with acoustafoam layers (Ref: Development Standard DS876)

High volume air intakes

Engine room extractor fan with electronic time delay

Engine exhaust silencers and water-cooled exhausts

Engines flexibly mounted

Automatic fire extinguisher with remote override control

Automatic and manual bilge pumps

Propeller shafts in Marinemet

5-bladed propellers in nickel aluminium bronze

High speed balanced rudders

Cathodic protection for stern gear

Stern gear, engines, fuel tank fillers, etc all electrically bonded

LED Engine room lighting

Engine room access from transom (via crew area) and cockpit deck hatch

Power-assisted electro-hydraulic steering system

Electronic engine and gear shift controls

Bow thruster with dual-station controls (310 kgF)

Fresh water supply point in engine room

Dripless self-aligning shaft seals

Princess Connect telemetry and maintenance system

Electrical systems24 Volt:

4 x heavy duty batteries for engine starting

6 x heavy duty auxiliary batteries

2x heavy duty batteries for standard generators

Battery link facility with remote control at helm position

Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present

1 x 100A charger, 1x 100A-3500W charger/inverter & 1x 10A charger (for generator batteries)

Remote battery isolator control switches at main switch panel position

Circuit breakers on all circuits

24v to 12v converters for certain navigation and radio circuits

24v to 240v/50Hz inverter for saloon a/v and galley fridge

Galvanic isolation system

Princess Connect telemetry and maintenance system

220/240 Volt:

European specification: Standard 2x 27kW @ 50Hz diesel generators (with optional upgrades up to 2 x 28kW @ 50Hz diesel generators) in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel

USA specification: Standard 2x 29kW @ 60Hz diesel generators (with optional upgrades up to 2 x 32kW @ 60Hz diesel generators) in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel

220/240v shore power inlet (2x 63amp single phase)

Shore power/generator change over control operated from main control panel

Polarity check system

Earth leakage safety trip, circuit breakers on all circuits

Power points (240v) in all cabins and living areas, helm position and galley

240v shaver points in washrooms

2kW immersion heaters for fresh water (2)

Fuel system

Main fuel tank with a total of 7,000 litres fuel capacity. (8,800 litres total if long range fuel tank is specified)

Fuel fillers to port and starboard

High capacity duplex fuel filters/water traps with integral changeover valves and water sensors connected to alarms at helm position

Remote fuel isolation controls in cockpit locker for main engines and generators

Fuel gauges at helm position

Air conditioning system

Air Conditioning/heating reverse cycle (chilled water)

186,000 BTU fan capacity with 144,000 BTU chiller capacity suitable for temperatures to 40°C (tropical), incorporating a windscreen demist facility.

Outlets in all areas

Water system

Fresh water tanks giving 1400 litres capacity plus 200 litres hot water calorifier

Automatic water pump with filter (80l/min)

Water level gauge

Deck filler

Pump control at helm positions

Electric freshwater toilet system linked to 540 litres black water tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system

As standard, sinks, showers, washing machine(s) and dishwasher will discharge directly overboard (where applicable)

Bilge pumps

Automatic/manual override electric bilge pumps in engine room, rudder area and forward accommodation

High capacity manual bilge system with suction points in the same areas

Electric bilge pumps have controls and warning lights with audible alarm at helm positions

Extinguishers / fire control systems

Automatic engine room fire extinguisher system (with manual override) and warning system at helm positions providing automatic shutdown of engines, generators and ventilation fans

Hand operated fire extinguishers in all guest cabins, galley, crew quarters and flybridge

Automatic under helm fire extinguisher at lower helm

Other standard equipment

Ensign staff

Fenders (8)

Mooring warps (4)

First Aid kit

Set of towels (8 large, 8 hand)

Bed cover supplied to all cabins (except crew cabin)

Complete set of Lucrezia crystal glassware
(8 settings consisting of tumbler, highball and wine glasses)

Set of Sous Le Soleil crockery (8 settings consisting of plate, cake plate, dessert plate, bowl, cup & saucer)

Set of stainless-steel cutlery (8 settings of David Mellor “Paris” cutlery 7 pieces)

Tool kit

Boat hook

Owner’s manual and engine manual

Ship’s document case

Finishes

Teak-laid decks to all external deck areas (including flybridge)

V-groove planked timber-laid floor to galley and wheelhouse

Furniture in Rovere oak satin finish as standard (Silver oak satin finish, Ash satin finish or Walnut in satin or gloss finish are available as an option)

Solid Surface floors in all bathroom suites in guest accommodation (including day head)

Thermoformed Solid Surface wash basin vanity tops in all bathroom suites and day head

Synthetic teak accents (weathered) applied to feature shower bulkheads and shower floor

Galley counter top in granite or quartz

Choice of high-quality carpets and fabrics from extensive range

Exterior upholstery to be selected from the Comfort Exterior fabric range (no contrast)

Curtains or blinds to all windows and portholes (excludes lower helm and pantograph doors)

All lower crew furniture is in gloss white laminate, with Solid Surface bathroom floors and vanity tops

Crew cabins to have non-slip safety flooring

Non-slip safety flooring to crew mess and passageway
