Layout and Specification
Length overall (incl. pulpit)
74 ft 9 in / 22.80m
Length overall (excl. pulpit)
73 ft 2 in / 22.31m
Beam
17 ft 11 in / 5.45m
Draft
5 ft 8 in / 1.72m
Displacement approx.
51,325 kg / 113,152 lbs*
Fuel capacity
990 gal / 1,189 US gal / 4,500 l
Water capacity (excl. calorifier)
184 gal / 221 US gal / 836 l
Black water tank
88 gal / 106 US gal / 400 l
Twin MAN V12-1650 (2 x 1,650mhp)
Maximum speed range – 33-35 knots†
Deck fittings
Teak-laid transom platform, cockpit deck, flybridge, flybridge stairway and steps to side deck
Reversible electric anchor winch with foredeck, main helm and flybridge controls
Stemhead roller with automatic anchor launch and retrieve
Self-stowing 50kg/110lbs Delta anchor with 60m of 12mm chain
Twin electric sternline mooring winches
Deck hatch access to chain locker
Bow rope stowage locker
Freshwater deck/anchor wash
Stainless steel bow and stern fairleads
Stainless steel bow, stern and spring cleats (2 pairs)
Stainless steel pulpit and guard rails
Stainless steel coachroof and flybridge handrails
Foredeck escape hatch
Foredeck U-shaped seating area
Foredeck sunbathing area, integrated adjustable headrests with aft facing seat conversion
Twin coachroof lockers for storage of fenders, ropes and covers
PVC rubbing band with stainless steel insert
LED deck level lighting integrated into scene selection lighting control
Illuminated crown logo on transom
Full set of IMCO navigation lights
Riding light
Stern docking light (mounted on flybridge overhang)
Twin beam searchlight with dual station remote controls
Twin electric horns
Loudhailer
Fuel and water fillers
Cockpit and bathing platform
Self-draining
Upholstered U-shaped seating
Folding teak dining table
LED overhead and deck level lighting integrated into scene selection lighting control
Stainless steel handrails
Pantograph door to aft crew cabin
Lockable gas strut assisted hatch to engine room/lazarette
Liferaft stowage locker
Rope storage lockers
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Integral stairway to flybridge with teak step treads
Twin transom gates leading to bathing platform
Electro-hydraulic raise/lower teak laid bathing platform (450kg SWL)
Retractable bathing ladder (manual) in side of hydraulic platform
Swim platform transom seat in teak
Transom steps to access stern from bathing platform when in lowered position
Dinghy chock system (keyway plates and sliders fitted to bathing platform)
Transom storage locker capable of storing 1 x SEABOB F5 / F5 S with space to port side to facilitate SEABOB charging (can accommodate 1 x SEABOB F5SR with single power supply)
Hot and cold transom shower
220/240v shore support inlet
Cockpit canvas cover

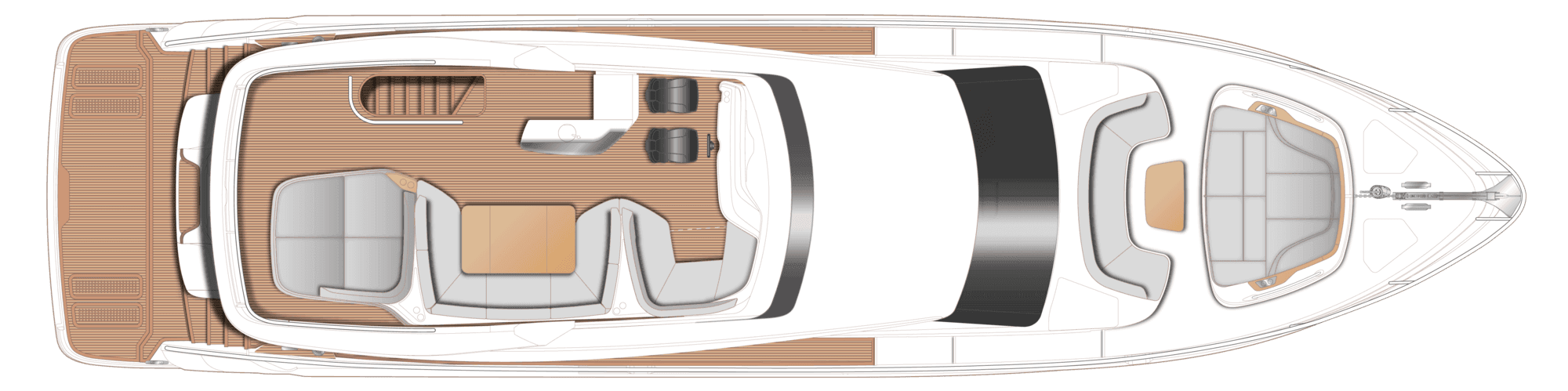

Flybridge
Instrument console with dual station controls and LED display incorporating engine instruments, fuel gages, alarms and rudder position
Power assisted electro hydraulic steering with adjustable wheel
Twin helm seats with fore and aft adjustment for helmsman
Starboard L-shaped seating (converts to sunpad)
Large U-shaped upholstered seating
Teak table with removable central section
Wet-bar with barbecue, sink, drawer fridge, waste bin and storage
Sunbed aft with storage below
Naim Uniti Atom audio unit with JL Audio M6-650X-L waterproof speakers (2)
Clear view hatch to aft cockpit
Wind deflector screens
Stainless steel handrails with glass balustrade and teak capping to aft end of flybridge
GRP radar arch
Twin matching whip aerials for VHF R/T and radio
Console, table and seat covers
Optional extended GRP hardtop with/without electric tilting louvered section or with fixed glass panel
USB charging points (2 x USB-A)
Helm position
Twin leather helm seats with fore and aft adjustment for helmsman
Instrument console with LED display incorporating engine instruments, fuel gauges, alarms and rudder position indicator
Dual station instruments and controls at Flybridge and Lower Helm Positions:- power-assisted electro-hydraulic steering- adjustable steering wheel- high-speed magnetic compass- electronic engine controls- Bow thruster control - electric anchor winch remote control- colour radar (with scanner) and GPS/chartplotter- autopilot- speed and distance log- echo sounder with alarm- VHF with DSC R/T with intercom- remote control searchlight- horn button- controls for standard trim tabs
Böning system integrated with the following functionalities (displayed on separate dedicated display at helm):- Engine instrumentation (including fuel levels and fuel flow)- Digital boat alarms- Scene selection lighting controls- AC/DC control and monitoring
Drinks holders
Toughened glass screen (clear for night vision) with windscreen demist system
Windscreen wipers with freshwater windscreen wash
Black mesh windscreen covers
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB charging point
LED overhead lighting (24v) and night lighting integrated into scene selection lighting control
Pantograph helmsman’s door to starboard side deck
Timber flooring (V groove planked)

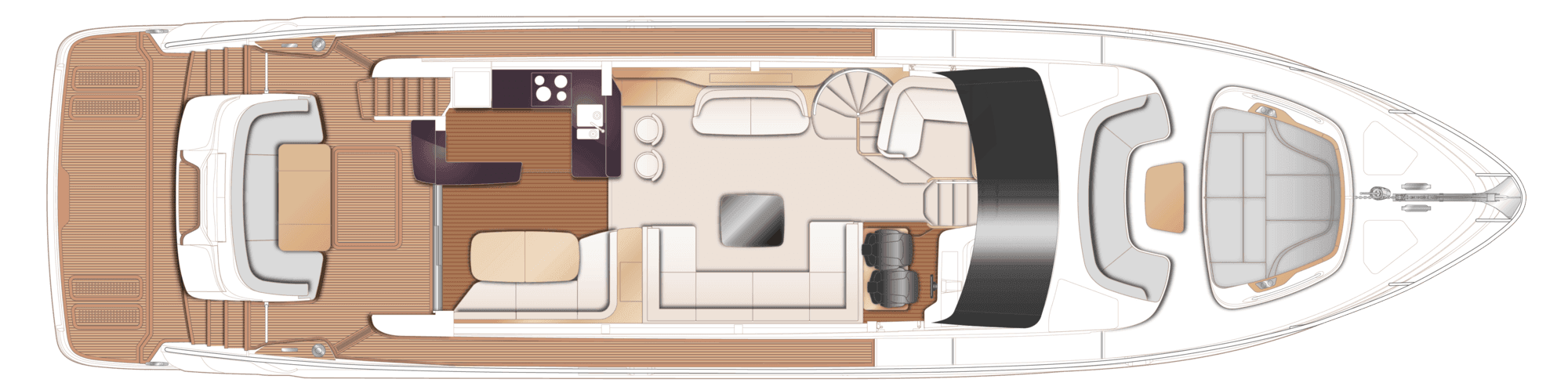

Saloon
U-shaped sofa to starboard
Coffee table
Sofa to port
L-shaped sofa opposite helm area
Sideboard unit with bottle and glass storage
Refrigerator
55" UHD LED TV on rise and fall
Naim audio system paired with speakers (2) and subwoofer
Electric drop window to port
Manual tension venetian blinds to all windows
Dimmable LED overhead and concealed lighting (24v) integrated into scene selection lighting control
Access stairway to lower accommodation
Separate access stairway to owner’s stateroom
Fitted carpet
Dining area
L-shaped sofa
Folding dining table
Occasional dining table stools (2)
Stainless steel framed sliding bi-fold door to cockpit with integrated hinging window aft of galley
Venetian blinds to windows and pleated blinds to doors
Galley
Galley worktop in choice of quartz
Bar top to saloon area
4-zone ceramic induction hob
Extractor fan
Combination microwave/convection oven with grill
Twin-bowl stainless steel sink with mixer tap
Chopping board
Full height refrigerator/deep freeze
Dishwasher
Icemaker
Waste bin
Drawers and storage cupboards
Manual tension venetian blinds to window
LED overhead and task lighting (24v) integrated into scene selection lighting control
220/240v outlets (4)

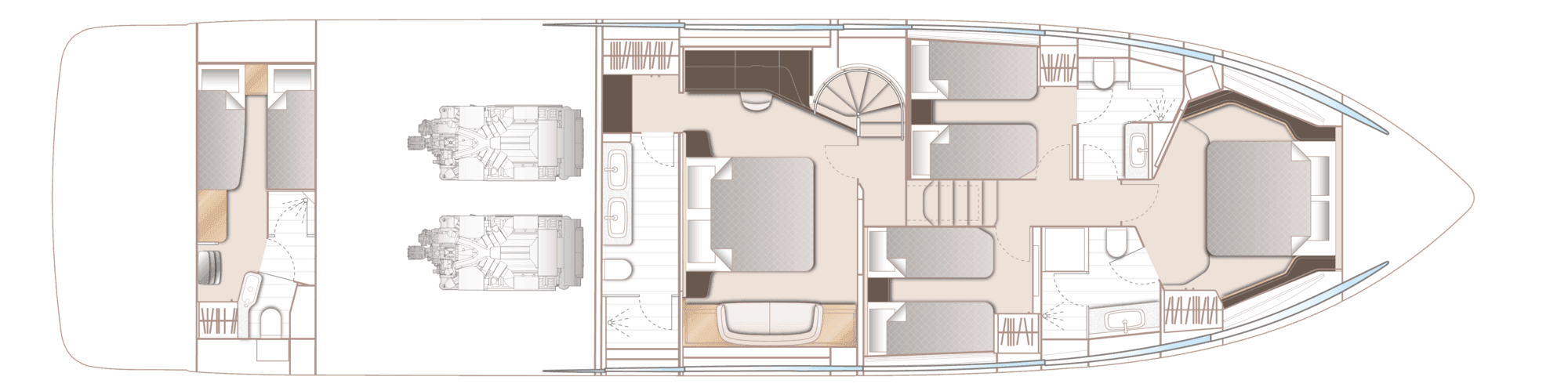

Accommodation
All cabins and bathrooms feature opening portholes and air conditioning
All cabins feature 220/240v power points
All bathrooms feature electric freshwater toilets and 240v shaver points
Owner’s stateroom lobby
Access stairway to owner’s stateroom
Panoramic window
Manual tension venetian blind
Washer/dryer with cupboard above fitted in the forward passageway in the guest accommodation (a separate washer and dryer may be optionally installed in place of the standard unit)
LED overhead and concealed lighting (24v) integrated into scene selection lighting control
Owner’s stateroom
Large double bed with drawers below
Twin bedside tables
Dressing area with wardrobes and storage
Built-in safe
Dressing table with stool
Mirror
Sofa
Storage lockers and drawers
50" UHD LED TV
Panoramic windows including opening portholes
Manual tension venetian blinds to
Individual berth lights
220/240v outlets (2)
En-suite bathroom
Twin washbasins and worktop in thermoformed solid surface
Storage lockers
Shower compartment with automatic pump out
Window with opening porthole
Bathroom accessories
Solid surface flooring
Forward stateroom
Wardrobe with shelves
Dressing table
Window with opening portholes
Deck hatch
Washbasin and worktop in thermoformed solid surface
Port and starboard guest cabins
Two single beds with drawers below (with option of double bed conversion)
Bedside table
Manual tension venetian blinds
Day access door from passageway
Crew cabin
Two single beds with storage below
Wardrobe with shelf
Transom window with venetian blind
Opening portlight
LED overhead lighting (24v)
Standard aft lazarette incorporates overhead lighting, transom window, access hatch with ladder and storage space
Access to engine room via door
Washbasin with solid surface worktop
Non-slip flooring
Power and drive systems
Engine room soundproofed
High volume air intakes
Engine room extractor fan with electronic time delay
Engine exhaust silencers and water-cooled exhausts
Engine beds integrally moulded with hull for strength and vibration absorption
Forward and aft engine room bulkheads integrally bonded
Engines flexibly mounted
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Propeller shafts in Marinemet
5-bladed propellers in nickel aluminium bronze
High speed balanced rudders
Cathodic protection for sterngear
Sterngear, engines, fuel tanks etc all electrically bonded
Bow thruster (250kgf/551lbf) with dual-station controls
Engine room lighting
Engine room access hatch and ladder
Engine room door to crew area (via crew head)
Power-assisted electro-hydraulic steering system
Electronic engine and gear shift controls
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical systems
24 Volt:
4 x heavy-duty batteries for engine starting
6 x heavy-duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
1 x 80-amp 24v battery charger and 1x combination 3.0 kW 70-amp inverter charger
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
12v voltage dropper for certain navigation and radio circuits
Princess Connect telemetry and maintenance system
220/240 Volt:
22.5kW generator in own sound shield with water-cooled and specially silenced exhaust
Automatic fire extinguisher
63-amp shore support inlet
Generator/shore support change-over switch
Polarity check system
Earth leakage safety trip
Power points (240v) in: owner’s stateroom, guest cabins, galley and saloon area
Shaver points in all bathrooms
Smoke detectors (galley, stateroom, lower lobby and crew area)
Böning system
Air conditioning
Air conditioning/heating reverse cycle 128,000 BTU chiller with 128,000 BTU fan capacity suitable for ambient temperature to 40°C (e.g. Tropical)
Controls in all cabins and outlets in all areas (includes outlets in bathrooms and crew cabin)
Standard 22.5kW generator is suitable (this has sufficient capacity for Gyro stabilisers as well as air conditioning)
Fuel system
Fuel tanks (in NS8 marine grade alloy) with interconnection system giving 990 gal / 1,189 US gal / 4,500l capacity
Fuel fillers on port and starboard side decks
High-capacity duplex fuel filters with water traps and change-over valves, water warning sensors connected to warning lights at lower helm
Remote fuel cocks in cockpit locker
Fuel gauges at main helm console
Water system
Water tanks totalling 184 gal / 221 US gal / 836l plus 16 gal /19 US gal / 73l hot water calorifier
Water heated by engines and 240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric freshwater toilet system with 88 gal / 106 US gal / 400l holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
Fire extinguishers
Automatic/manual override fire extinguishers in engine room
Hand operated fire extinguishers (7) in owner’s stateroom, forward stateroom, port and starboard guest cabins, galley, lower helm position and aft cabin
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2), rudder area and forward accommodation (6 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at flybridge helm
Other standard equipment
Ensign staff
Fenders (8)
Mooring warps (4)
Boat hook
First-aid kit
Tool kit
Owner’s manual and engine manual
Bed cover supplied to all cabins (except optional crew cabin)
Set of towels (8 large, 8 hand)
Set of crystal glassware (8 settings consisting of tumbler and wine glasses)
Set of Princess china (8 settings)
Set of cutlery (8 settings of David Mellor “Paris” cutlery 7 pieces)
Ship’s document case
Anchor winch back up handle
Finishes
Teak-laid decks to transom platform, steps to flybridge and flybridge
Timber floor (V groove planked) to galley, dining area and helm
Furniture in Rovere oak with satin finish as standard. Optional finishes include ash or silver oak with a satin finish or walnut wood in a satin or gloss finish
Solid surface floors in all bathroom suites
Thermoformed solid surface wash basin counter tops in all bathroom suites
Galley worktop in quartz
Choice of high-quality carpet and upholstery fabric from extensive range
Blinds or sunscreens to all windows, doors and portholes
Crew cabin has boat timber furnishings and timber flooring, crew bathroom floor is solid surface with solid surface countertops
