Layouts and Specification
Length overall (incl. pulpit)
95 ft 6 in / 29.10m
Length overall (excl. pulpit)
93 ft 9 in / 28.58m
Beam
22 ft 0 in / 6.70m
Draft
7 ft 0 in / 2.13m
Displacement approx.
101,197 kg / 223,101 lbs*
Fuel capacity
3,040 gal / 3,650 US gal / 13,818 l
Water capacity (excl. calorifier)
410 gal / 492 US gal / 1,865 l
Black water tank
160 gal / 192 US gal / 727 l
Twin MAN V12-1900 (2 x 1,900mhp)
Maximum speed range – 20-22 knots†
Twin MAN V12-2000 (2 x 2,000mhp)
Maximum speed range – 21-23 knots†
Deck fittings
6mm teak-laid transom platform, transom steps, cockpit deck, stairway to flybridge, side decks, steps to foredeck, flybridge deck and foredeck walkthrough areas
Reversible hydraulic anchor winches with bridge controls (Lewmar V8)
Anchor pockets with anchor launch and retrieve
Twin anchor system incorporating two 125kg galvanised kedge anchor with 100m of 14mm galvanised chain
Deck chain stoppers (2)
Mooring bollards forward (4)
Mooring bollards aft (6)
Mooring bollards mid-ship (1 per side)
Twin electric sternline mooring winches (Lewmar C6)
Deck hatch access to chain, Bosuns and fender storage locker (locking, with access ladder)
Freshwater deck/anchor wash (with both fore and aft deck outlets) (bow deckwash locker, starboard side under transom steps) (quick release bayonet fitting)
Stainless steel bow and stern fairleads
Stainless-steel foredeck guard rails
Stainless steel flybridge handrails
PVC rubbing band with stainless-steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Twin beam searchlight with remote controls (located on hardtop/radar arch)
Loudhailer (located on mast)
Stern docking lights (on underside of canopy/flybridge overhang)
Twin electric horns (located on mast)
Fuel and water fillers (fuel: main deck, port and starboard, water: starboard side)
Cockpit and bathing platform
Self-draining
Upholstered U-shaped seating with storage below (non-locking)
Teak dining table with removable central leaf section paired with 2 dining chairs
LED overhead and deck level lighting
Stainless-steel handrails
Stern docking station controls on starboard side including thruster controls and emergency engine stop Rexroth control as standard
Remote control 5.47m telescopic passerelle with folding handrails
Watertight (double D sealed) hinged locking door giving access from transom into garage / optional beach club area
Engine room to cockpit escape hatch
Garage (to take wet-bike up to 3.05m) with electro-hydraulic door and manual wet-bike launch system with additional storage for SEABOBs (2 max, starboard bulkhead mounted rack)
Rope storage locker (non-locking)
Starboard locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Integral stairway to flybridge with teak step treads
Twin glazed transom gates leading to bathing platform
Electro-hydraulic teak laid transformer bathing platform (1000Kg SWL)
Retractable bathing ladder (manual) in side of bathing platform
Hot and cold transom shower
Three phase shore support inlet (380v-415v / 42kVa @50Hz) with Glendinning cablemaster (15m/50ft) and a single-phase shore power inlet (220-240v / 15kVa @ 50Hz. Both shore supports with isolation transformers. (US Spec single phase 2 x 100A @ 60Hz)
Cockpit table cover, U-shaped seat cover & dining chairs cover
Optional wetbar unit with wash basin
Port side deck lockable access and stairway to crew accommodation

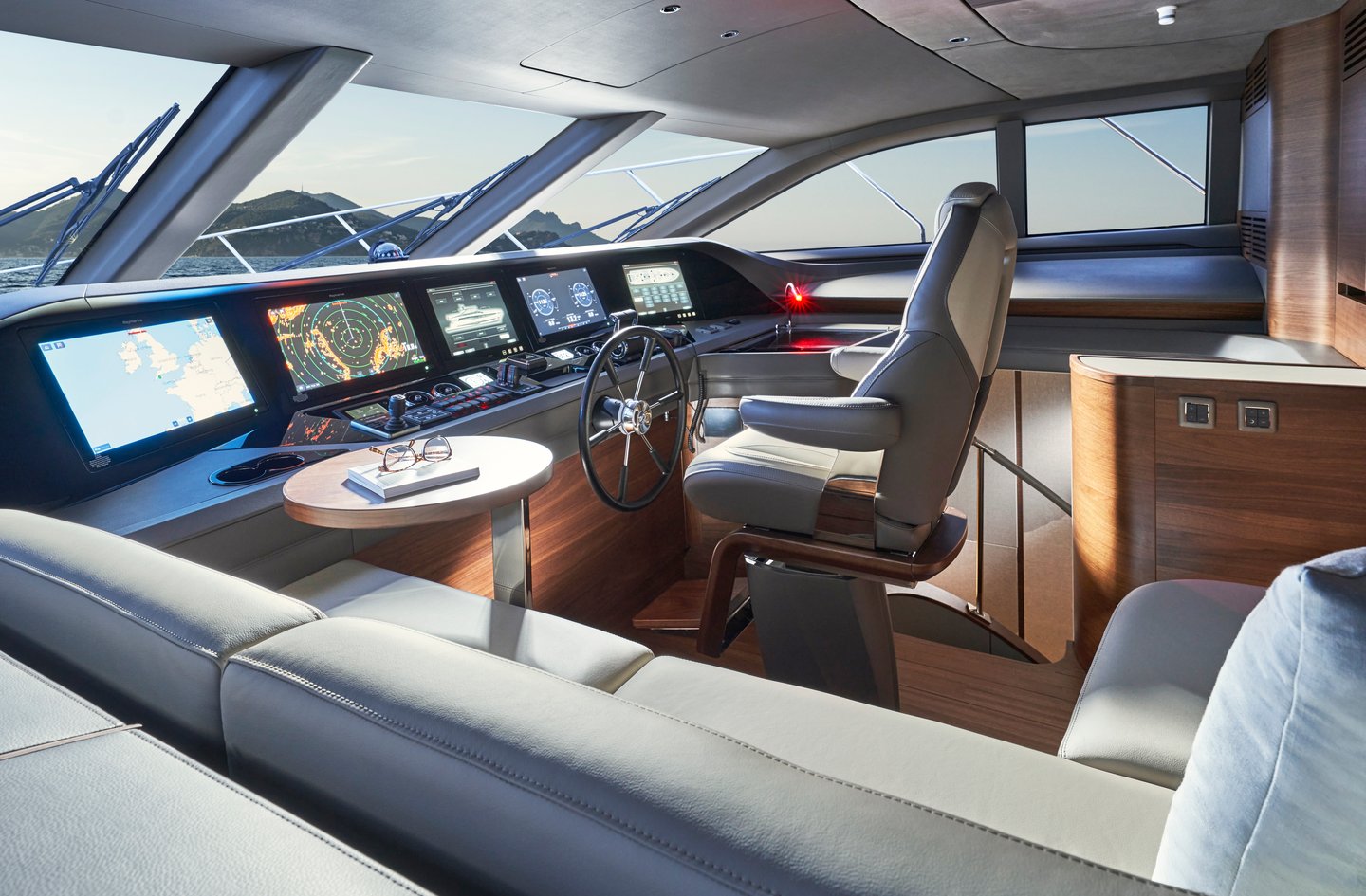

Helm
Enclosed pilot house with central leather upholstered slim-line helm seat with arm rests.
L-shaped companion seating to port with table
Sliding companionway door to flybridge
Instrument console with LED display incorporating engine instruments, CCTV linked to Böning screens, fuel gauges, alarms and rudder position indicator
Dual station helm position instrument and controls- power-assisted electro-hydraulic steering (SeaStar) - steering wheel- high-speed magnetic compass- electronic engine controls- bow thruster control- hydraulic anchor winch remote control- colour radar (with scanner) and GPS/chart plotter (twin 19” displays)- autopilot- speed and distance log- echo sounder with alarm- VHF with DSC R/T with intercom-remote control dual searchlight- horn button (to operate twin electric horns)- Bilge pump controls with audible and visual alarms- engine room fire extinguisher warning system
Automatic fog horn with loudhailer
Chart storage
Drink holders
Toughened glass screen (clear for night vision) with windscreen de-mist system
Windscreen wipers with freshwater windscreen wash
Exterior black mesh windscreen covers
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB charging points (2)
Dimmable LED overhead, concealed lighting (24v) and night lighting with scene selection
Timber flooring (V groove planked)

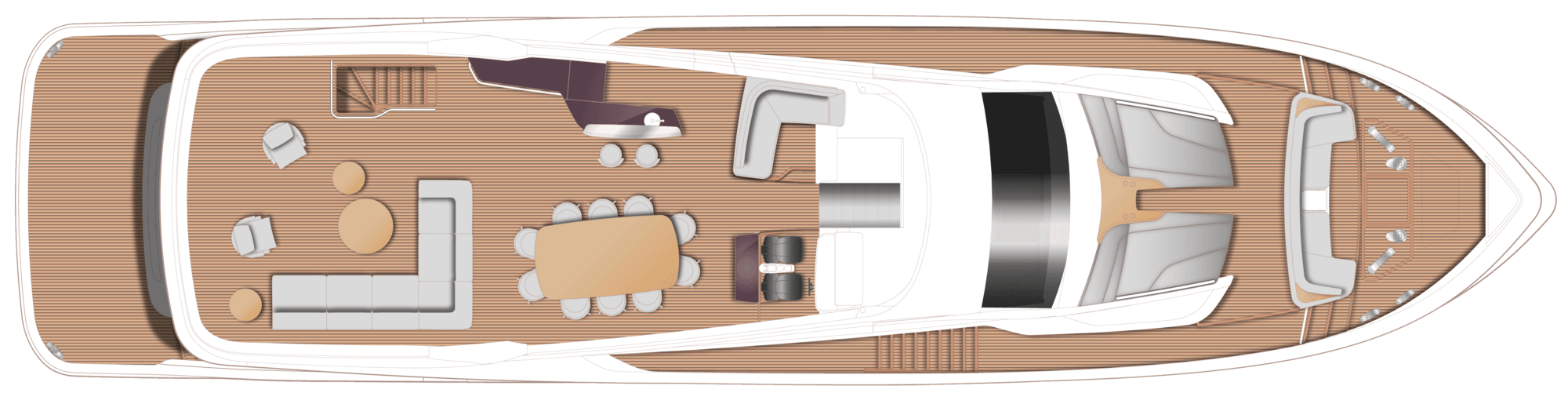

Flybridge and foredeck
Instrument console with dual station controls and LED display incorporating engine instruments, fuel gauges, alarms and rudder position indicator
GPS chart plotter (19” display)
Twin helm and navigator seats with fore and aft adjustment
Foredeck area with U-shaped seating and storage locker
Glazed panels in foredeck to allow light through to main deck owner's cabin below
Foredeck sunbathing area with twin sunpads and integrated adjustable headrests and storage locker
Port side pantograph door giving deck access directly from foredeck to flybridge
Flybridge aft deck area with free standing furniture
Dining table with chairs to accommodate 10 persons
Port forward L-shaped seating area with cupholders
Naim Uniti Star audio system with waterproof speakers (4)
Clear view hatch to aft cockpit
Access stairway to aft cockpit
Stainless-steel handrails with glass balustrade to aft flybridge deck
Port wetbar unit with twin barbecue, sink, drawer refrigerator, bin and storage
Starboard servery unit with storage
Liferaft deployment system integrated into port and starboard coaming
GRP radar arch
Radar mast
Twin matching whip aerials for VHF R/T and radio
Covers to exterior furniture where appropriate
Optional crane (1,000kg SWL) concealed in starboard coaming
Optional GRP hardtop

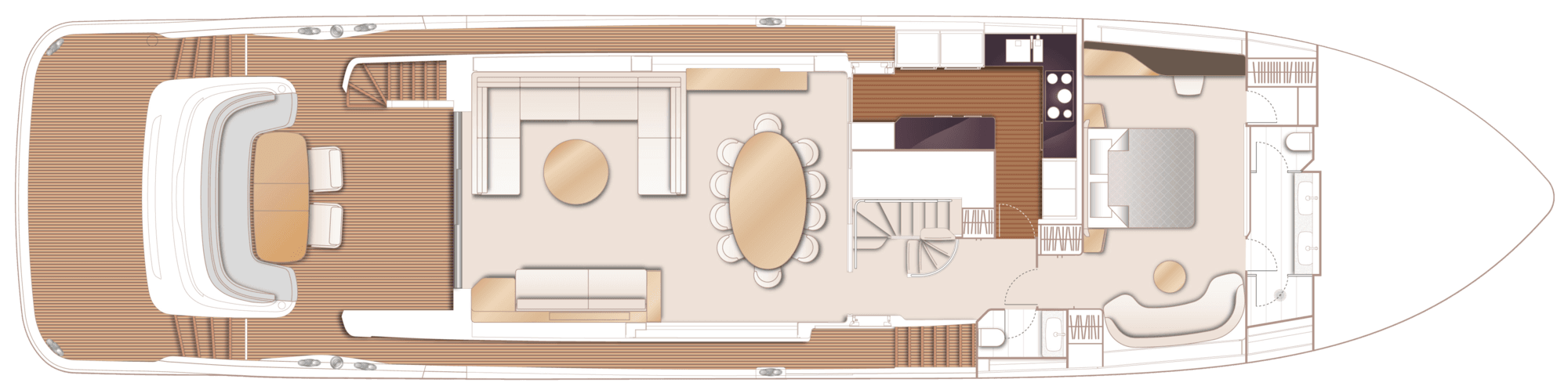

Saloon
Large sofa to port with storage below
Sofa to starboard with storage below
Coffee table
65” 4K UHD LED TV on rise and fall.
Naim Uniti Star system with Focal 100 ICW6 speakers (4) and Focal Cub Evo subwoofer
Panoramic tinted toughened glass windows port and starboard
Triple stainless-steel framed cockpit doors
Access to main deck lobby
Dimmable LED overhead and concealed lighting with scene selection
220/240v outlets (4)
USB charging points (4)
Electric roller blinds to outboard windows
Manual curtains on wave track to aft patio doors
Fitted carpet
Dining area
Dining table with dining chairs (10)
Servery unit with integrated drinks refrigerator, bottle storage and icemaker
Electric blinds to windows
Half height glazing to port and full height glazing to starboard
Galley
Enclosed galley
Galley unit counter tops in choice of granite or quartz
5-zone induction hob
900mm wide conventional oven
Combination convection/microwave oven with grill
Twin full height refrigeration units with deep freeze drawers
Ice maker (in freezers)
Twin stainless-steel sinks with mixer tap
Chopping board
12 place dishwasher
Waste bin
High- and low-level storage cupboards and drawers
Extractor fan
Cutlery and crockery storage
Space for optional wine cooler
Manual sliding access doorway to deck saloon/dining area
Watertight hinged access door to port side deck
220/240v power outlets (4)
Electric roller blinds to windows
Bulkhead between galley to owner's stateroom to include insulation layers
Main deck lobby
Access stairway to pilothouse
Access stairway to lower accommodation
Storage lockers including space for additional dining chairs when table not extended (under stairs, aft of day head)
Watertight pantograph access door to starboard side deck
220/240v outlet (1)
Dimmable LED overhead concealed lighting (24v) with scene selection
Electric blind to window
Day head
Electric freshwater toilet
Wash hand basin and counter top in thermoformed solid surface
Storage cupboard
Panoramic tinted toughened glass window
Manual tension venetian blinds
Marble/granite/quartz floor

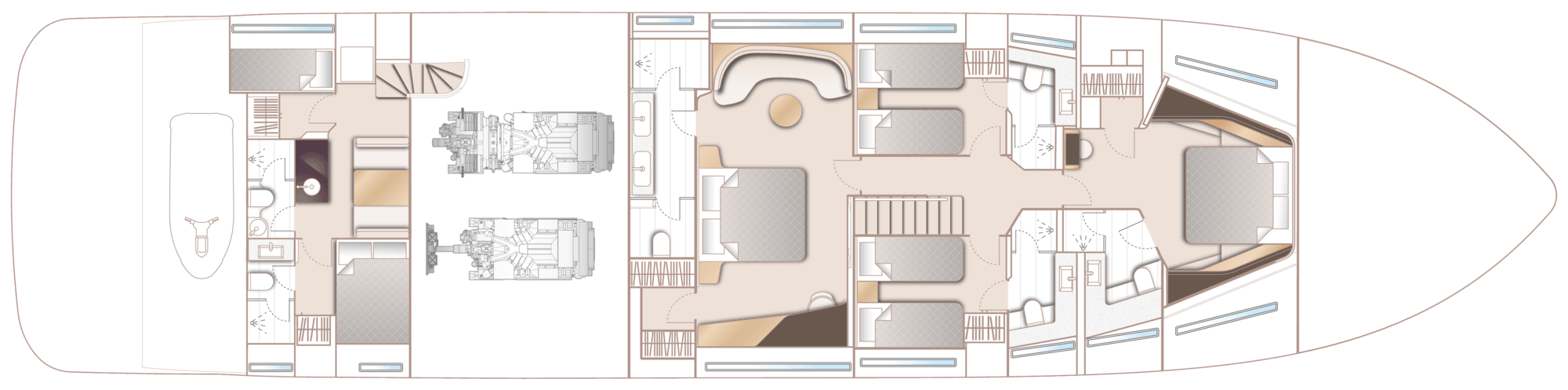

Accommodation
All cabins and bathrooms feature opening portholes and air conditioning
All cabins feature 220/240v power points
All en-suites feature 240v shaver points
Main deck owner's stateroom
Large double bed with bedside tables and drawers below
Dressing area with full length mirror, hanging, shelf and drawer storage
Wardrobes
Built-in safe
Port dressing table with integrated mirror, chair, storage drawers and cupboards
Starboard seating area with sofa and storage below and coffee table
65” 4K UHD LED TV
Naim Uniti Atom audio system with speakers (2) and subwoofer
Panoramic windows including opening portholes
Electric roman blinds and manual sheer roller blinds to hull windows
Dimmable LED overhead and concealed lighting (24v) with scene selection
Individual berth lights
En-suite bathroom
Twin washbasins and counter top in thermoformed solid surface
Mirror
Storage lockers
Separate compartment with toilet
Shower compartment with automatic pump out
Window with opening porthole
Manual tension venetian blind
LED overhead and concealed lighting (24V)
Bathroom accessories
Marble/granite/quartz to floor and specified bulkheads
Aft stateroom
Starboard dressing table with integrated mirror, chair, storage drawers and cupboards
Portside seating area with sofa and storage below and coffee table
55” 4K UHD LED TV
Electric roman blinds to hull windows, with out-board manual sheer roller blind
Dimmable LED overhead and concealed 24v lighting with scene selection
Twin washbasin and counter top in thermoformed solid surface
Separate compartment with toilet and option of bidet
LED overhead and concealed lighting (24v)
Forward stateroom
Large double bed with drawers below
Walk-in wardrobe with shelves
Dressing table with chair
43” UHD LED TV
Naim Uniti Atom audio system with ceiling mounted Focal 100 ICW6 speakers (2)
Windows with opening portholes
Electric roman blinds to hull windows
220/240v outlets (2)
Washbasin and counter top in thermoformed solid surface
Marble/granite/quartz flooring
Starboard guest cabin
Two single beds with drawers below (with option of double bed conversion)
Bedside table
Wardrobe with shelves
Window with opening portholes
Electric roman blind to hull window
Dimmable LED overhead and concealed (24v) lighting with scene selection
Optional pullman berth
220/240v outlets (1)
USB charging point (2)
Port guest cabin
Deck hatch
Lower accommodation lobby
Linen cupboard below companionway stairs
Space for optional washer/dryer below companionway stairs
Crew quarters
Standard transom configuration is a transom garage with Captain’s double cabin and en-suite, second crew bunk cabin, aft bathroom, crew mess and dining area.
Optional transom configuration is a beach club with Captain’s double cabin (with en-suite), crew bunk cabin, central bathroom, and aft beach club/dinette.
All lower crew furniture is in white finish, with solid surface Carrera White (gloss finish) bathroom vanity unit tops and solid surface Koko White (satin finish) bathroom floors (non-slip flooring
CAPTAIN’S CABIN
Double berth with storage below
Wardrobe with shelf
Opening porthole and venetian blind
Emergency deck hatch access to cockpit
LED overhead lighting (24v)
Individual berth light
Washbasin with Carrera White (gloss finish) solid surface counter top
Porthole with venetian blind
Solid surface flooring in Koko White (satin finish)
Crew cabin
Single bunk beds (2)
Crew bathroom
Solid surface flooring in Koko white (satin finish)
Crew area
Access from port side deck (also transom door with optional beach club)
Access to engine room
Storage space, cupboards and lockers
Dinette with table
Crew mess with microwave with grill, sink, refrigerator and waste bin
Solid surface counter top in Ice Crystal (satin finish)
Washing machine and separate tumble dryer
Non-slip flooring
Power and drive systems
High volume air intakes
Engine room extractor fan with electronic time delay
Engine exhaust silencers and water-cooled exhausts
Engine beds integrally moulded with hull for strength and vibration absorption
Forward and aft engine room bulkheads integrally bonded including acoustafoam layers
Engines flexibly mounted
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Propeller shafts produced from Marinemet
5-bladed propellers in nickel aluminium bronze
High speed balanced rudders
Cathodic protection for sterngear
Sterngear, engines, fuel tank fillers, etc all electrically bonded
Engine room lighting
Engine room access from port side deck via crew area and from cockpit deck
Power-assisted electro-hydraulic steering system
Electronic engine and gear shift controls
Bow thruster with dual-station controls (Sleipner 550kgf)
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical systems
24 Volt:
4 x heavy duty batteries for engine starting
6 x heavy duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
1 x 100 amp charger, 1x 100 amp-3500W charger/inverter & 1x 25amp charger (for generator battery).
Remote battery isolator control switches at main switch panel position
Circuit breakers on all circuits
24v to 12v converters for certain navigation and radio circuits
Galvanic isolation system
CCTV system with camera in aft cockpit and fixed cameras in engine room (2) linked to Böning system
Princess Connect telemetry and maintenance system
220/240 Volt:
European specification: 2 x 40kW @ 50Hz Onan diesel generators in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel
USA specification: 2 x 40kW @ 60Hz Onan diesel generators in own sound shields, water cooled and with specially silenced exhaust systems and with remote operation from main control panel
Three phase shore inlet (380v-415v / 42kVa @50Hz) with Glendinning cablemaster (15m/50ft) and a single-phase shore power inlet (220-240v / 15kVa @ 50Hz. Both shore supports with isolation transformers. (US Spec single phase 2 x 100 amp @ 60Hz)
Shore power/generator change over control operated from main control panel
Polarity check system
Earth leakage safety trip, circuit breakers on all circuits
Power points (240v) in all cabins and living areas, helm position and galley
240v shaver points in washrooms
3kW immersion heater for fresh water (2)
Fuel system
Main fuel tank with fuel polishing transfer system to day tank giving a total 3,040 gal / 3,650 US gal / 13,818l of fuel capacity (forward fuel bunker tank 4,866 l and main fuel bunker tank 8,008l plus day fuel tank 944l)
Fuel fillers to port and starboard
High capacity duplex fuel filters/water traps with integral changeover valves and water sensors connected to alarms at helm position
Remote fuel isolation controls in cockpit locker for main engines and generators
Fuel gauges at helm position
Air conditioning system
Air conditioning/heating reverse cycle 300,000 BTU fan capacity with 216,000 BTU chiller capacity suitable for temperatures to 40°C (tropical)
Windscreen demist facility
Outlets in all areas
Water system
Water tanks giving 1,865l capacity plus 205l hot water calorifier
Automatic water pump with filter
Water level gauge
Deck filler
Pump circuit breaker at main switch panel
Electric freshwater toilet system linked to 720l holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
Grey water to take waste water from interior sinks/showers, washing machine(s) and dishwasher. Galley sink to have Y valve fitted to allow waste overboard or to grey water tank. Exterior sinks will drain overboard.
Bilge pumps
Automatic/manual override electric bilge pumps in engine room, rudder area, forward accommodation, crew area and chain locker
High capacity manual bilge system with suction points in the same areas
Electric bilge pumps have controls and warning lights with audible alarm at helm position
Extinguishers / fire control systems
Automatic engine room fire extinguisher system (with manual override) and warning system at helm position providing automatic shutdown of engines, generators and ventilation fans
Manually operated engine room air shutoff system
Hand operated fire extinguishers in all guest cabins, galley, crew quarters and flybridge
Other standard equipment
Ensign staff
Fenders (8)
Mooring warps (4)
First-aid kit
Set of towels (10 large, 10 hand)
Quilted bed covers supplied to all cabins (except crew cabins)
Complete set of Lucrezia cut crystal glassware (12 settings consisting of tumbler, highball and wine glasses)
Set of Sous Le Soleil crockery (10 settings consisting of plate, cake plate, dessert plate, bowl, cup and saucer)
Set of stainless steel cutlery (10 settings of David Mellor “Paris” cutlery 7 pieces)
Tool kit
Boat hook
Owner’s manual and engine manual
Ship’s document case
Black mesh windscreen covers
Dynamat applied in the following locations
Crews aft engine room bulkhead
Crew deck head
Forward main deck owner's/dining area deck head
Finishes
Teak-laid decks to all external deck areas (including flybridge)
Timber floor (V groove planked) to galley and wheelhouse as standard (wheelhouse in Newport oak as standard)
Furniture in Rovere oak with satin finish as standard. Optional finishes include ash or silver oak with a satin finish or walnut wood in a satin or gloss finish
Marble, quartz or granite floors in all bathroom suites in guest accommodation (including day head)
Thermo-formed solid surface wash basins and counter tops in all bathroom suites and day head
Galley counter top in granite or quartz as standard (some options carry additional premiums)
Choice of high-quality carpets and fabrics from extensive range
Curtains, blinds or sunscreens to all windows and portholes (except pantograph doors and wheelhouse)
Crew cabins have fitted carpet, crew bathrooms have solid surface floors and counter tops
Non-slip flooring to crew mess and passageway
