Layouts and Specification
Length overall (incl. pulpit)
86 ft 0 in / 26.20m
Length overall (excl. pulpit)
84 ft 8 in / 25.79m
Beam
20 ft 7 in / 6.29m
Draft
6 ft 2 in / 1.89m
Displacement approx.
69,852 kg / 153,997 lbs*
Fuel capacity
2,406 gal / 2,890 US gal / 10,940 l
Water capacity (excl. calorifier)
285 gal / 343 US gal / 1,297 l
Black water tank
130 gal / 156 US gal / 592 l
Twin MAN V12-1900 (2 x 1,900mhp)
Maximum speed range – 28-30 knots†
Deck fittings
Teak-laid transom platform, cockpit deck, flybridge, flybridge stairway, side decks and foredeck walkthrough
Reversible hydraulic anchor winches with foredeck, main helm and flybridge controls
Stemhead roller with manual anchor launch and retrieve
Twin anchor system incorporating a primary 80kg galvanised claw anchor with 100m of 14mm galvanised chain and a secondary 50kg Galvanised Claw anchor with 70m of 14mm galvanised chain
Twin electric sternline mooring winches
Deck hatch access to chain locker
Bow rope stowage locker
Freshwater deck/anchor wash (with both fore and aft deck outlets)
Stainless steel bow and stern fairleads
Stainless steel bow, stern and spring cleats (2 pairs)
Stainless steel pulpit and guard rails
Stainless steel coachroof and flybridge handrails
Foredeck escape hatch
Foredeck U-shaped seating area
Foredeck sunbathing area with integrated adjustable teak headrests and storage
Twin coachroof lockers for storage of fenders, ropes and cushions
PVC rubbing band with stainless steel insert
LED deck level lighting
Full set of IMCO navigation lights
Riding light
Twin beam searchlight with dual station remote controls
Loudhailer
Stern docking lights
Twin electric horn
Fuel and water fillers
Aft cockpit and bathing platform
Self-draining
Upholstered U-shaped seating
Folding teak table
LED overhead and deck level lighting
Stainless steel handrails
Remote control 4.4m telescopic passerelle with folding handrails
Watertight pantograph doors giving direct access from starboard side deck and transom to crew cabin /engine room
Rope storage lockers
Locker containing remote fuel cocks, manual bilge pump with valve chest and manual controls for automatic fire extinguishers
Integral stairway to flybridge with teak step treads
Twin transom gates leading to bathing platform
Electro-hydraulic raise/lower teak laid bathing platform (550kg SWL)
Retractable bathing ladder (manual) in side of hydraulic platform
Transom access to lazarette
Transom steps to access stern from bathing platform when in lowered position
Keyway plates and sliders to enable later fitting of dinghy chocks
Hot and cold transom shower
220/240v shore support inlets
Cockpit canvas cover

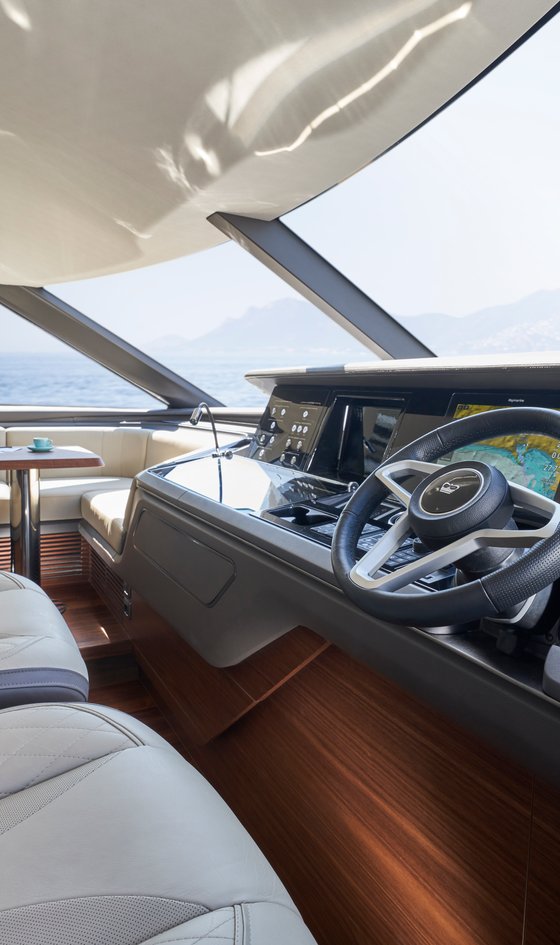

Wheelhouse
Leather upholstered new style helm seats with electric fore and aft adjustment for helmsman
Leather upholstered navigator’s seat with manual fore and aft adjustment
U-shaped seating area to port with table
Instrument console with LED display incorporating engine instruments, fuel gauges, alarms and rudder position indicator
Dual station instruments and controls at Flybridge and Lower Helm Positions:- power-assisted electro-hydraulic steering- adjustable steering wheel- high-speed magnetic compass- electronic engine controls- trim tab controls with indicators- bow thruster control- hydraulic anchor winch remote control- colour radar (with scanner) and GPS/chartploter (twin displays at lower helm)- autopilot- speed and distance log- echo sounder with alarm- VHF with DSC R/T with intercom- remote control searchlight- horn button
Intercom to flybridge (through VHF handset)
Automatic fog horn with loudhailer
Chart storage
Drinks holders
Toughened glass screen (clear for night vision) with windscreen de-mist system
Windscreen wipers with freshwater windscreen wash
Black mesh sunscreens
Bilge pump controls with visual pump running warnings
24v and 240v electrical control panel
Riding light, helm and navigation light control switches
USB charging points (2)
LED overhead lighting (24v) and night lighting
Pantograph helmsman’s door to starboard side deck
Electric drop window to port
Timber flooring (V groove planked)

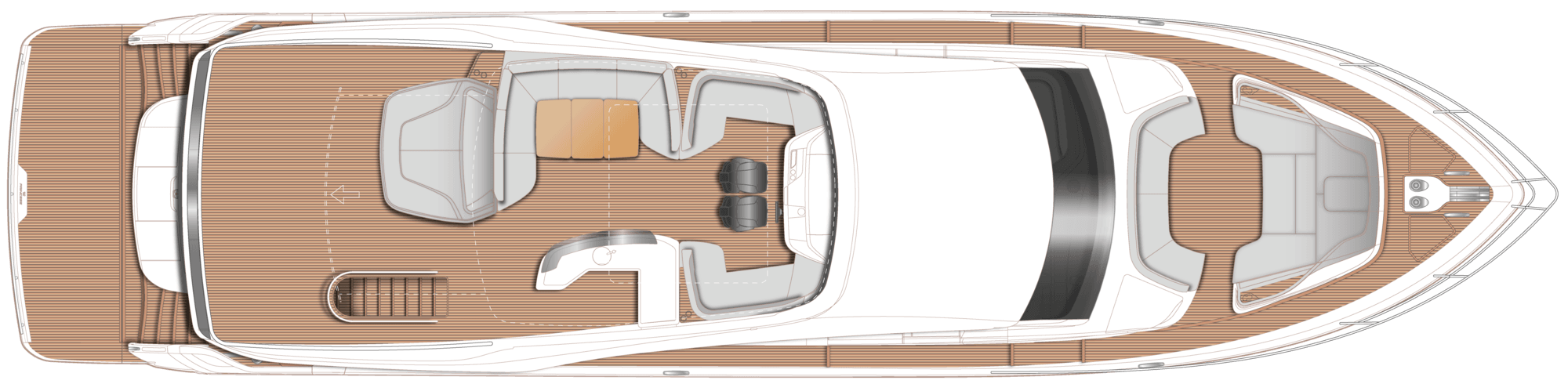

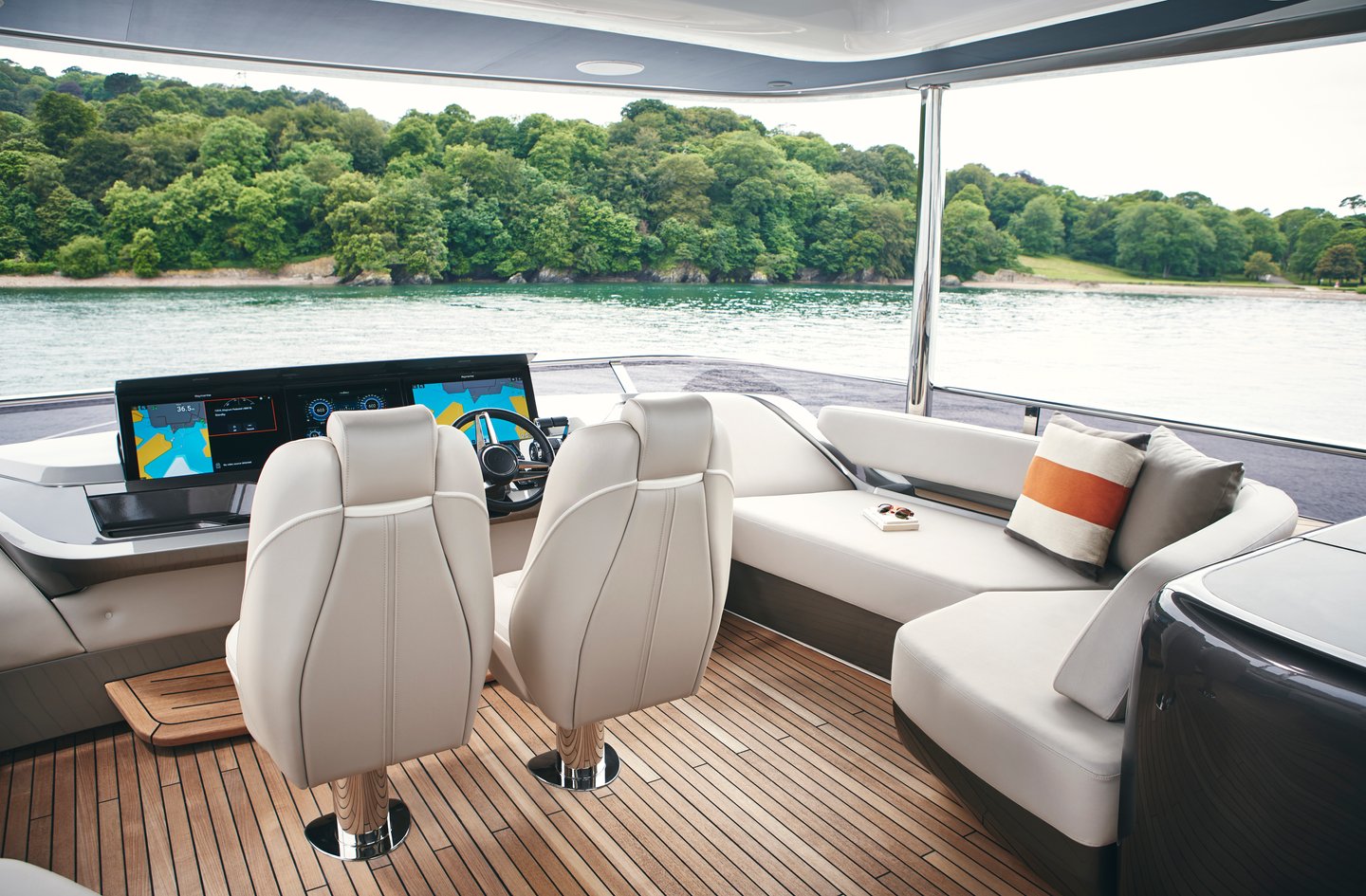

Flybridge
Instrument consoles with dual station controls and LED display incorporating engine instruments, fuel gauges, alarms and rudder position indicator
Helm position with hydraulically raised instrument console
Power assisted electro-hydraulic steering with adjustable wheel
Audible and visual alarm for bilge pumps
Engine room fire extinguisher warning system
Twin adjustable new style helm seats
Port and starboard forward-facing L shaped seating
Large U-shaped upholstered seating
Wetbar with double barbecue, sink, drawer refrigerator, waste bin and storage
Sunbed aft with storage below
Naim Uniti Atom audio system with waterproof speakers (2)
Clear view hatch to aft cockpit
Wind deflector screens
Stainless steel handrails with glass balustrade and teak capping to aft end of flybridge
Liferaft stowage
GRP radar arch
Twin matching whip aerials for VHF R/T and radio
Console and seat covers
Optional crane (550kg SWL)
Optional GRP hardtop with/without electric rotating louvered opening section or glass panels (or optional folding bimini with electro-hydraulic operation)

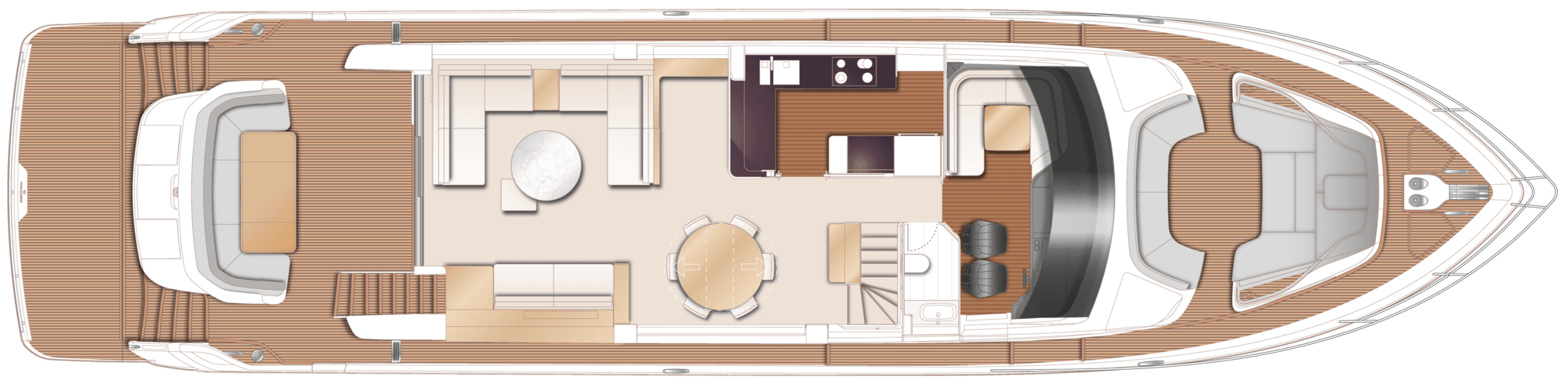

Deck saloon
Twin L-shaped sofas to port with storage below
Coffee table
Bruton pouf
Two-seater sofa to starboard
Storage units
TV on rise and fall (55")
Naim Uniti Star audio system with ceiling mounted speakers (4)
Triple stainless steel framed sliding door to aft cockpit
Electric roller sheer blinds to outboard windows
Manual curtains on wave track to doors
LED overhead and concealed lighting (24v)
220/240v outlets (4)
Fitted carpet
Dining area
Expandable dining table
Dining chairs (8)
Bookcase on starboard side
Furniture unit with bottle and glass storage on port side
Refrigerator
Full height panoramic window
Electric roller sheer blinds to forward starboard window
Manual curtains on wave track to panoramic window
Stairway to lower accommodation
Galley
Galley unit counter tops in choice of granite or quartz
Open bar/servery layout with powered electric screen to fully enclose galley and sliding door
4-zone induction hob
Extractor fan
Combination microwave/convection oven with grill
Twin-bowl stainless steel sink with mixer tap
Chopping board
Full height refrigerator/deep freezer
Dishwasher
Icemaker
Waste bin
Drawers and storage cupboards
Electric roller blinds to window
Pantograph door to port side deck
LED overhead and task lighting (24v)
Day head
Electric freshwater toilet
Wash hand basin and vanity top in thermoformed solid surface
Storage cupboard
Manual tension venetian blind
Marble/granite/quartz floor

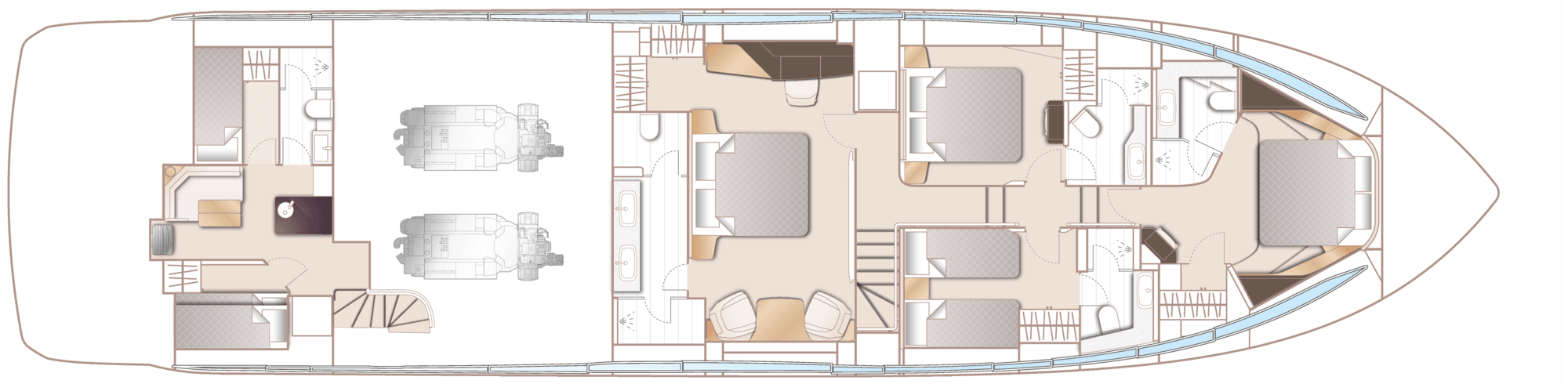

Accommodation
All cabins and bathrooms feature opening portholes (except port bathroom) and air conditioning outlets
All cabins feature 220/240v power points
All en-suites feature 240v shaver points
Owner’s stateroom lobby
Storage space for optional washer/dryer or wine cooler
Owner’s stateroom
Large double bed with drawers below
Twin bedside tables
Dressing area with wardrobes and storage
Built in safe
Dressing table with chair (doubles as additional dining chair) to port
Mirror
Occasional table with seats fore and aft to starboard
Storage lockers and drawers
TV (55”)
Naim Uniti Atom audio system with speakers (2) and subwoofer
Electric roman blinds and manual sheer roller blinds to hull windows
Panoramic windows including opening portholes
Individual berth lights
220/240v outlets (6)
En-suite bathroom
Twin wash basins and vanity top in thermoformed solid surface
Storage lockers
Separate compartment with toilet and option of bidet
Shower compartment with automatic pump out
Heated towel rail
Window with opening porthole
Bathroom accessories
Marble/granite /quartz to floor and specified bulkheads
Forward stateroom
Walk-in wardrobe with shelves
Dressing table with stool
TV (32")
Naim Uniti Atom sound system, paired with ceiling mounted speakers (2)
Windows with opening portholes with electric roman blinds
Deck hatch
220/240v outlets (2)
Wash basin and vanity top in thermoformed solid surface
Marble/granite/quartz flooring and specified bulkhead
Starboard guest cabin
Two single beds with drawers below (with option of double bed conversion)
Bedside table
Wardrobe with shelves
Window with opening portholes
Electric roman blinds
Marble/granite/quartz flooring
Port guest cabin
Large double bed with drawers
Crew quarters
All lower deck crew furniture is in white laminate finish, with white solid surface bathroom unit vanity tops and bathroom floors
Captain’s cabin
Single bed with storage below (option of additional berth above)
Wardrobe with shelf
Opening porthole and venetian blind
LED overhead lighting (24v)
Individual berth light
Crew cabin
Two single beds with storage below
Crew bathroom
Wash basin with solid surface vanity top
Solid Surface flooring
Utility/crew area
Access from transom door and starboard side deck
Access to engine room
Storage space, cupboards and lockers
Dinette sofa with folding table
Crew mess with microwave, sink, refrigerator and waste bin
Solid surface counter top
Washing machine and separate tumble dryer
Non-slip safety flooring
Power and drive systems
Engine room soundproofed
High volume air intakes
Engine room extractor fan with electronic time delay
Engine exhaust silencers and water-cooled exhausts
Engine beds integrally moulded with hull for strength and vibration absorption
Forward and aft engine room bulkheads integrally bonded
Engines flexibly mounted
Automatic fire extinguisher with remote override control
Automatic and manual bilge pumps
Propeller shafts in Marinemet
5-bladed propellers in nickel aluminium bronze
High speed balanced rudders
Cathodic protection for sterngear
Sterngear, engines, fuel tank fillers all electrically bonded
Engine room lighting
Engine room access from crew area and from starboard side deck and transom via crew area
Power-assisted electro-hydraulic steering system
Trim tabs with indicators
Electronic engine and gear shift controls
Bow thruster (340 kgF/749 lbF) with dual-station controls
Fresh water supply point in engine room
Dripless self-aligning shaft seals
Electrical systems
24 Volt:
4 x heavy-duty batteries for engine starting and windlass operation
6 x heavy-duty auxiliary batteries
Battery link facility with remote control at helm position
Both battery banks are charged using a voltage sensitive relay that parallels both battery banks when a charging source is present
1x 80-amp 24v battery chargers and 1x combination 3.5kW inverter/100-amp charger and 1x 25-amp charger (for generator battery)
Remote battery master switches with control switch at main switch panel
Circuit breakers on all circuits
24v to 12v voltage dropper for certain navigation and radio circuits
Princess Connect telemetry and maintenance system
220/240 Volt:
27kW generator in own sound shield with water-cooled and specially silenced exhaust
2 x 63-amp shore support inlet
Generator/shore support change-over switch
Polarity check system
Earth leakage safety trip
Power points (240v) in: owner’s stateroom, guest cabins, galley and saloon area
Shaver points in all bathrooms
Fuel system
Total fuel capacity is 2,406 gal/2,890 US gal/10,940l comprising 8,040l main tank and 2 x 1,450l day tanks
Fuel polishing transfer system to day tanks with water and vacuum sensors connected to alarms at both helms
Fuel fillers to port and starboard
High-capacity duplex fuel filters/water traps with integral changeover valves and water sensors connected to alarms at both helm positions
Remote fuel isolation controls in cockpit locker for main engines and generators
Dual station fuel gauges on helm consoles with additional back up mechanical sight gauge fitted to all tanks and mounted in engine room
Water system
Water tanks totalling 285 gal/343 US gal/1,295l plus 45 gal/54 US gal/205l hot water calorifier
240v immersion heater
Automatic water pump with filter
Main circuit breaker at switch panel
Water level gauge
Deck filler
Electric freshwater toilet system with 132 gal/158 US gal/600l holding tank, content gauge and low noise electric overboard discharge, with macerator backup system as well as dockside discharge system
Air conditioning
Air conditioning/heating reverse cycle (204,000 BTU fan capacity with 144,000 BTU chiller capacity) suitable for temperatures to 40oC (tropical)
Windscreen demist facility
Outlets in all areas
Bilge pumps
Automatic/manual override electric bilge pumps in engine room (2), rudder area and forward accommodation (8 in all)
High-capacity manual bilge pump with valve system and suction points in same areas
Electric bilge pumps have controls and warning lights at main helm and warning light with audible alarm at flybridge helm
Extinguishers / fire control systems
Automatic/manual override fire extinguishers in engine room with warning system at both helm positions
Hand operated fire extinguishers (9) in owner’s stateroom, forward stateroom, port and starboard guest cabins, crew cabins (2), crew mess, galley and wheelhouse
Other standard equipment
Ensign staff
Fenders (8)
Mooring warps (4)
Boathook
First Aid kit
Tool kit
Owner’s manual and engine manual
Quilted bedspreads supplied to all cabins (except crew cabin)
Set of towels (8 large, 8 hand)
Complete set of Lucrezia crystal glassware (8 settings consisting of tumbler, highball and wine glasses)
Set of Sous Le Soleil crockery (8 settings consisting of plate, cake plate, dessert plate, bowl, cup & saucer)
Set of stainless steel cutlery (8 settings of David Mellor “Paris” cutlery 7 pieces)
Ship’s document case
Anchor winch back up handle
Finishes
Teak-laid decks to transom platform, cockpit deck, steps to side decks, side decks and foredeck walkthrough, steps to flybridge and flybridge
Timber-laid floor (V groove planked) to galley and helm
Furniture in Rovere oak with satin finish as standard. Optional finishes include ash or silver oak with a satin finish or walnut wood in a satin or gloss finish
Marble/granite/quartz floors in all bathroom suites
Thermoformed solid surface wash basins and vanity tops in all guest bathrooms
Galley counter top in granite/quartz
Choice of high-quality carpet and fabrics from extensive range
Curtains, blinds or sunscreens to all windows and portholes (excludes pantograph doors and wheelhouse)
Crew cabins have fitted carpet, crew bathroom floor, vanity top and counter tops in solid surface
Non-slip flooring to crew mess
